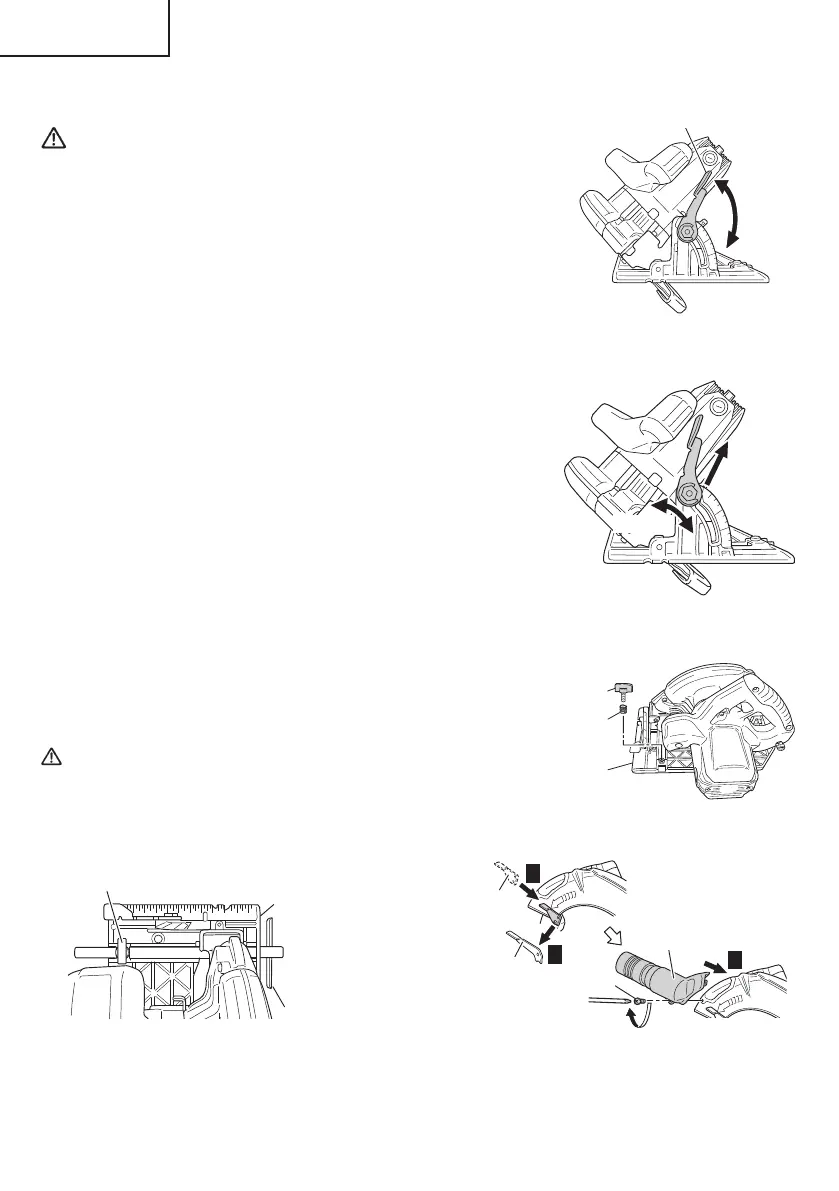

2. Adjusting the angle of inclination
WARNING:
If the lever (A) is loose, injury can result. Tighten it securely
after adjustment.
You can incline saw blade from 0˚ to a maximum angle of 55˚ in
relation to the base.
As shown in Fig. 8 by loosing the lever (A) on the bevel scale, the
saw blade may be inclined to an angle of 45˚ in relation to the base.
If you use inclination angle of over 45˚, as shown in Fig. 9 move the
lever (A) to outside, the saw blade may be inclined to a maximum
angle of 55˚ in relation to the base.
Always ensure that the lever (A) is thoroughly tightened after making
the desired adjustment.
3. Regulating the guide (Rip fence) (Fig. 10, 11)
..............................................Optional Accessory
Install the wing bolt (B) and lock spring on the base. Insert the guide
into the base, move it left and right and adjust the cutting position.
Tighten the wing bolt (B) and fi x the guide. The guide can be installed
either from the left or the right side of the main body.
4. Using the dust collector ......................... Optional Accessory
To use the vacuum cleaner to gather up saw dust, attach the suction
hose to the dust collector which is attached to the main unit by M4
screw. When attaching the dust collector always be sure to change
the lever to the short type at this same time (Fig. 12).
CAUTION:
Continuing to use the lever that was attached to the main unit
prior to shipping from the factory will cause it to bind on the
dust collector and will interfere with the lower guard operation.
2
3
1
Fig. 12
Lower guard lever
(short type)
Lower guard lever
M4 screw
Dust collector
Fig. 11
Wing Bolt (B), Lock Spring
Base
Guide
(Rip Fence)
Fig. 8
0˚ – 45˚
Lever (A)
Fig. 9
45˚ – 55˚
Fig. 10
Base
Wing Bolt (B)
Lock
Spring
12
English
