8. Advance saw along the cutting line up to the corner.
9. Release trigger and allow blade to stop completely before withdrawing the blade from the work piece.
Never under any circumstances pull the saw backwards while the blade is in motion, as kickback may result.
10. Use a jig saw or hand saw to cut the corners out clean.
11. When starting each new cut, repeat as above.
USING THE CORD HOLDER
By threading the cord through the cord holder, the cord can be set to be drawn
in a side direction. (See Fig. 15)
MOUNTING AND DISMOUNTING THE SAW BLADE
WARNING:
To avoid serious accident ensure the switch is in the OFF position, and disconnect the plug from the
receptacle.
1. Dismounting the saw blade
(1) Set the cutting volume at maximum, and place the Circular Saw as shown in Fig. 16.
(2) Depress the lock lever, lock the spindle, and remove the hexagonal- ange bolt and washer (B) with the Hex. Bar
wrench.
(3) While holding the lever to keep the lower guard fully retracted into
the blade cover, remove the saw blade. (Fig. 17)
2. Mounting the saw blade
(1) Thoroughly remove any sawdust which has accumulated on the
spindle, bolt and washers.
(2) For mounting saw blade, the concave sides of both washers (A) and
(B) must be tted to the saw blade sides. Mount the saw blade on
the spindle, and nally a x washer (B) (See Fig. 18)
(3) To assure proper rotation direction of the saw blade, the arrow
direction on the saw blade must coincide with the arrow direction
on the blade cover.
(4) Using the ngers, tighten the hexagonal bolt retaining the saw
blade as much as possible. Then depress the lock lever, lock the
spindle, and thoroughly tighten the bolt.
(5) Con rm that the lock lever is in the original position.

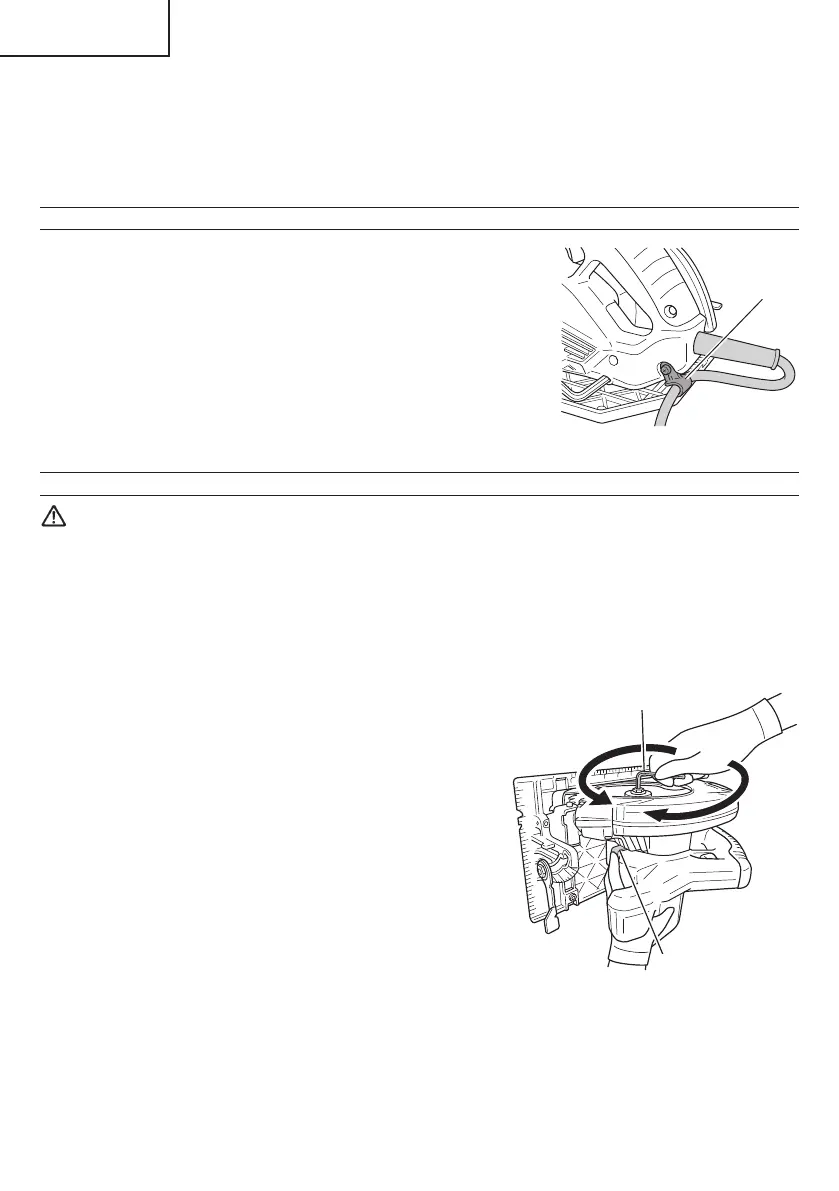

Fig. 15
Cord holder
Fig. 16
Lock Lever
Wrench
Loosen
Tighten
14
English
00BookC7SB3USmetabo.indb1400BookC7SB3USmetabo.indb14 2018/03/2217:56:252018/03/2217:56:25
