FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance
of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety
instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own
power tool.

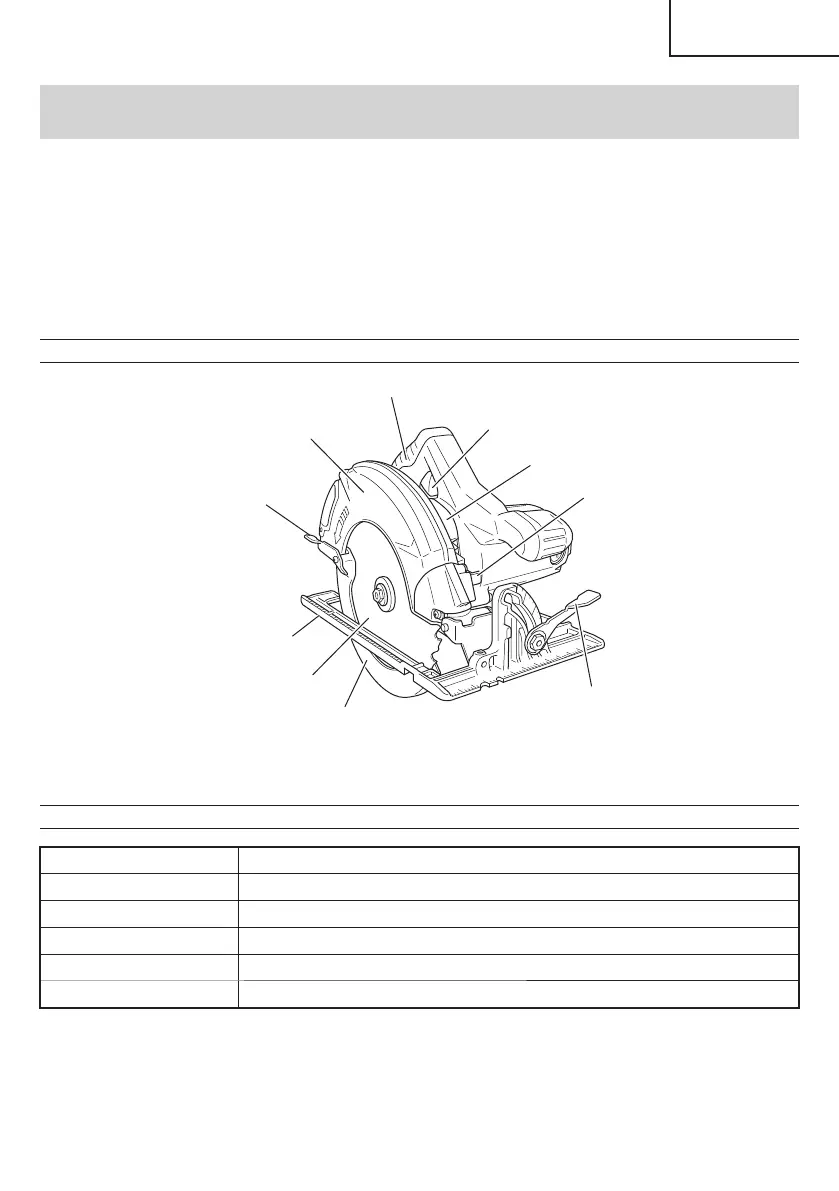

NAME OF PARTS
Fig. 5
Handle
Switch
Gear Cover
Lock Lever
Lever (A)
Lower Guard
Saw Blade
Base
Lever
(Retracting Handle)
Blade Cover
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase 120 V AC 60 Hz, 120 V DC
Max. Cutting Depth 2-7/16" (62 mm)
Current 15 A
No-Load Speed 6000/min.
Weight (without cord) 9.5 lbs (4.3 kg)
