Metabo Basic 250-24 W - Component Overview and Standard Delivery

7
ENGLISH

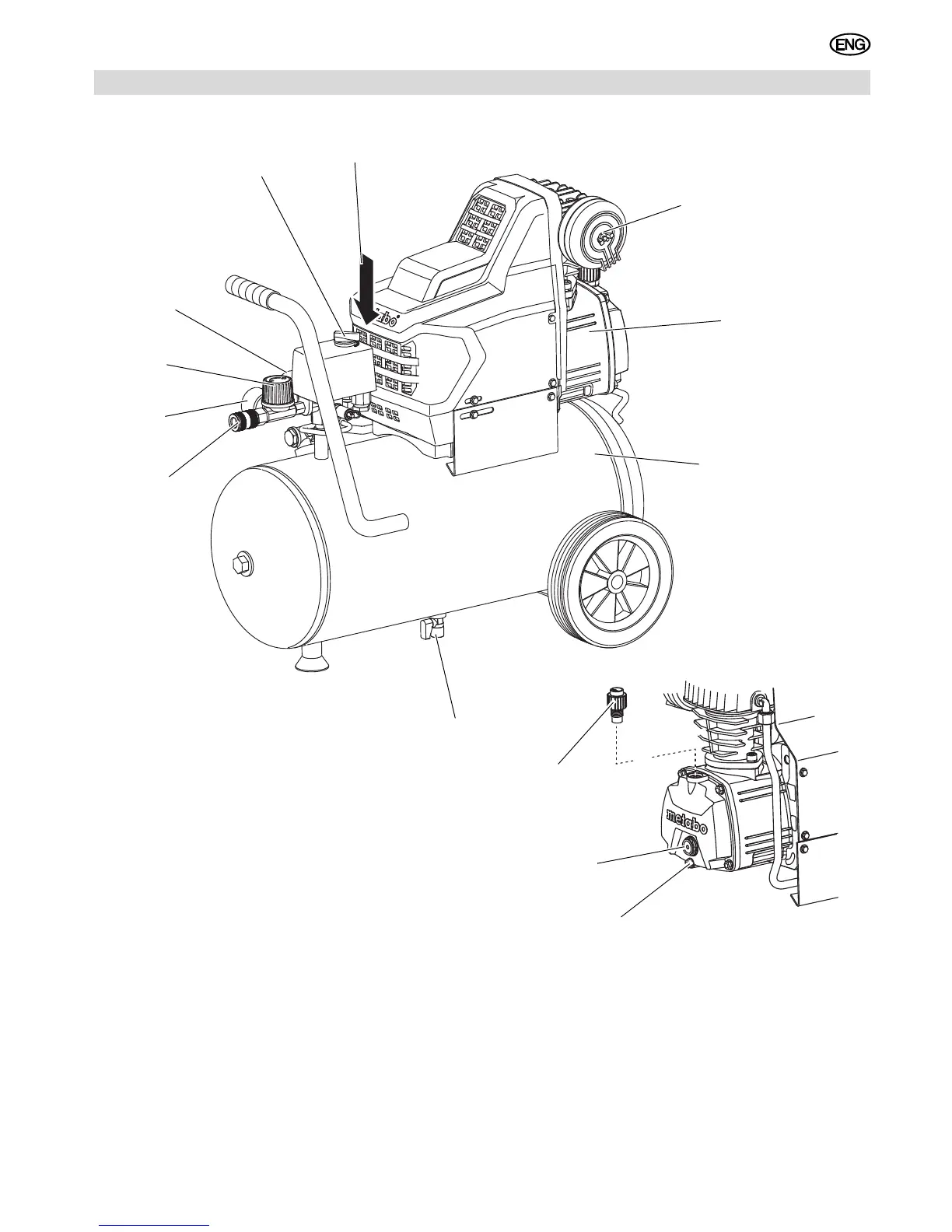

1. Component Overview / Standard Delivery
13
11
12
1
2
3
6
7
5
9
8
4
10
1 Air intake filter housing
2 Compressor pump
3 Pressure vessel
4 Condensate drain cock
5 Compressed air outlet (quick
coupler), air regulated
6 Outlet pressure gauge
7 Pressure regulator
8 Tank pressure gauge
9 On/Off switch
10 Safety valve
11 Oil drain plug
12 Oil sight glass
13 Oil drain plug screw
