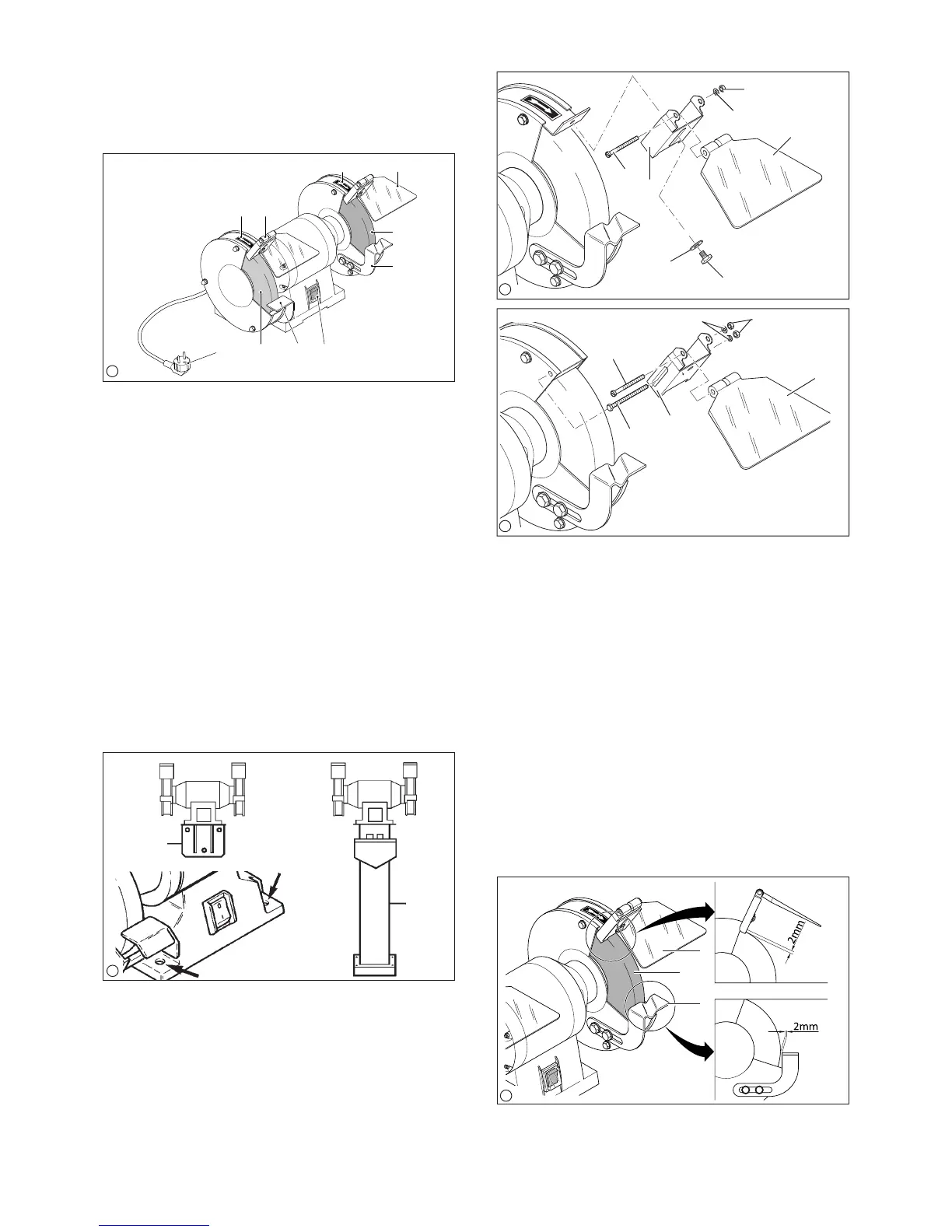

Machine Components
Comment: Several constructive details distinguish
these double grinding machines. The
handling, described in the following, is in
principle the same with all machines.
10
9
2
9 Wall bracket stock-no. 090 000 1150
10 Pedestal support base stock-no. 090 000 1134
Machine Installation
The grinding machine should be fi rmly mounted in a
suitable location. For mounting on a fi rm and fl at base
4 holes are provided in the machine's base (see arrows
in fi g. 2). The height should be chosen so that the tool
rest is at about elbow height. Ensure a power outlet is
available at a distance of approx. 100 – 150 cm.
Metabo can supply fl oor or wall mounted supports (see
fi g. 2) fulfi lling the requirements for stability and correct
working height.
12
3
5 6
5 6
7
8
4
1
Installation of Spark Protection Assembly
For reasons of packing the spark protection assembly
is not factory installed and needs to be user installed
before operation of the machine. Fig. 3 shows the com-
ponents of the spark protection assembly and how they
are installed to the grinding wheel cover on the right
hand side.
1 Switch ON/OFF
2 Tool rest, left
3 Grinding wheel, left
4 Power cable with plug
5 Indicator for direction of rotation (sticker)
6 Spark protection assembly
7 Grinding wheel, right
8 Tool rest, right
A adjusting guard plate
B hexagon head bolt M 4 x 55
C lock washer
D hexagon nut M 4
E spark glass guard
F slotted screws
G disk
H hexagon head screw M 5 x 20
1 Grinding wheel
2 Tool rest
3 Spark arrester bracket
Setting of Tool Rest and Spark Arrester
Bracket
The tool rest and spark protection assembly's spark
arrester bracket have to be set from time to time to
compensate for grinding wheel wear. The gap between
tool rest and wheel should not be more than 2 mm and
not more than 2 mm between wheel and spark arrester
bracket.
3
D
C
E
H
G
A
F
3
F
B
A
C
D
E
3
2
4
1
Installation to the left hand side wheel cover is similar.
