EN
Guidelines for installation
Technicians

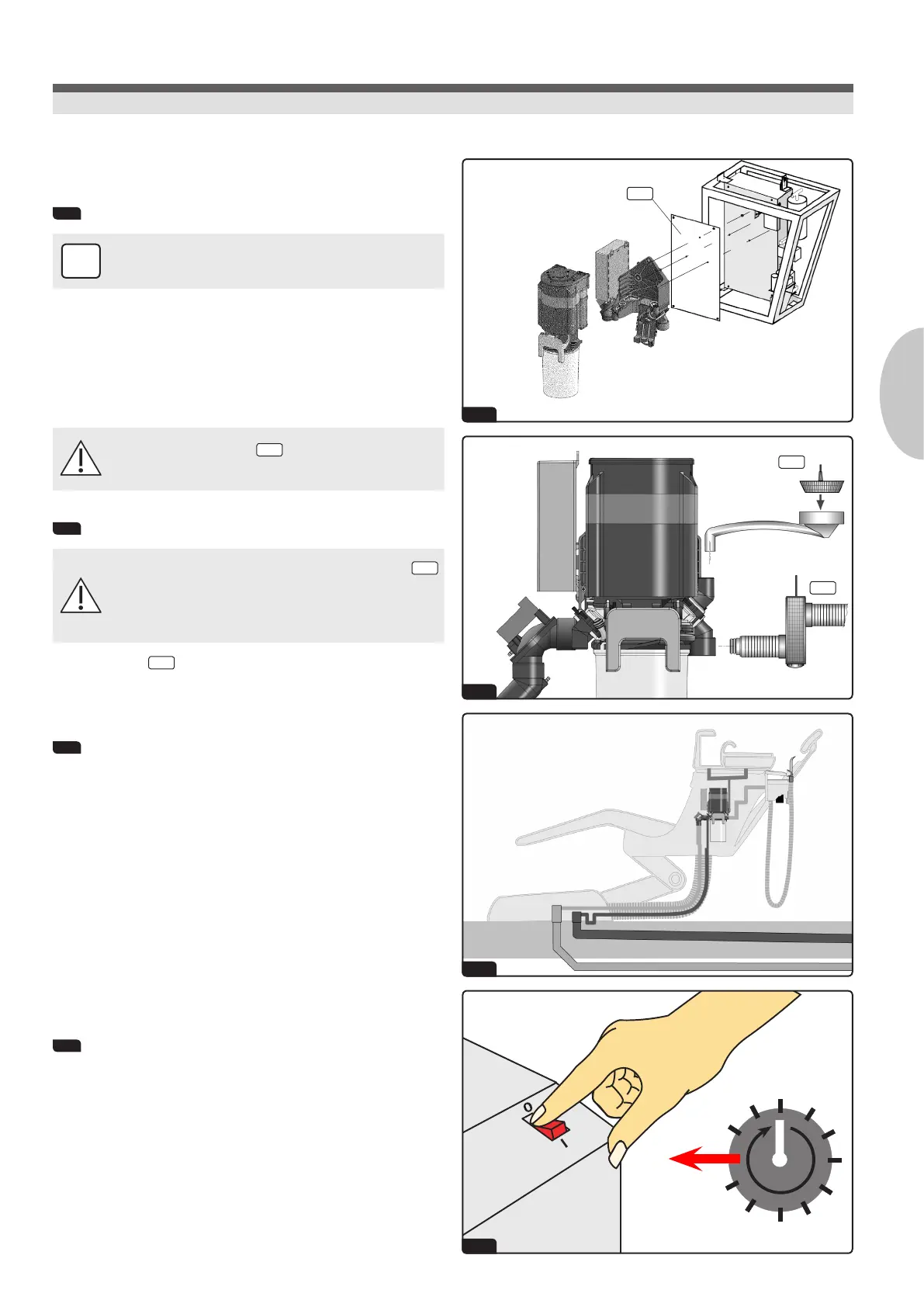

10. Guidelines for installation
9
Fitting
i
The following space requirement must be met:
H x W x D = 350 mm x 215 mm x 120 mm
To reduce vibration, the device must only be tted to the supporting parts
of the treatment unit through the 3 holes in module 1 (do not remove
the swinging ttings!). The amalgam separator should be able to swing
freely, without any contact with any other part of the treatment unit
(cables, hoses, lids, etc.).
An electrical earth plate (
9.1
) must be tted behind
module 1 if the background is electrically conducting!
10
Prelter
If not already installed in the tube holder, a prelter
10.1
with a mesh width of max. 1 mm must be installed on the
suction side of the separator, in a place which is easily
accessible for the practice personnel.
The coarse lter
10.2
tted in the outlet of the spittoon may have a
maximum mesh width of 3 mm, and must not be removed while the
amalgam separator is in operation.
11
Hose connections
The hose connections leading to the COMPACT Dynamic must be kept
as short as possible to prevent pre-sedimentation.
Dirty dental hoses must be replaced during installation and must be
disposed of through DENTAL ECO SERVICE.
The amalgam separator must be connected to the waste water drain.
The waste water must be able to run freely so that the effectiveness of
the separator is not affected by any build-up of backwater.
Water driven saliva ejectors should not be used due to excessive water
consumption.
The rinsing of the spittoon bowl should be limited by a timer or special
button to a maximum of 30 seconds or max. water ow rate of 3 l/min
to allow a stop of the centrifuge.
12
Main switch
Please ensure that the amalgam separator is switched off at least once per
working day in order to measure the lling height. The connection of the
24 V AC power supply must take place after the device’s or the surgery’s
main switch.
