TROUBLESHOOTING GUIDE: TIP CARTRIDGE WON’T HEAT

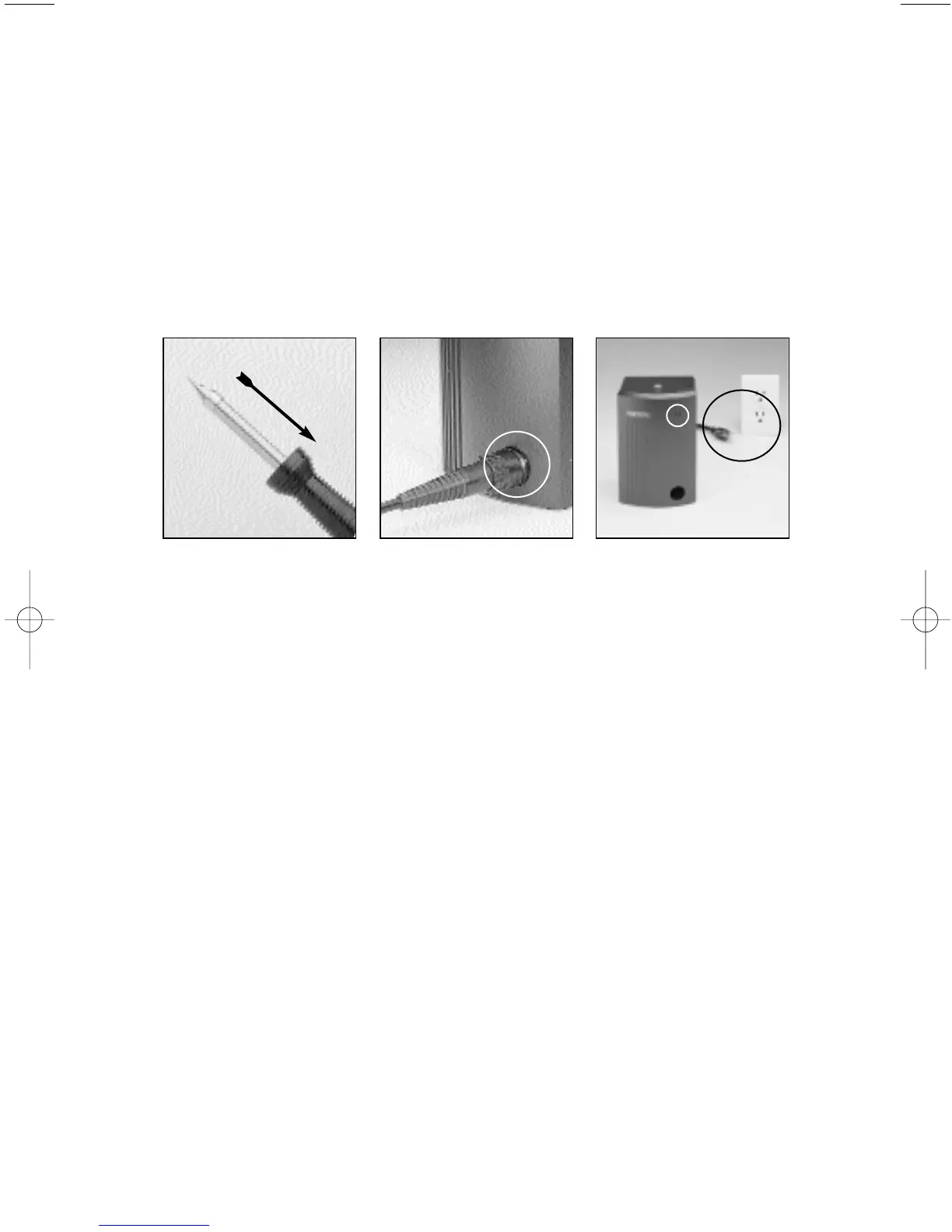

1. Be sure the tip cartridge is pushed all the way into the handle.
2. Check that the handle cord connector is tightened securely to the power supply
output connector.
3. Check the power supply “On/Off” indicator light. If it is not lit, make sure the 3-wire
power supply cord is properly connected into the wall outlet and the power supply.
4. If the cartridge still won’t heat, try a different cartridge. If the new cartridge heats,
discard or return (if in warranty) the bad cartridge.
If the above steps do not result in proper performance, call Metcal Customer Care.
SYSTEM SPECIFICATIONS
Power Supply
Tip-to-Ground Potential < 2 mV True RMS, 50-500 Hz
Tip-to-Ground Resistance < 2 ohms DC, unit on
Idle Temperature Stability ±2°F (±1.1°C) Still air
Ambient Operating Temp. 50-104°F (10-40°C)
Maximum Enclosure Temp. 150°F (65°C)
Input Line Voltage 200-260 VAC
Input Line Frequency 45-70 Hz
Output Power 35 Watts maximum @ 72°F (22°C) ambient temperature
Output Frequency 470 KHz
Length x Width x Height 4.25” x 3/5” x 6.7” (10.8 x 8.9 x 17.0 cm)
Weight (total unit) 5 lbs (2.3 kg)
Power Cord (3 wire) 6 ft. (183 cm) - 18/3 SJT
ESD Materials 10
5
- 10
9
ohm/square as per ASTM D257
Handpiece
Weight (handle) 2 ounces (57 grams)
Handle Cord Assembly 4 ft. (122 cm) - carbon loaded silicone
ESD Materials 10
5
- 10
9
ohm/square as per ASTM D257
Standards Compliance
MIL-STD-2000, MIL-STD-1686, MIL-STD-45743E, WS-6536D and E
Agency Approvals
FCC Approval, ETL Listed, CSA Approved
