Aroha Sink Mixer
01-9229
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
JUNE 2012
Installation Guide
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
Installation
Tip: Install product on bench before
connecting second hose to mixer.

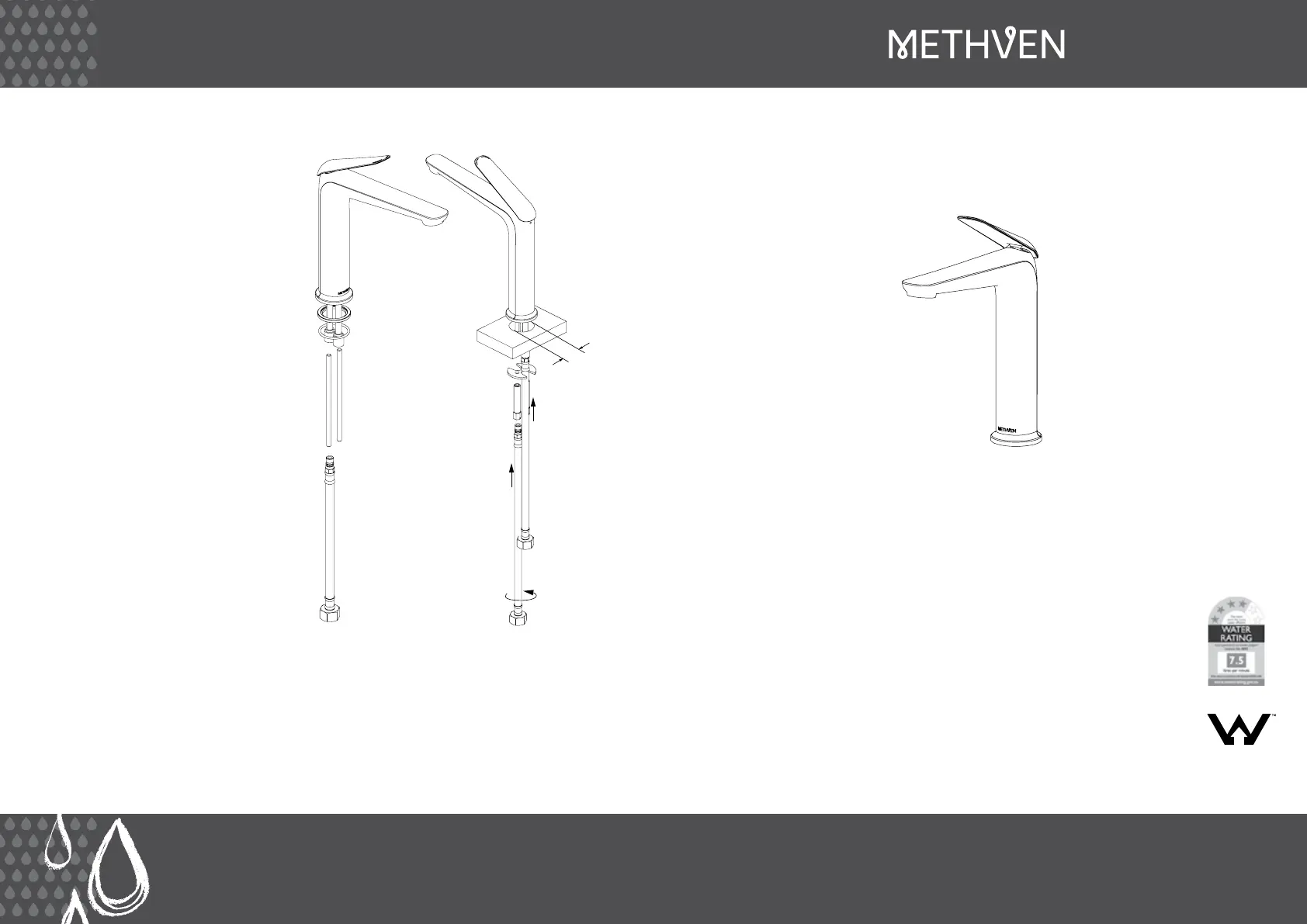

1. Cut a single 35mm diameter hole into the
mounting surface.
2. Insert o-ring into the groove in the
underside of the base ring and fit to
base of mixer.
3. Feed the mixer’s tails and the one
fitted hose through the hole cut in the
mounting surface.
4. Screw in all-thread studs and second
supply hose into the base of the mixer.
5. Fit triangular spacer (optional)
followed by clamp plate.
6. Secure in place with brass mounting
nuts.
7. Connect the flexible hoses to the hot
and cold supplies (Hot on left, Cold on
right).
Note: It is recommended that the in-
line filter washers supplied are fitted
during this connection.
Cold
Hot
Ø35mm min
Ø38mm max
Hot hose is
marked with
RED indicator
