Please read all of the instructions be-
fore installation.
General
Methven recommends this product
is installed by a competent person in
compliance with all relevant regional
regulations.
After installation all connenctions must
be checked for leaks.
All outlets used primarily for personal
hygiene shall deliver water at a safe
temperature as per regional regulations.
It is the responsibility of the in-
staller to ensure a waterproof seal
is achieved.
1) Use a 6mm drill bit to drill a hole in the wall at the desired height, drill a
second hole vertically lower at a recommended height of 550mm. In certain
2) Assemble the handset slider, soap dish and hose retainer on to the rail
ensuring button is facing upward. Attach both rail end assemblies.
3) Ensuring the handset slider button is facing upwards as shown in the illustra-
tion, adjust the two rail end assemblies to match the position of the wall brack-

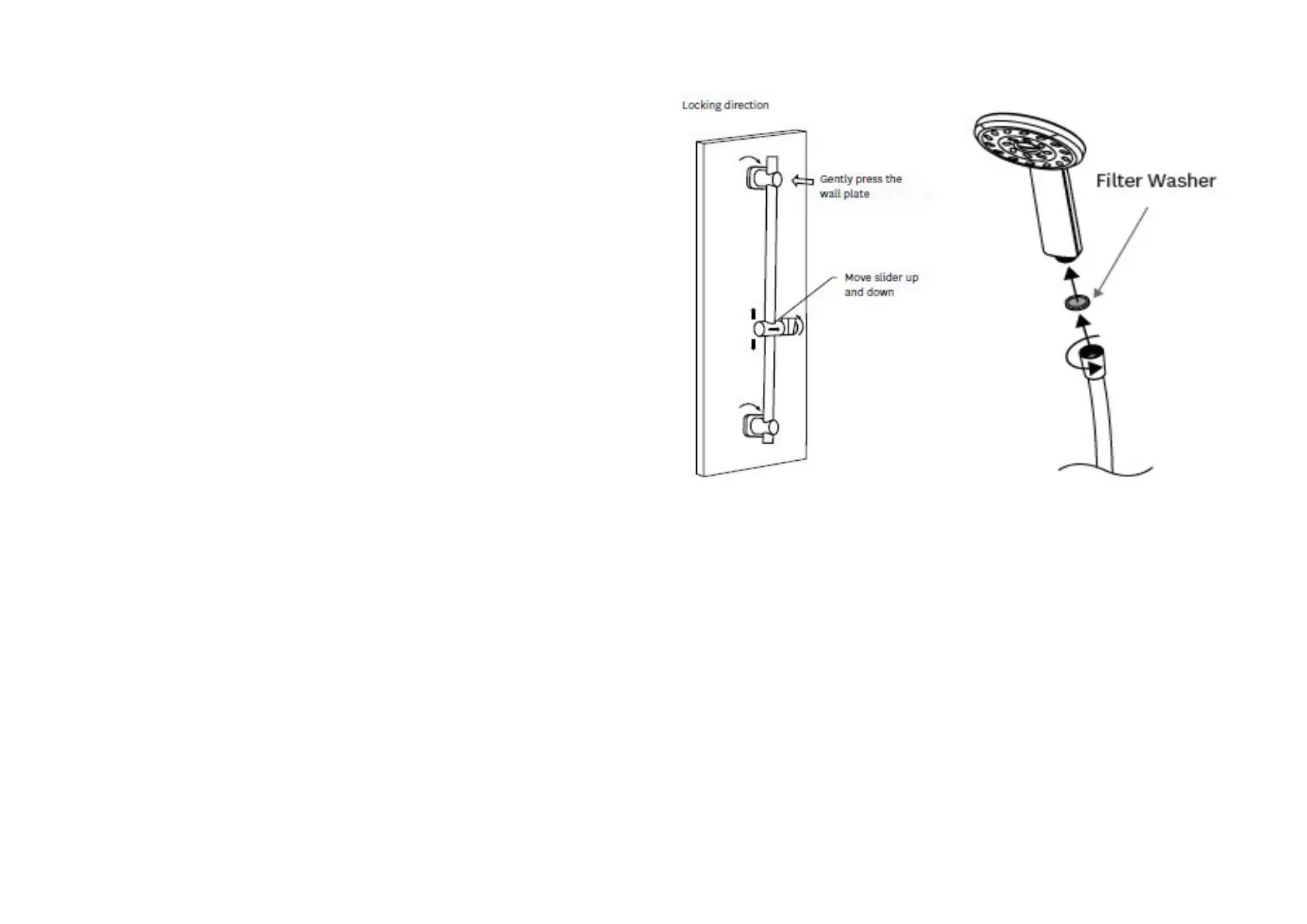

4) Gently press the rail end assemblies onto the wall brackets, until the rail
ends touch the wall. Turn both wall covers clockwise into the locking position,
5) Insert flat washer into the shower hose before screwing to the handset. Con-
nect the other end of the shower to the shower outlet.
Testing Method
