Installation Instructions
1) Prepare the Hot and Cold supply
pipes at 150mm centres.
2) Ensure the holes for the pipes are not
made too big as this will affect drilling of
the screw holes for the mounting brackets.
3) Ensure that there is approximately
22mm of pipework left exposed proud
of the finished tiled wall to establish
the correct installation connection.

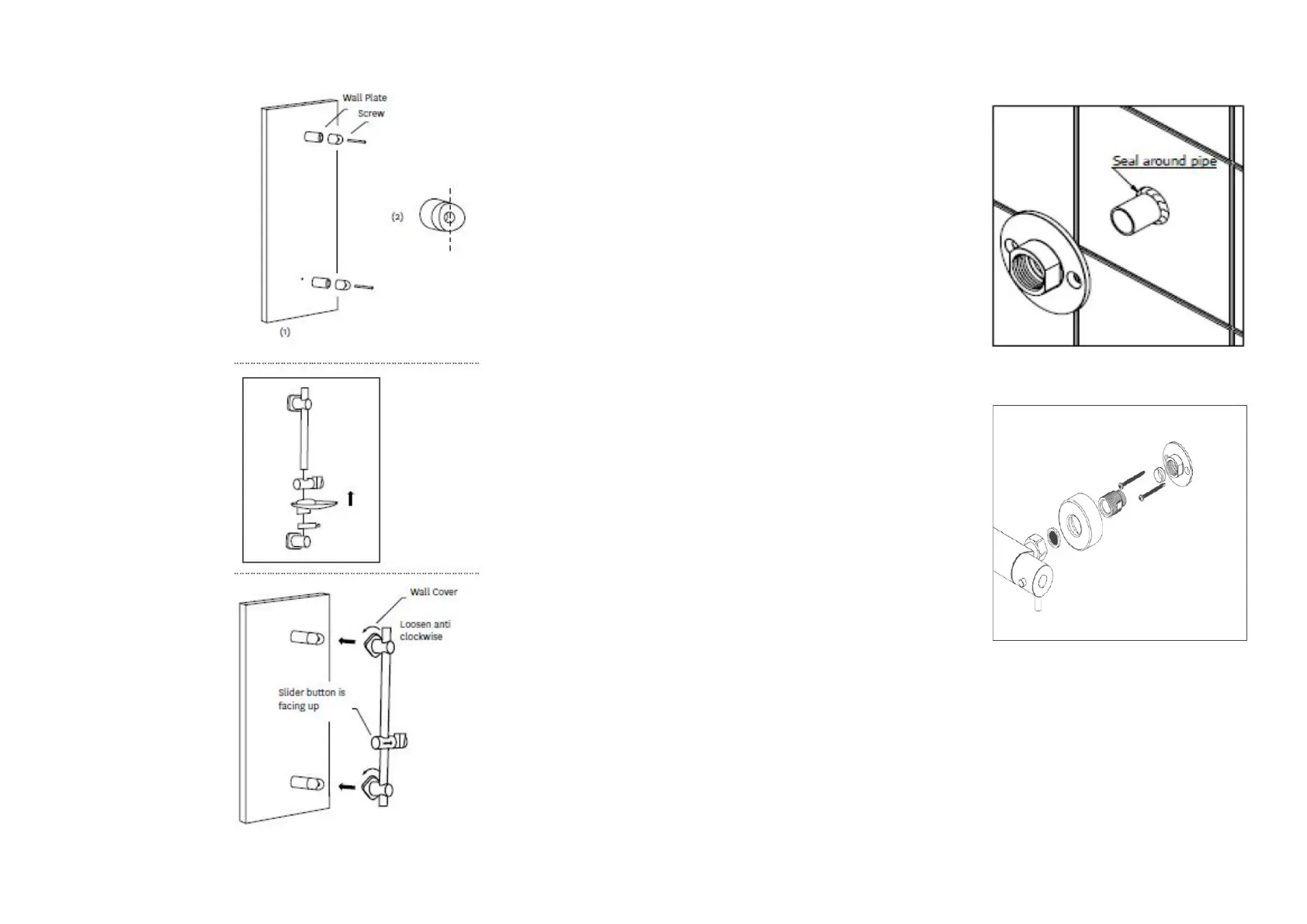

4) Apply an appropriate amount of
sealant between the pipe and wall
lining to create a watertight seal.
5) Place the mounting plate over the
pipework.
6) Take one of the threaded connectors,
slide the connector over the pipework and
loosely fit the threaded connector into the
mounting bracket. This will ensure that
the pipework is central to the mounting
bracket.
7) Using the mounting bracket as a tem-
plate, mark the positions of the holes to
be drilled.
8) Remove the threaded connector, slide the
mounting bracket off the pipework.
9) Drill and plug the wall in position as previously
marked. Note: Ensure you use the correct type
of wall plugs to suit your particular installation
conditions.
