95-3314G
2013 Chevy Malibu
(with monochrome screen)

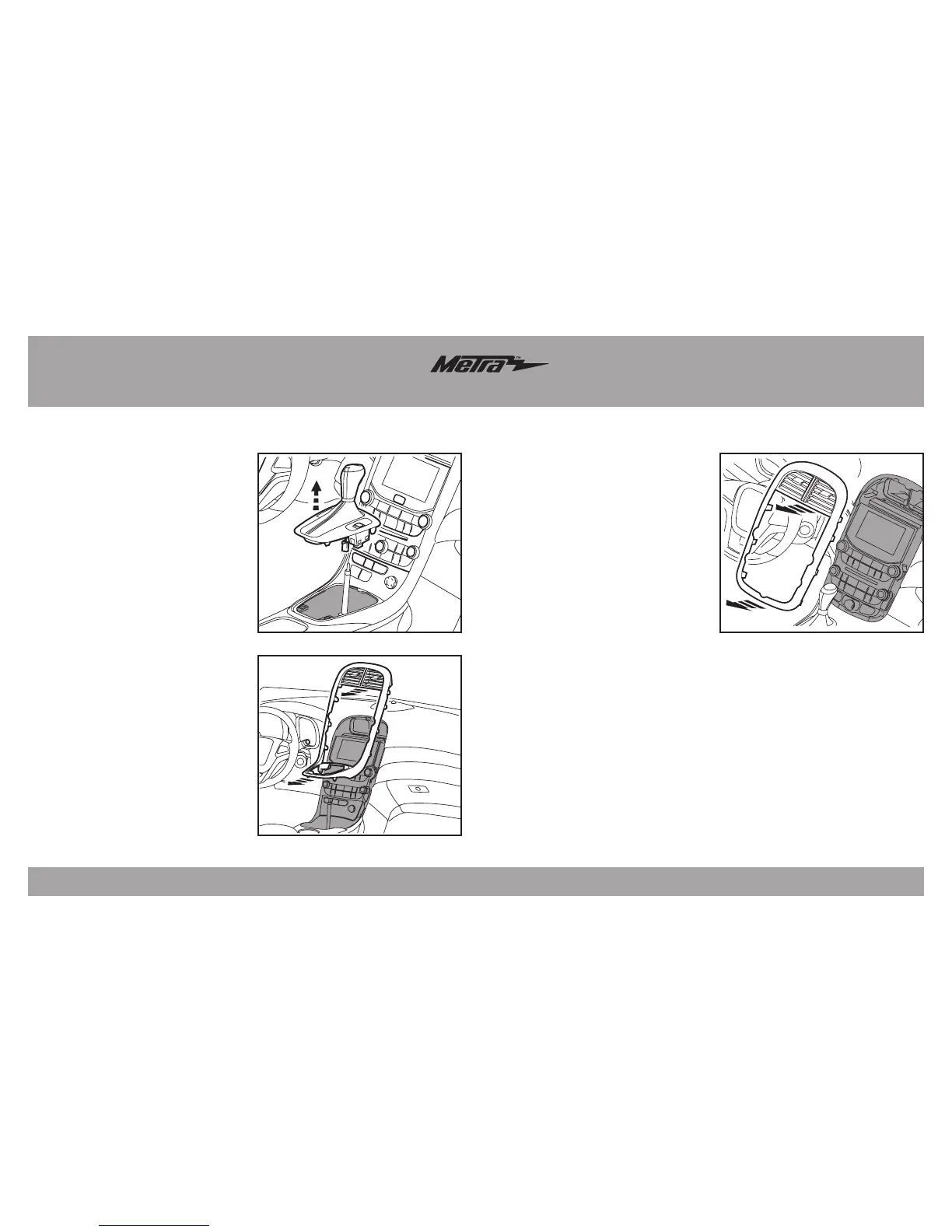

1. Unclip and lift up the panel
surrounding the shifter. (Figure A)
2. Unplug the two pin connector to
the shift knob then pull up on the
shift knob to remove it and the
panel surrounding it. (Figure A)
3. Unclip and remove the trim panel
surrounding the center stack
including the a/c vents. (Figure B)
4. Remove (12) 9/32” screws
securing everything in the center
of the dash then unplug and
remove all of the components.
5. Remove (4) 9/32” screws securing
the radio chassis.
Continue to kit assembly
Dash Disassembly
2014-up Chevy Malibu
(with monochrome screen)
1. Unclip and remove the trim panel
surrounding the center stack
including the a/c vents. (Figure A)
2. Remove (12) 9/32” screws
securing everything in the center
of the dash then unplug and
remove all of the components.
3. Remove (4) 9/32” screws securing
the radio chassis.
Continue to kit assembly
(Figure A) (Figure A)
(Figure B)
