Metra Electronics 95-7815B - Kit Assembly; ISO DDIN Radio Provision

REV. 7/11/2017 INST95-7815B
7

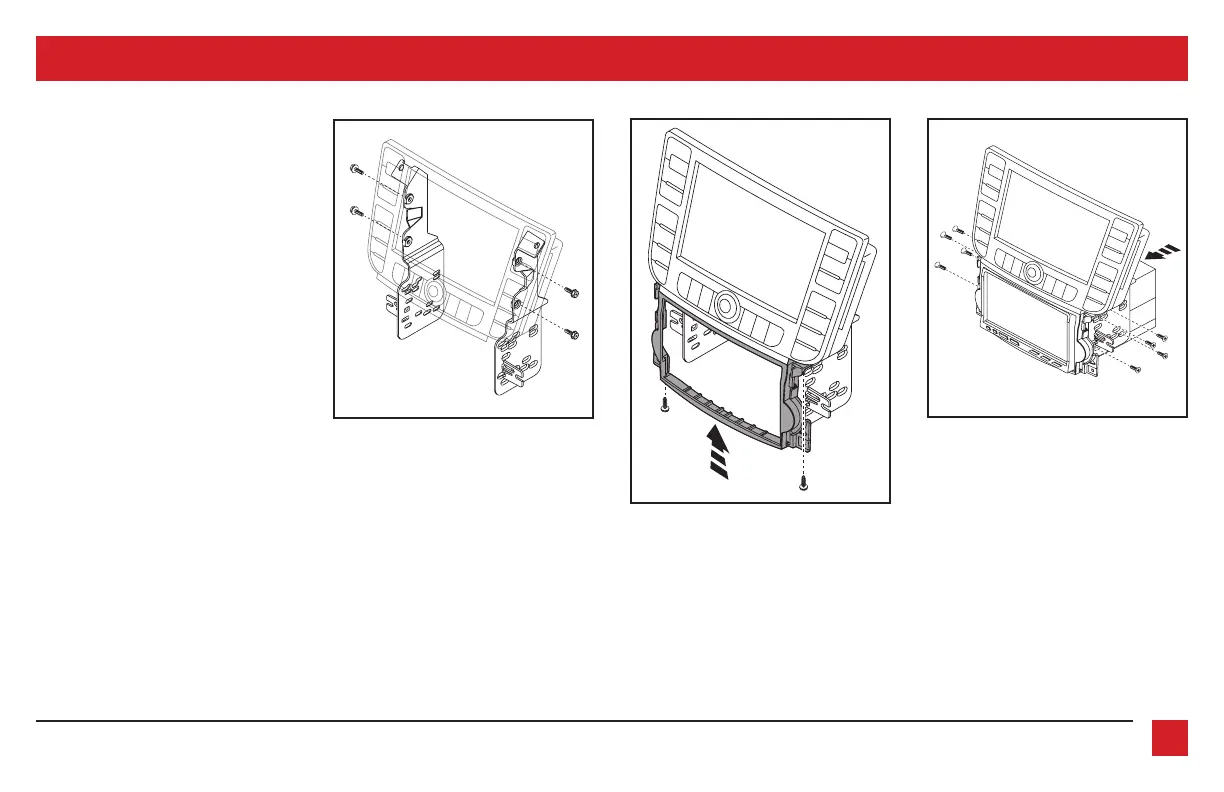

(Figure B)
(Figure A)
ISO DDIN radio provision
1. Attach the radio brackets to the factory
climate controls using the factory
hardware. (Figure A)
2. Attach the radio trim panel to the
bottom of the factory climate controls
using the factory hardware. (Figure B)
3. Slide the radio into the bracket/panel
assembly and secure it using the screws
supplied with the radio. (Figure C)
4. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio and climate controls. Metra
recommends using the proper mating
adapter from Metra and/or AXXESS.
Test the radio and climate controls for
proper operation.
5. Reassemble the dash in reverse order
of disassembly.
(Figure C)
