99-7314
2
1. Unclip the dash trim bezel.
2. Disconnect the clock and climate
control wiring, then remove the
bezel.
3. Remove (4) Phillips screws
securing the factory radio, then
unplug and remove the radio.
Continue to kit assembly

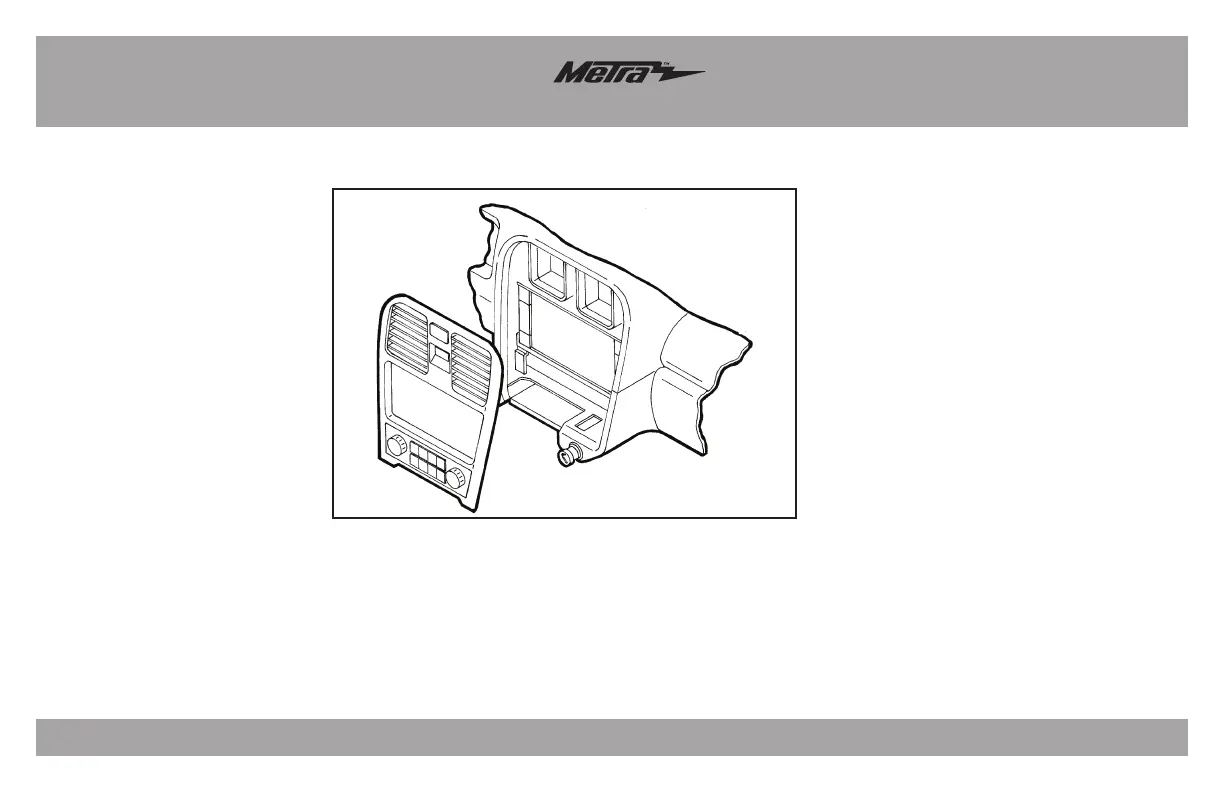

Dash Disassembly
(Figure A)
