Metra Electronics 99-8201 - General Vehicle Installation Steps; Step 3: Attach Pocket to Housing; Step 4: Attach Mounting Brackets

2
1
Disconnect the negative battery terminal to
prevent an accidental short circuit. Unclip and
remove the gear shifter trim bezel and remove (2)
Phillips screws exposed below the climate
controls. Pull off climate control knobs and
remove (2) Phillips screws exposed.
Unclip the
climate control/factory
radio trim bezel and
remove. Remove (4) 10mm screws securing the
factory head unit and disconnect the wiring.
Locate Radio Housing "C".
Using the
dotted lines
as a guide, cut and remove
all tabs on the Mounting Brackets
EXCEPT tabs "C". Skip to the
Ins
tallation Instructions for ALL
VEHICLES on
Page #2.
Locate Radio Housing "E".
Using the
dotted lines
as a guide, cut and remove
all tabs on the Mounting Brackets
EXCEPT tabs "E". Skip to the
Ins
tallation Instructions for ALL
VEHICLES on
Page #2.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove the
climate control knobs and (2) Phillips screws
exposed.
Unclip and remove the climate control
trim bezel.
Depress the side clips securing the
climate control panel and move the panel to
access (2) Phillips screws from the top of the
factory radio brackets. Remove the ashtray.
Unclip and remove the radio trim bezel. Remove
(2) Phillips screws from the bottom of the radio
brackets and disconnect the wiring.
1
1
TOYOTA Celica 2000-05 ALL VEHICLES
TOYOTA Echo 2000-05
3
4

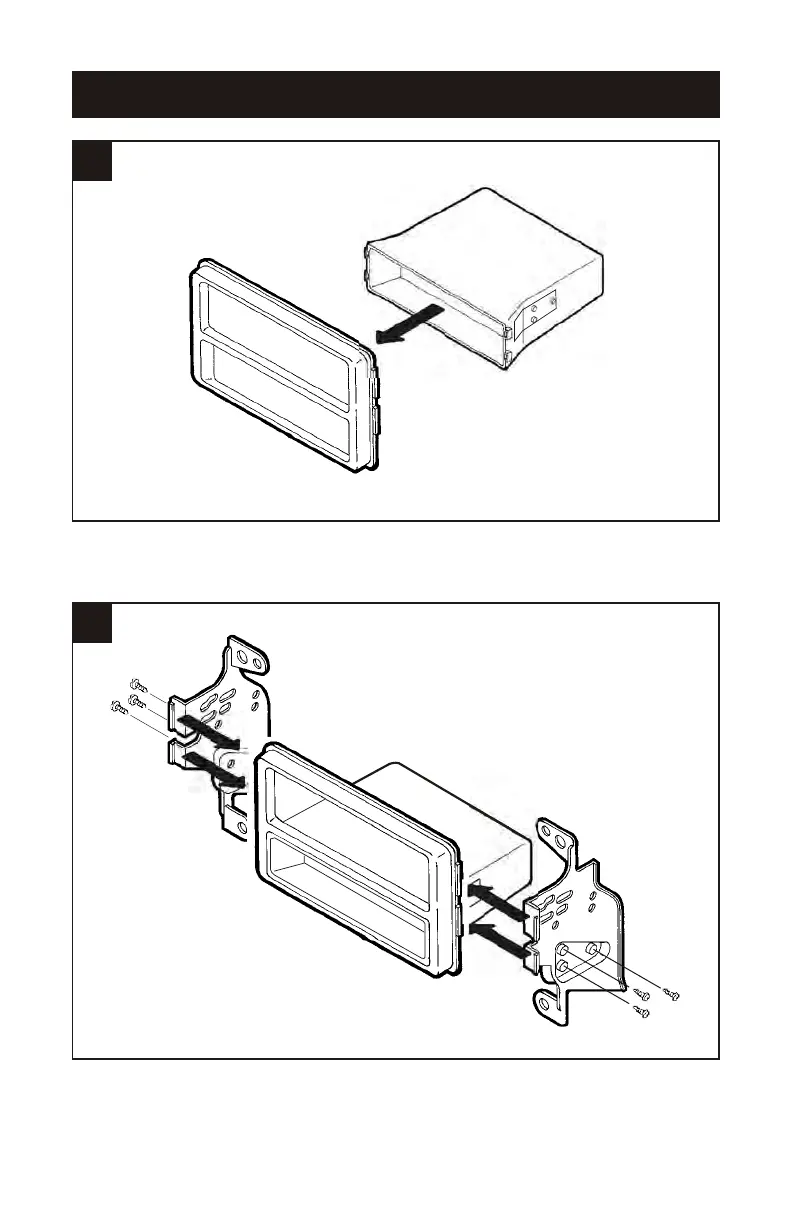

Snap the Pocket onto the back of the Radio Housing.
Attach the Mounting Brackets to the sides of the Radio Housing by inserting the slotted
Bracket tabs into the slotted Housing tabs. (Be sure the mounting bosses on the Brackets
align with the mounting bosses on the Pocket ). Mount the Brackets to the Pocket with (6) #6 x
¼" Phillips Flat-Head Screws.
2
2
"C"
"E"
"E"
"C"
CUT
CUT
CUT
CUT
CUT
