Line Tracer
6
External voltage on terminals Test signal generating mode
30 V ÷ 264 V, a.c., 50 Hz or 60 Hz
Active load
d.c. or < 30 V a.c. Internal source

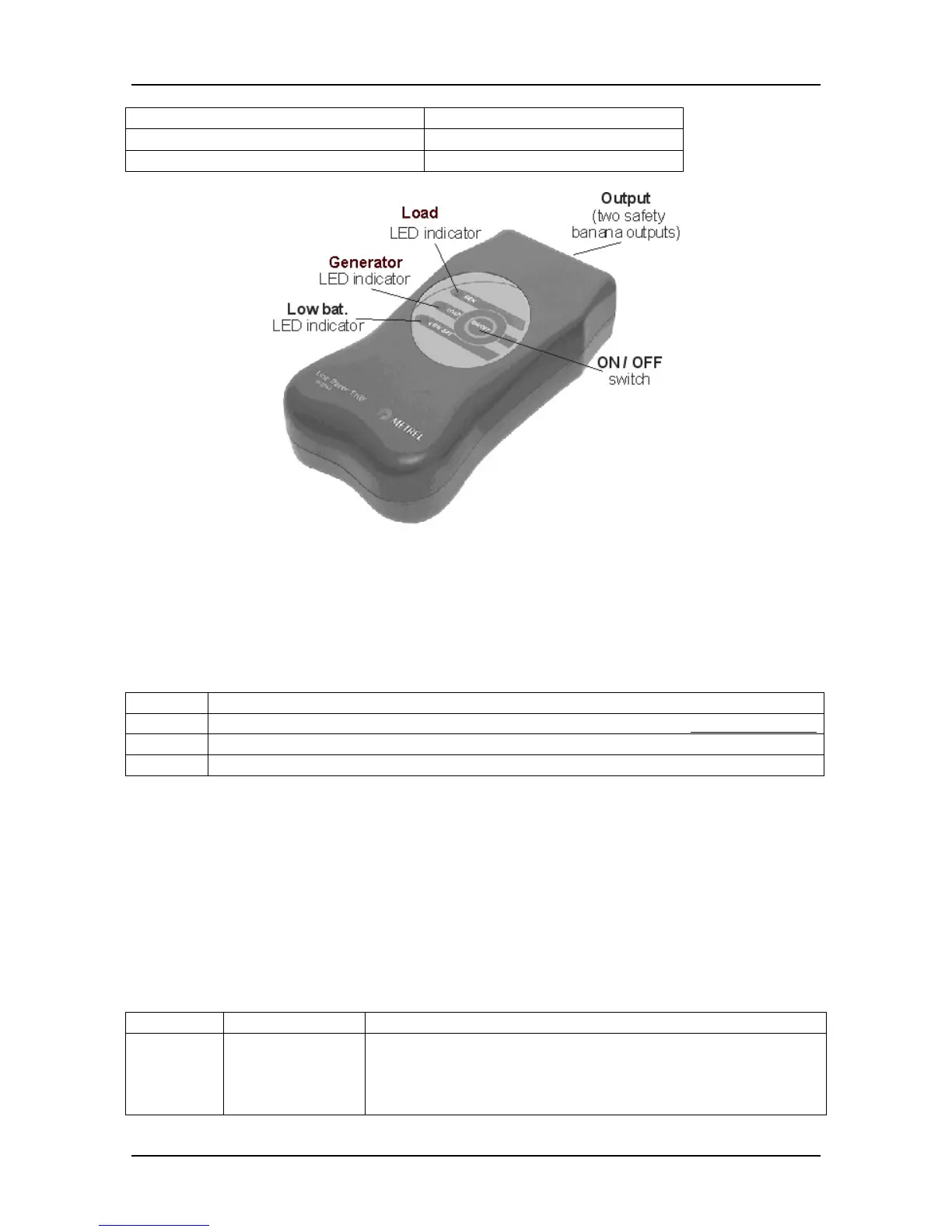

Fig. 1. Transmitter T10K
In both modes 10.6 kHz signal bursts are injected directly into the connected line or
coupled via an optional current clamp.
Led indicators on the
transmitter T10K have the following meaning:
All off
The transmitter is switched off
Low bat
The battery is empty and has to be replaced with a new one, see chapter 5.1.
LOAD
The transmitter generates signal as the active load
GEN
The internal source is activated
The transmitter T10K is supplied by 4 alkaline AA size (IEC LR 6) battery cells.
1.6. Receiver R10K
The highly sensitive hand-held Receiver R10K detects the injected signal around the
traced line. It generates sound and visual output relative to the signal intensity. Its
constructional designed points with its head detector to the maximum of detected signal
and the center of traced object. The slide switch of head detector enables the selection
between two built-in sensors.
Detector Sensor selector Recommendations
Inductive Slide switch
IND
- traced object is normally energized
- transmitter acts as active load
- loading current generates magnetic field around
conductor
