Metrix MX2034 User Manual

Doc# 100576 • REV C (Sept 2017) Page 27 of 42


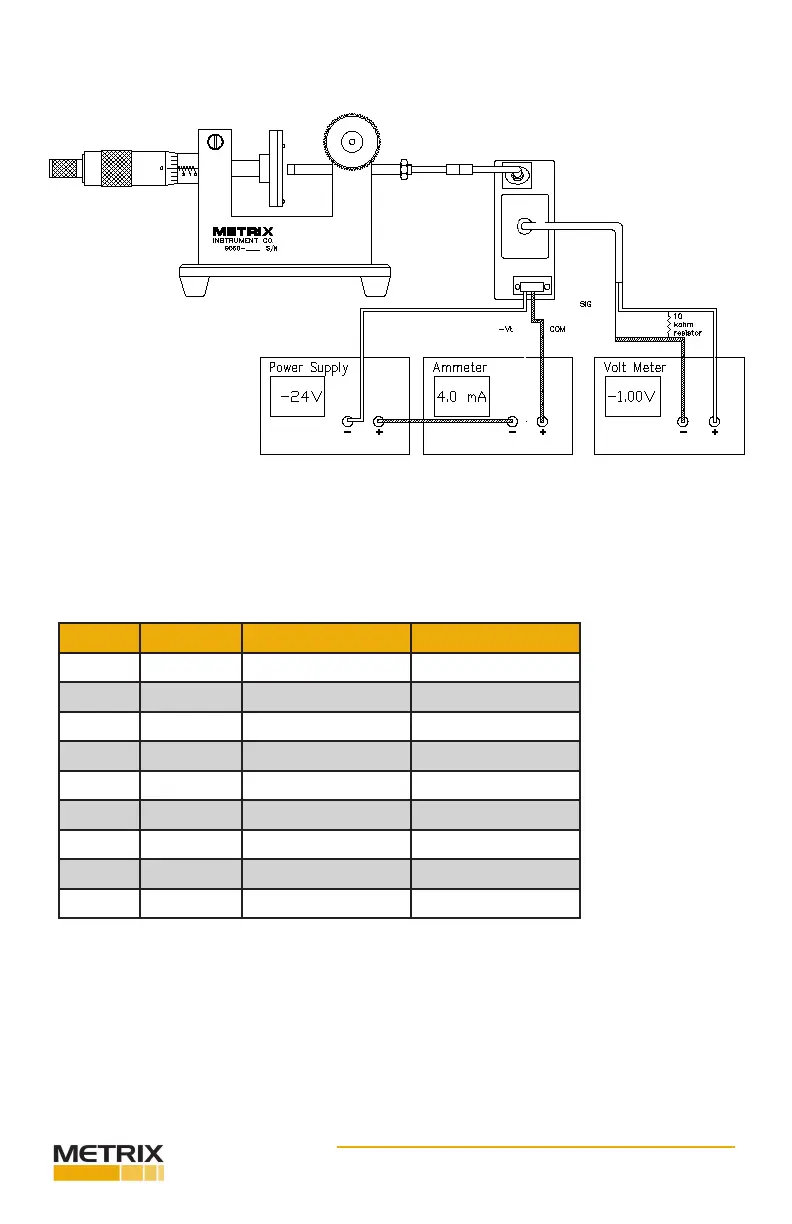

At each gap, measure and record the SIG Voltage from the volt meter and the current output
measured by the Ammeter.
mils mm SIG Voltage 
10 0.25
20 0.50
30 0.75
40 1.00
50 1.25
60 1.50
70 1.75
 2.00
 2.25
Use the following equaon to determine the expected current at each gap.
Current = 16 * (Gap-Boom Scale Gap) / (Top Scale Gap-Boom Scale Gap) + 4mA
