Metso MP1000 User Manual

SECTION 3 - M. FRAME, ADJ. RING, TRAMP REL. & CLRNG JACK ASSY
3-10
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL

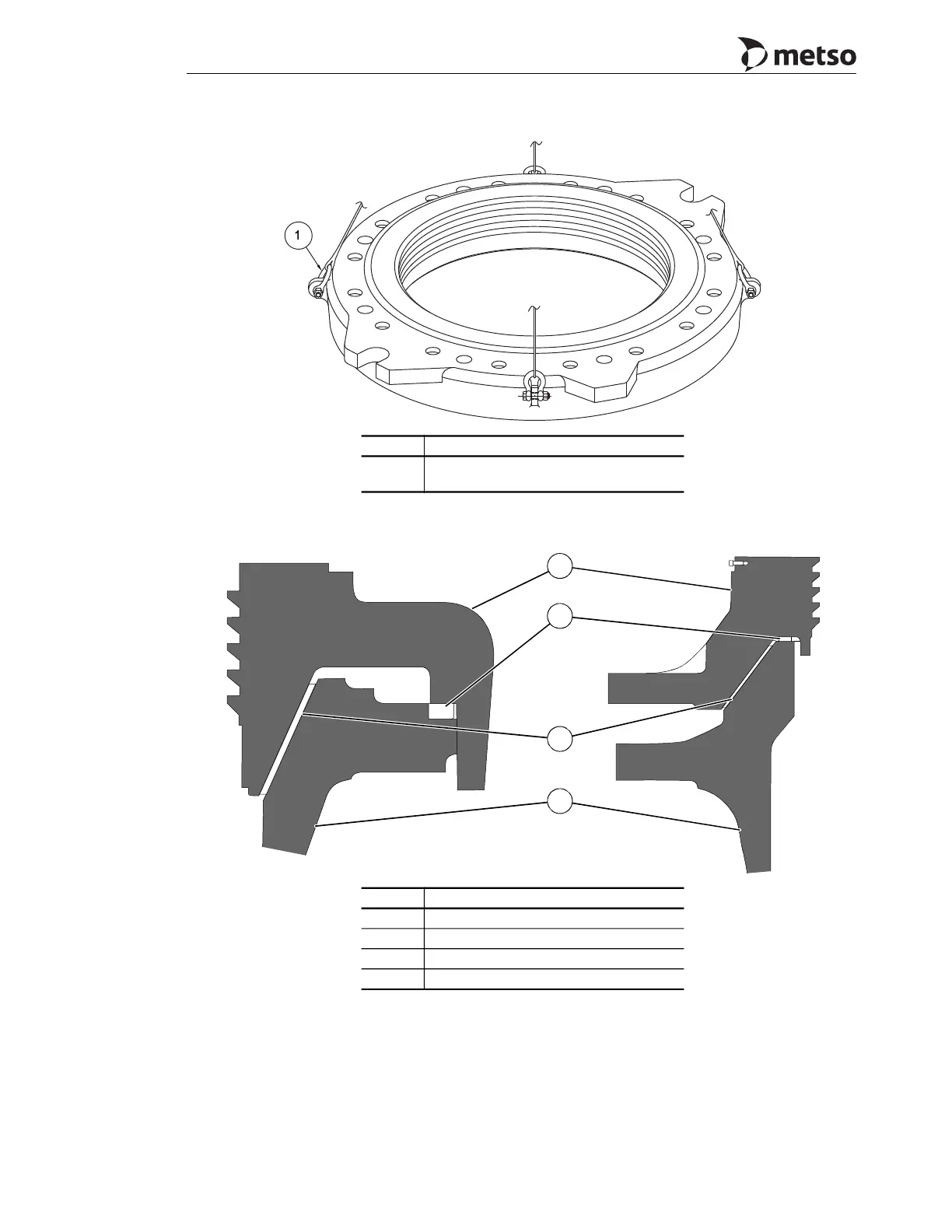

Figure 3-7 Lifting Adjustment Ring
Figure 3-8 Main Frame Seat Liner and Fulcrum Bar
Callout Description
1
Install Shackles and attach lifting slings
(four places)
Callout Description
1 Adjustment ring
2 Main frame fulcrum bar
3 Bronze main frame seat liner
4 Main frame
MP1000 MP800
1
2
3
4
