Metso MP1000 User Manual

SECTION 3 - M. FRAME, ADJ. RING, TRAMP REL. & CLRNG JACK ASSY
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL
3-13

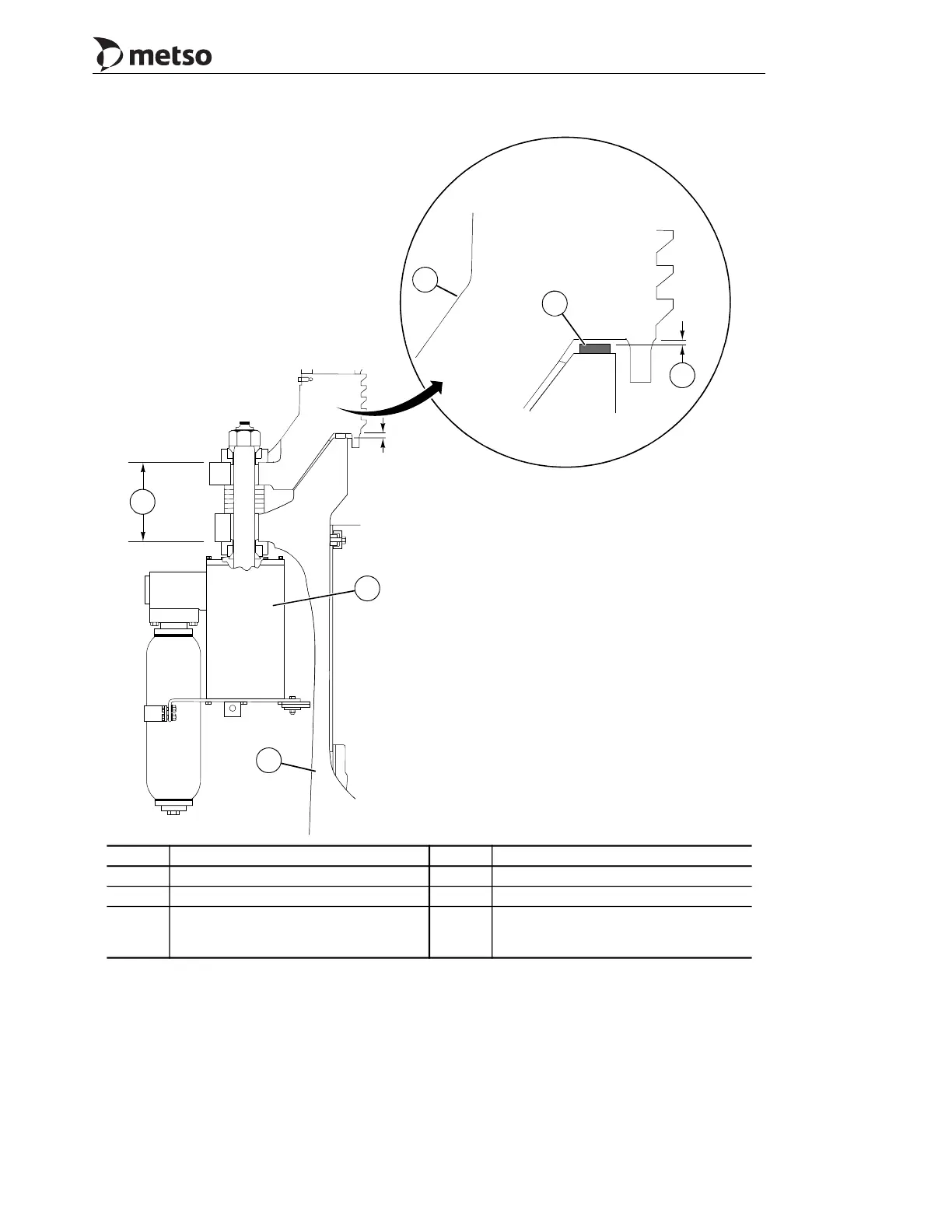

Figure 3-10 Determining Seating Surface Wear (MP800)
Callout Description Callout Description
1 Main frame fulcrum bar 4 Measure wear here
2 Adjustment ring 5 Release cylinder
3
2 mm (0.080") to 5 mm (0.196") gap
required after new main frame fulcrum
bars and seat liner are installed
6 Main frame
1
2
3
5
4
6
