Metso Orion Series User Manual

Slurry Pump
WH16AM1TAA0EN_02A.DOC JAN 04-W51
Care and maintenance
5/6
2. Two proprietary packing extractors to facilitate the removal of the packing will also be
advantageous.

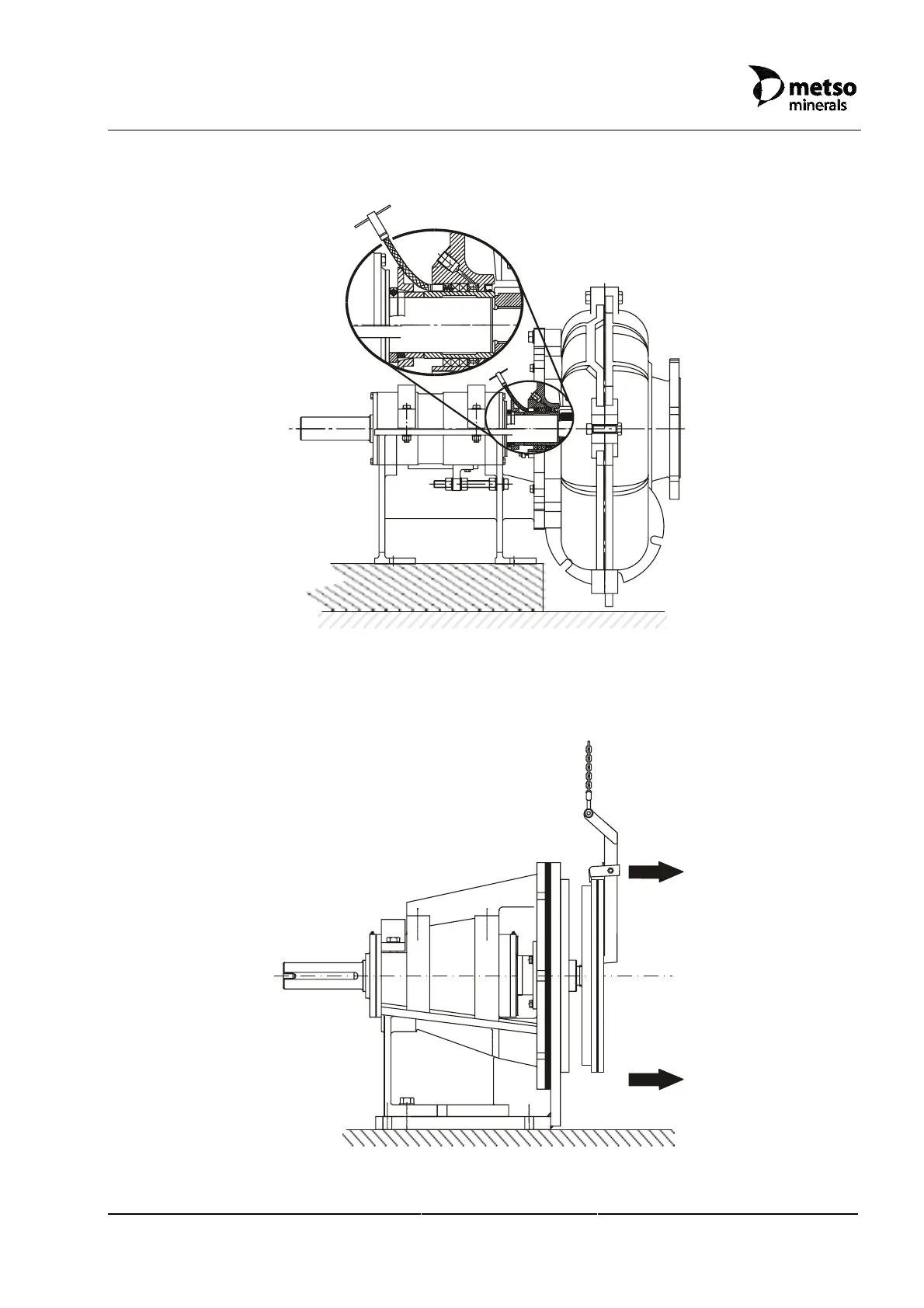

Figure 9.3-2 Packing extractor
3. Back-liners for large pumps are very heavy. Specially designed back-liner lifting tools
allow safe handling of the components.
Figure 9.3-3 Back-liner lifting tool for metal pumps
