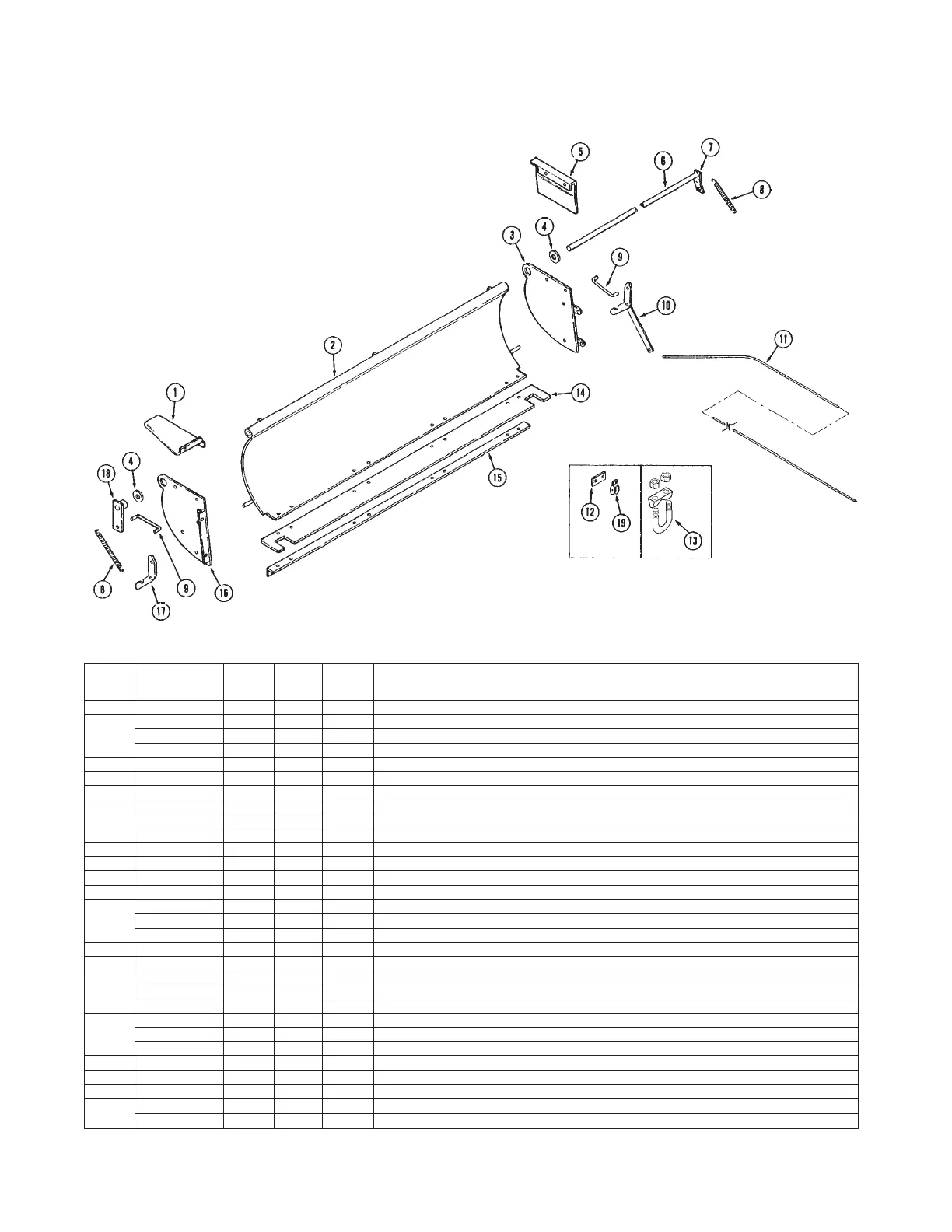

OPTIONAL FINE SPREAD PAN AND RELATED PARTS
KEY PART NO. QTY
125
QTY.
160
QTY
225
DESCRIPTION
1 E02034FSP 1 1 1 Shield, Right Side
2 E02035FSP 1 0 0 Pan, Fine Spread
E02036 0 1 0 Pan, Fine Spread
E02037FSP 0 0 1 Pan, Fine Spread
3 E02038FSP 1 1 1 Mounting Plate, Left Side
4 E02039FSP 2 2 2 Washer, Flat - 5/8"
5 E02040 1 1 1 Shield, Left Side
6 E02041 1 0 0 Rod, Spread Pan
E02042 0 1 0 Rod, Spread Pan
E02043 0 0 1 Rod, Spread Pan
7 E02044 1 1 1 Lever, Left Catch
8 E01807 2 2 2 Spring
9 E02046 2 2 2 Rod, Catch
10 E02047 1 1 1 Catch, Left
11 E02048 1 0 0 Cable, Spread Pan - 13’
E02049 0 1 0 Cable, Spread Pan - 15’
E02050 0 0 1 Cable, Spread Pan - 17’
12 E02051 1 1 1 Bracket, Cable Pulley
13 E02052 2 2 2 Clamp, Cable
14 E02053 1 0 0 Belt, Spread Pan - 42-1/2” Long x 6” Wide
E02054 0 1 0 Belt, Spread Pan - 55” Long x 6” Wide
E02055 0 0 1 Belt, Spread Pan - 60” Long x 6” Wide
15 E02056 1 0 0 Hold Down, Belt
E02057 0 1 0 Hold Down, Belt
E02058 0 0 1 Hold Down, Belt
16 E02059 1 1 1 Mounting Plate, Right Side
17 E02060 1 1 1 Catch, Right
18 E02061 1 1 1 Lever, Right Catch
19 E02062 1 1 1 Pulley, Pan
E02063 2 3 3 Spring, Pan Belt (not pictured)
