Page 35

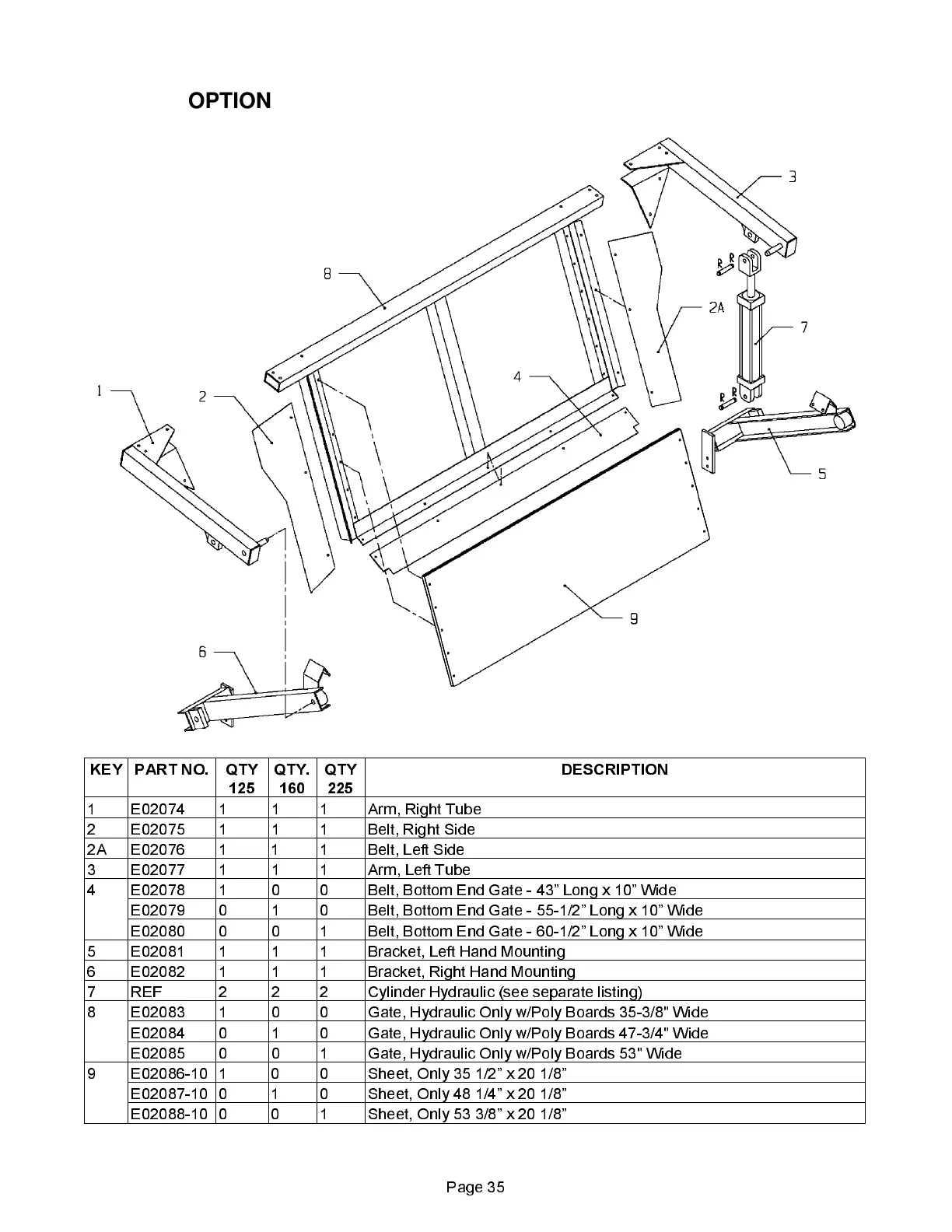

OPTIONAL HYDRAULIC END GATE & RELATED PARTS
KEY PART NO. QTY
125
QTY.
160
QTY
225
DESCRIPTION
1 E02074 1 1 1 Arm, Right Tube
2 E02075 1 1 1 Belt, Right Side
2A E02076 1 1 1 Belt, Left Side
3 E02077 1 1 1 Arm, Left Tube
4 E02078 1 0 0 Belt, Bottom End Gate - 43 Long x 10 Wide
E02079 0 1 0 Belt, Bottom End Gate - 55-1/2 Long x 10 Wide
E02080 0 0 1 Belt, Bottom End Gate - 60-1/2 Long x 10 Wide
5 E02081 1 1 1 Bracket, Left Hand Mounting
6 E02082 1 1 1 Bracket, Right Hand Mounting
7 REF 2 2 2 Cylinder Hydraulic (see separate listing)
8 E02083 1 0 0 Gate, Hydraulic Only w/Poly Boards 35-3/8" Wide
E02084 0 1 0 Gate, Hydraulic Only w/Poly Boards 47-3/4" Wide
E02085 0 0 1 Gate, Hydraulic Only w/Poly Boards 53" Wide
9 E02086-10 1 0 0 Sheet, Only 35 1/2 x 20 1/8
E02087-10 0 1 0 Sheet, Only 48 1/4 x 20 1/8
E02088-10 0 0 1 Sheet, Only 53 3/8 x 20 1/8
To Next Page
