Meyer Sound DS-2P Specification Sheet

Acoustical
1
(each loudspeaker)
Coverage
Transducers
Audio Input
Amplifiers
AC Power
Physical
Notes
56.75
5.50
30.00
30.00
30.26
21.97
13.36
13.16
10.63
21.25
7.5°

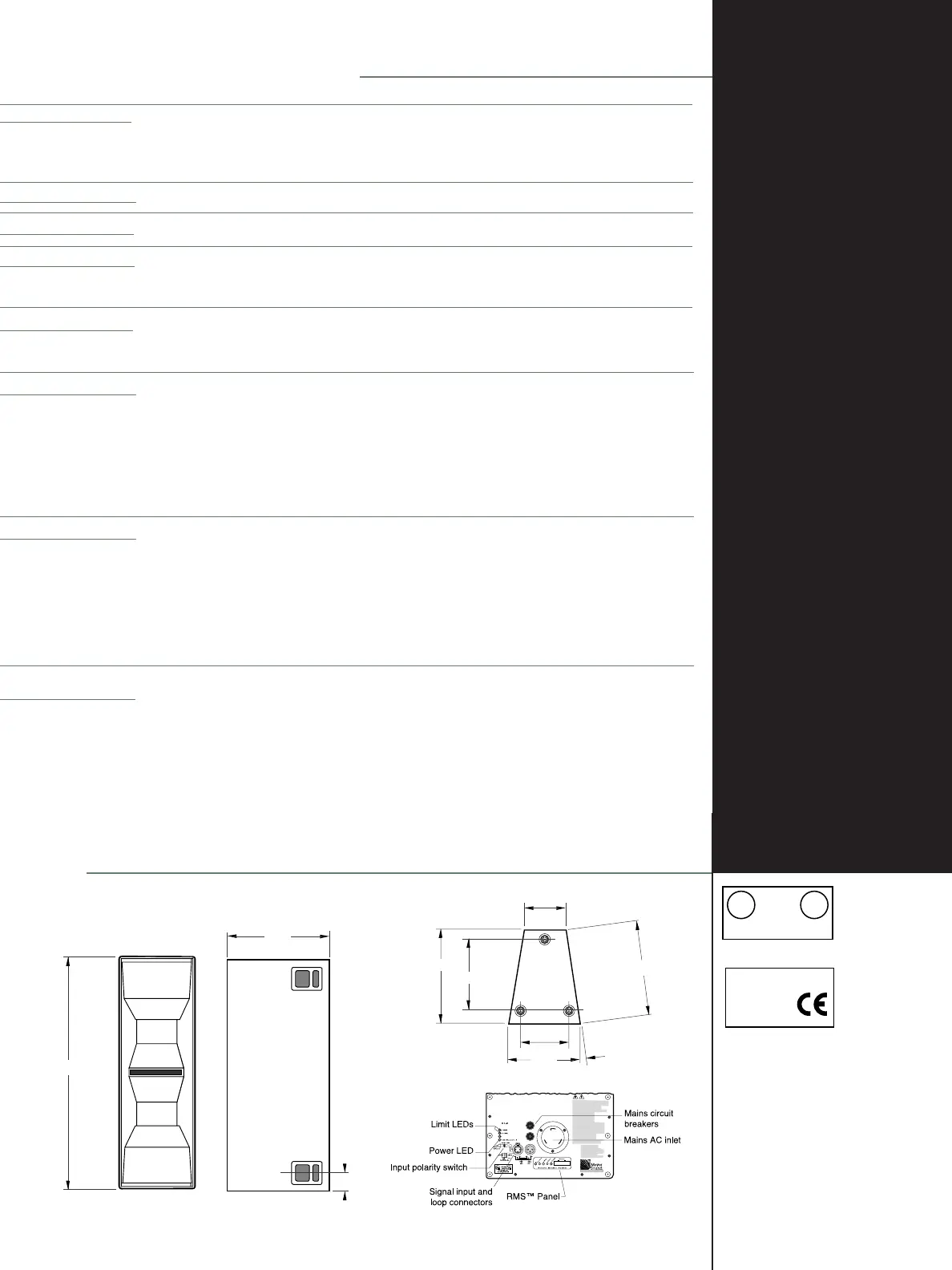

PHYSICAL DIMENSIONS
DS-2P SPECIFICATIONS
Frequency Response
2
Phase Response
2
Maximum SPL
2
Dynamic Range
(-6 dB points)
Low Frequency
Type
Connector
Nominal Input Level
Type
Burst capability
3
THD, IM, TIM
Connector
Automatic voltage selection
Operational Voltage range
Max Continuous RMS Current (>10 sec)
Burst RMS Current (<1 sec)
Max Peak Current During Burst
Soft Current Turn-on
Dimensions
Weight
Enclosure
Finish
Protective Grill
Rigging
±4 dB from 40 Hz to 160 Hz
±60° from 60 Hz to 200 Hz
>140 dB SPL peak@1 meter
>120 dB
120°H; 120°V
15” diameter MS-15 cone (2)
10kΩ impedance, electronically balanced
XLR (A-3) male and female
+4 dBu
Complementary power MOSFET output stages (audio class AB/H)
1240 watts (620 watts/channel)
< .02 %
250V NEMA L6-20P (twistlock) inlet or IEC 309 male inlet
4
95-125 VAC and 208-235 VAC; 50/60 Hz
5
Turn on: 85 VAC; Turn off: 134 VAC; 50/60 Hz
Turn on: 165 VAC; Turn off: 264 VAC; 50/60 Hz
@115V: 8A @230V: 4A @100V: 10A
@115V: 15A @230V: 8A @100V: 18A
@115V: 22Apk @230V: 11Apk @100V: 25Apk
Inrush current <12A @ 115V
21
1
⁄4” W x 56
3
⁄4” H x 30” D
243 lbs (110 kg) / shipping: 267 lbs (121 kg)
Multi-ply hardwood
Black textured
Perforated metal grill, charcoal-grey foam
Aircraft pan fittings (3 on both top and bottom).
Working load for each fitting is 600 lbs, which is
1
⁄5 the
cabinet breaking strength (with straight tensile pull).
1. Acoustical specifications are for the minimum configuration of two DS-2P cabinets and are
measured on axis at 2 meters from 1/R image (located at cabinet rear).
2. Subject to half space loading, measured with one-third octave frequency resolution in
fixed ISO bands.
3. Nominal 8Ω resistive load, pink noise, 100V peak.
4. Other connectors available.
5. The unit is rated at 95-125 VAC and 208-235 VAC, 50/60 Hz, to satisfy EC standards for
–10% to 6% AC line voltage.
ALL UNITS IN INCHES
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
tel: 510.486.1166
fax: 510.486.8356
e-mail: techsupport@meyersound.com
http: www.meyersound.com
UU
LL
CC
UU
LL
®®
LISTED
3K59
COMMERCIAL
AUDIO SYSTEM
Meyer Sound Laboratories
has devoted itself to
designing, manufacturing,
and refining components
that deliver superb sonic
reproduction. Every part of
every component is
designed and built to
exacting specifications
and undergoes rigorous,
comprehensive testing
in the laboratories.
Research remains an
integral, driving force
behind all production.
Meyer strives for sound
quality that is predictable
and neutral over an
extended lifetime and
across an extended range.
Made by Meyer Sound, Berkeley, CA, USA
European Office:
Meyer Sound Germany
GmbH
Carl Zeiss Strasse 13
56751 Polch, Germany
© 1998 Meyer Sound Laboratories, Inc.
All rights reserved
DS-2P - 04.035.013.01B
Rear Panel Locations (U.S. Version)

Meyer Sound DS-2P Specifications

Acoustical

frequency response	± 4 dB 50 – 160 Hz
phase response	± 60° 60 – 200 Hz
maximum SPL (music as source)	140 peak
maximum SPL (pink noise as source)	136 dB continuous; 140 peak
dynamic range	> 120 dB
coverage	120° H x 120° V

Transducers

low frequency transducer	Two 15" diameter MS-15 cone

Audio Input

input type impedance	10 kΩ
connector	XLR (A-3) male and female
nominal input level	+4 dBu (1.23 Vrms)

Amplifiers

amplifier type	Complementary power MOSFET output stages class AB/H
burst capability	1240 Watts (620 Watts per channel)
THD, IM, TIM	< .02 %

AC Power

connector	250 V NEMA L6-20P / IEC 309 Twistlock male receptacle
automatic voltage selection	85 – 134 V / 165 – 264 V; 50 Hz / 60 Hz
max continuous RMS current (115 V)	8 A
max continuous RMS current (230 V)	4 A
max continuous RMS current (100 V)	10 A
max burst RMS current (115 V)	15 A
max burst RMS current (230 V)	8 A
max burst RMS current (100 V)	18 A
max peak current during burst (115 V)	22 Apk
max peak current during burst (230 V)	11 Apk
max peak current during burst (100 V)	25 Apk
soft-current turn-on inrush current	< 12A @115V

Physical

dimensions	21.25” W x 56.75” H x 30” D
weight	221 lb (100 kg)
shipping weight	267 lb (121 kg)
