Meyer Sound LEO-M User Manual

CHAPTER 4: QUICKFLY RIGGING
16

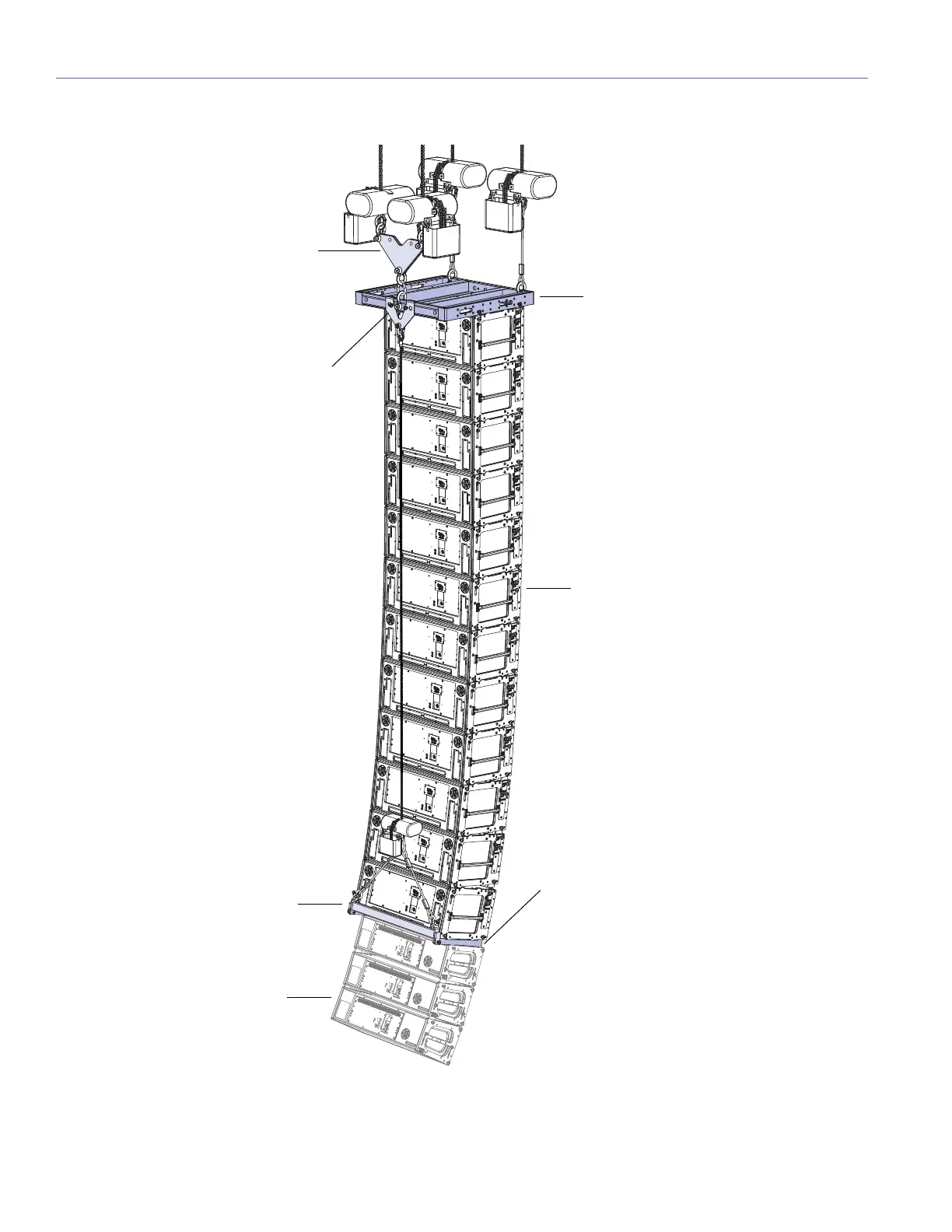

Rigging Example, LEO-M Array with MICA Downfill and Pull-Up
MTG-LEO-M Top Grid
Oriented for maximum
array downtilt with three
pick-up points and four
motors
(12) LEO-Ms
Primary array
coverage
MTF-LEO/MICA
Transition Frame
Transitions from last LEO-M
to first MICA (for downfill); is
also required when using the
PBF-LEO-M pull-back frame
(with or without MICAs)
The MTF-LEO/LYON transi-
tion frame is also available
for flying LYONs below
LEO-Ms
RPP-LEO-M
Rear Pull-Up Plate
Helps assemble large
arrays with wide splay
angles by providing pull-
up (with a motor) to
expand the array’s splay
angles during installation
so the blue locking pins
can be more easily
inserted
MVP Motor Vee Plate
Attached to rear center
of grid with two motors
to adjust the horizontal
aim of the array
(3) MICAs
Downfill coverage
PBF-LEO-M
Pull-Back Frame
Attached to transition
frame to provide pull-
back for extreme array
downtilt; can also be used
for pull-up to expand the
array’s splay angles
during installation so the
blue locking pins can be
more easily inserted
