APPENDIX A: RAIN HOODS
LEO-M comes standard with weather protection that includes a collapsible rain hood that protects the loudspeaker’s con-
nectors from water intrusion.
EXPANDING THE LEO-M COLLAPSIBLE RAIN HOOD
To expand the LEO-M collapsible rain hood:
1. Remove the rain hood’s Velcro straps.
2. Expand the rain hood’s fabric fully upward and outward.
3. Reach inside the rain hood and free the two struts from the top corner pockets nearest the loudspeaker.
4. Fold the two struts downward and outward and insert them into the two side pockets.
NOTE: For LEO-M dimensions with the rain hood expanded, see “LEO-M Dimensions with Rain Hood” on
page 28.

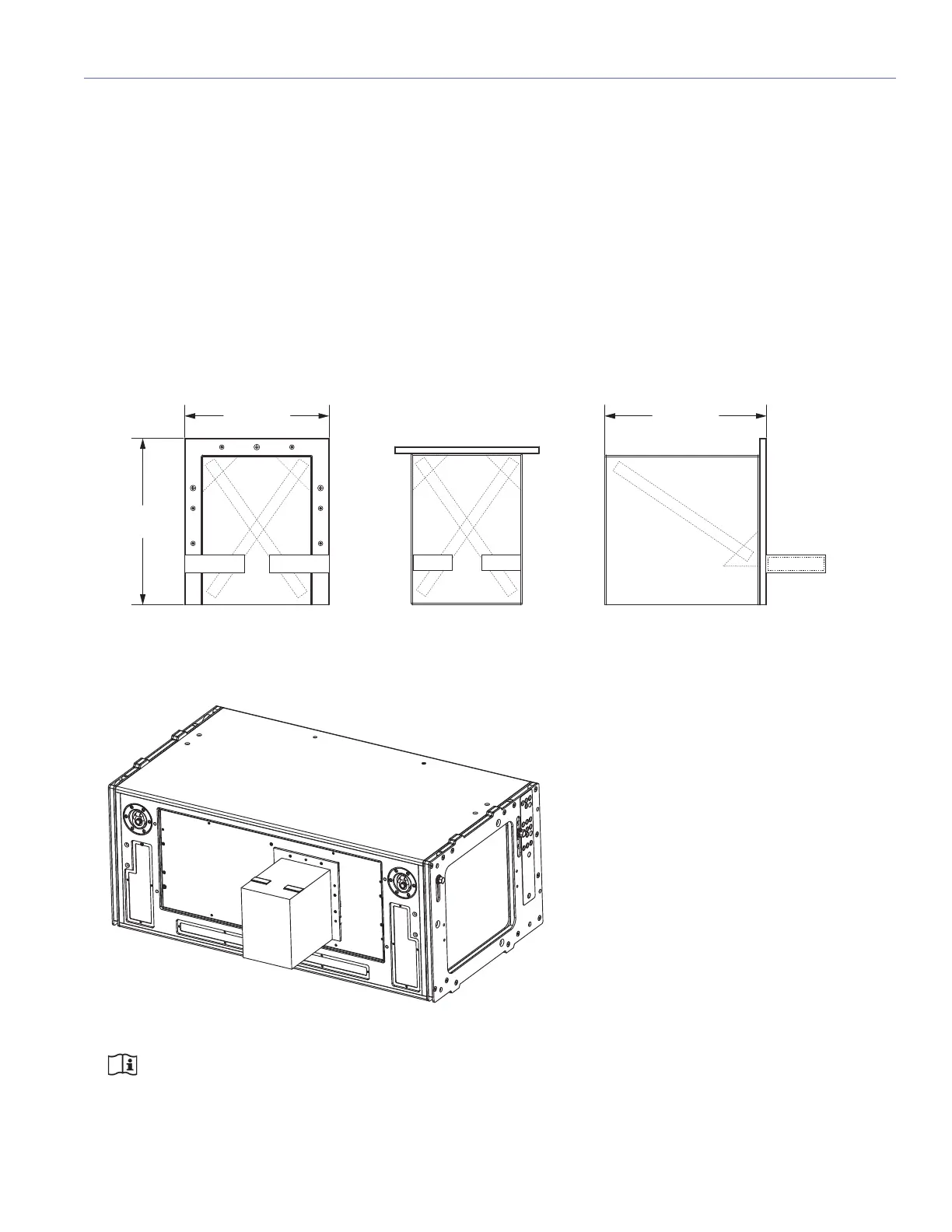

LEO-M with Rain Hood Expanded
OPEN TO FULLY OPERATE
OPEN TO FULLY OPERATE
6.25
[159 mm]
8.50
[216 mm]
9.27
[235 mm]
Rear view
(collapsed)
Top v i e w
(expanded)
Side view
(expanded)
