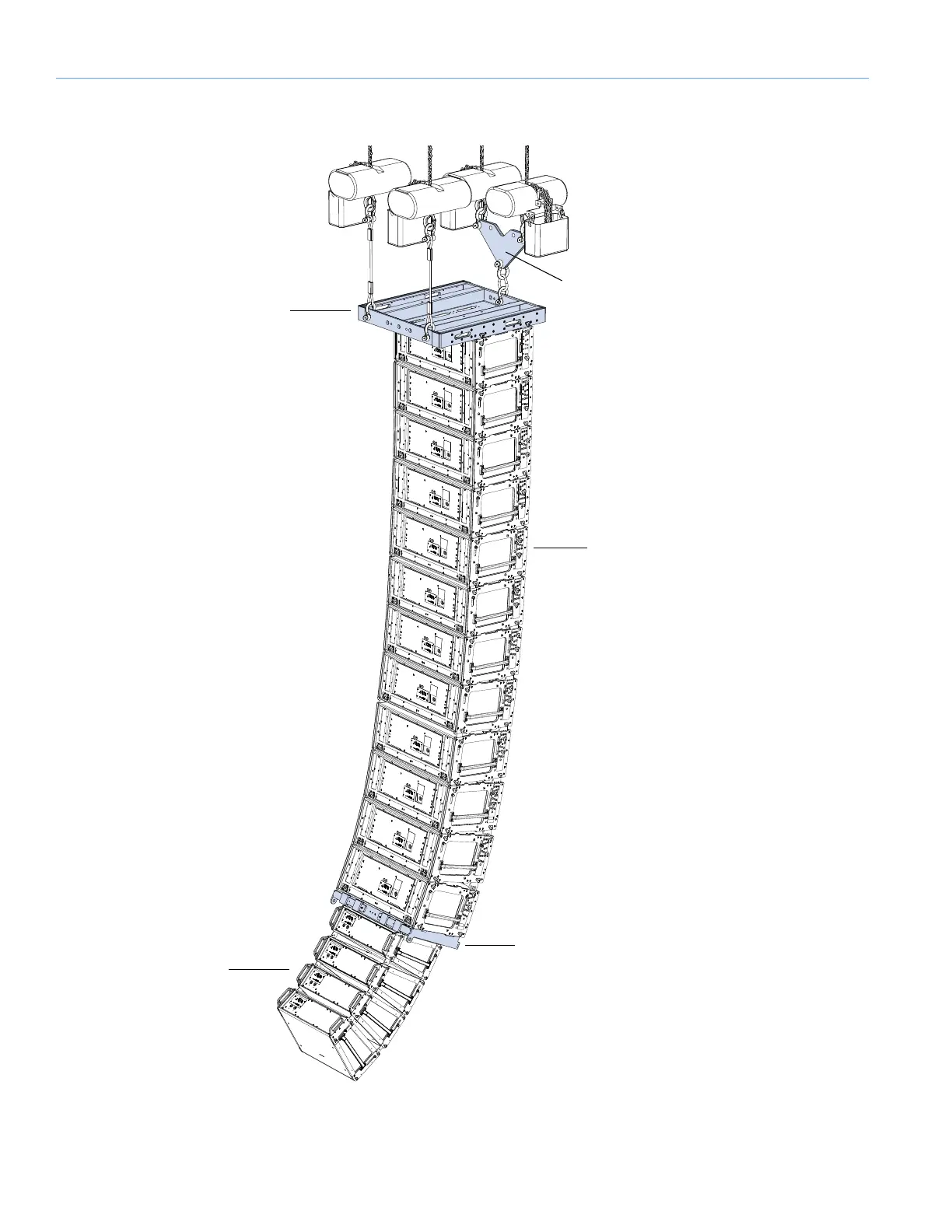

Rigging Example, LYON Array with LEOPARD Downfill
MVP Motor Vee Plate
Attached to front center
of grid with two motors
to adjust the horizontal
aim of the array
MTG-LYON Top Grid
Oriented for maximum
array downtilt with three
pick-up points and four
motors
(12) LYON-M
Primary array
coverage
(4) LEOPARD
Downfill coverage
MTF-LYON/LEOPARD
Transition Frame
Transitions from last LYON to
first LEOPARD (for downfill);
includes two rear attachment
points for array pull-back
