LYON OPERATING INSTRUCTIONS
38
Expanding the LYON Collapsible Rain Hood
To expand the LYON collapsible rain hood:
1.Remove the rain hood’s Velcro straps.
2.Expand the rain hood’s fabric fully upward and outward.
3.Reach inside the rain hood and free the two struts from the top corner pockets nearest the loudspeaker (Figure 24).
4.Fold the two struts downward and outward and insert them into the two side pockets (Figure25).
LYON QUICK-CLIP RAIN HOOD
The LYON quick-clip removable rain hood (Figure 26) is easily attached and removed with its two winghead studs. The
quick-clip rain hood is ideal for indoor/outdoor touring applications and fixed outdoor applications.
To attach the LYON quick-clip rain hood:
1.Connect any required cables to the LYON loudspeaker.
2.Attach the rain hood to the user panel, slipping it under the rain hood retainer flange at the top of the user panel and
securing it to the center of the panel with its two winghead studs.

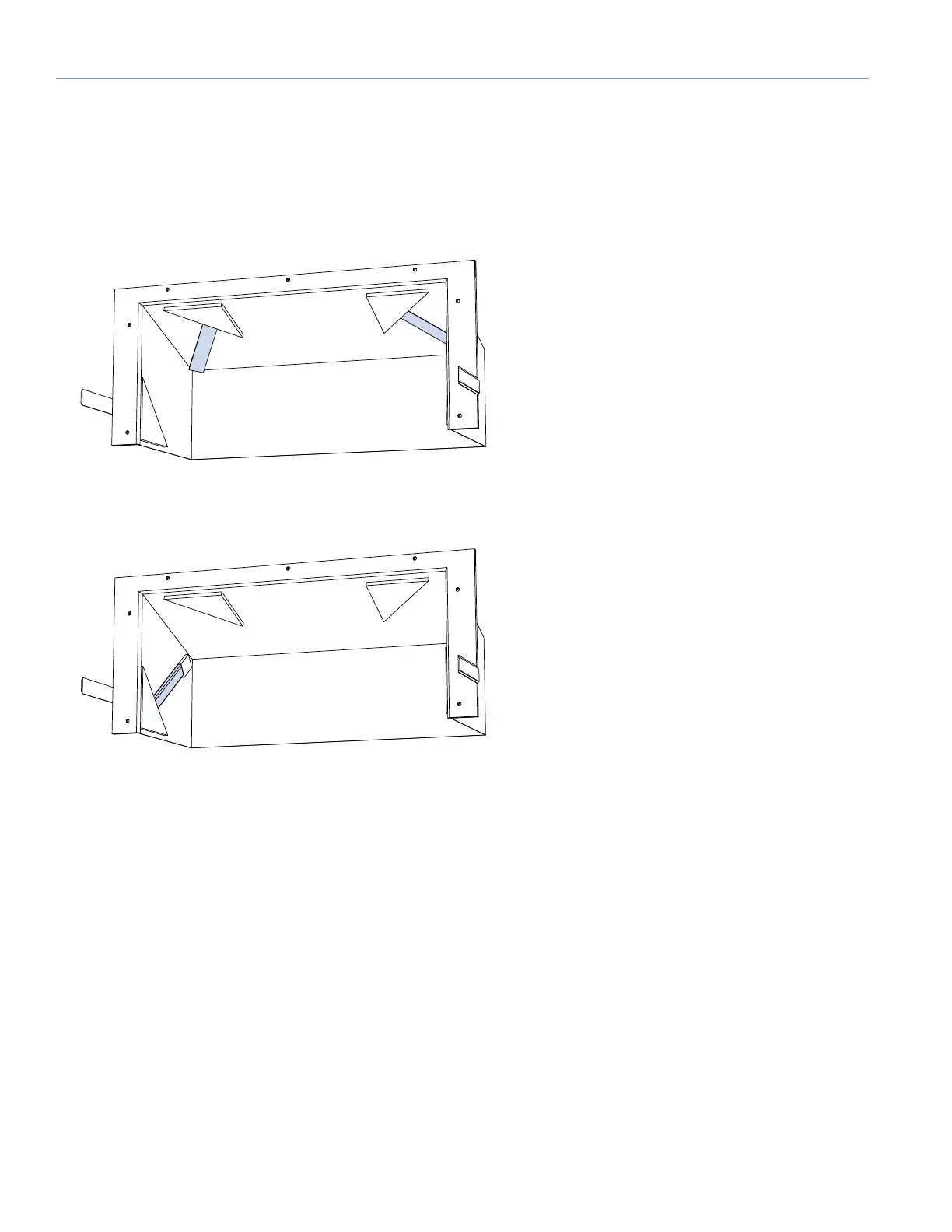

Figure 24: Freeing Rain Hood Struts
Figure 25: Inserting Rain Hood Struts
