The MG-2D grid provides additional functionality, including
transitioning to an M2D or M2D-Sub array from the bottom
of a/an:
 M3D or M3D-Sub loudspeaker (MTK-2D transition kit
required); or
 MILO loudspeaker (MTB-2D/M transition bar kit
required)
MG-1D Multipurpose Grid
The MG-1D multipurpose grid (Figure 6.4) was originally
designed to allow M1D and M1D-Sub loudspeakers to be
own or ground stacked. However, it can be used to y
M2D and M2D-Sub loudspeakers, when the exibility of the
MG-2D grid is not required.

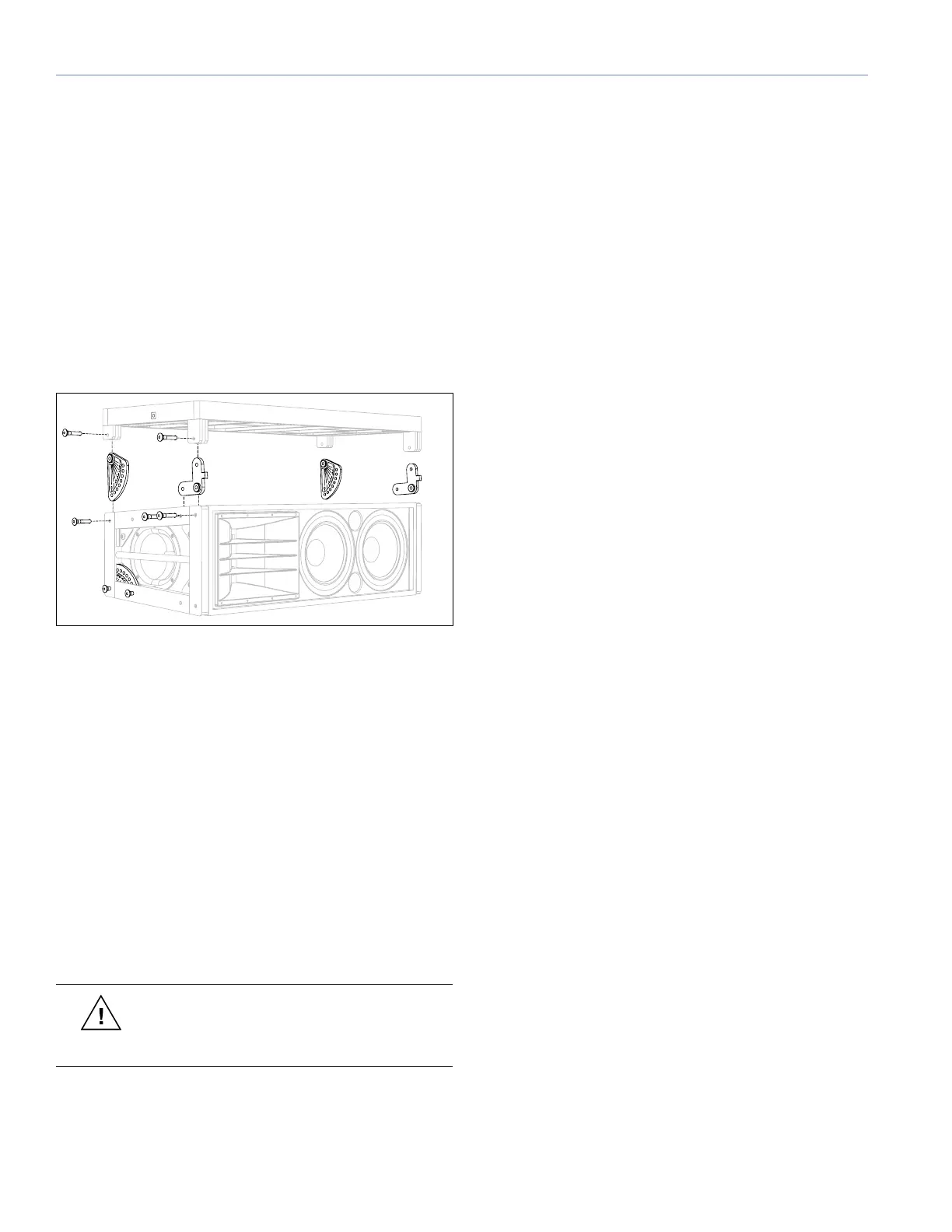

Figure 6.4. MG-1D multipurpose grid
Up to seven M2D loudspeakers (or the equivalent weight of
M2D and M2D-Sub loudspeakers) may be suspended from
single or multiple rigging points of appropriate rating, with a
safety factor of 7:1.
The MG-1D grid provides additional functionality, such as
transitioning from the bottom of an M2D and/or M2D-Sub
array to:
 An M1D and/or M1D-Sub array;
 One UPA-1P compact wide coverage loudspeaker;
 Three UPA-2P compact narrow coverage loudspeakers;
 Two MSL-4 horn-loaded long-throw loudspeakers; or
 Two DS-4P horn-loaded mid-bass loudspeakers
CAUTION: The grid must never be
suspended from the extension frame when
used in this conguration.
