Input level Audio source must be capable of producing a minimum of +20 dBV (10 V rms, 14 V pk)
into 600 ohms in order to produce maximum peak SPL over the operating bandwidth of the
loudspeaker.
AMPLIFIERS
Amplier type Two-channel complementary MOSFET output stages (class AB/H)
Output power 2250 W total
Note: Wattage rating is based on the maximum unclipped burst sine-wave rms voltage the
amplier will produce into the nominal load impedance — both channels 67 V rms (95 V pk).
THD, IM TIM < .02%
Load capacity 4 Ω each channel
Cooling Forced air cooling, 2 fans total (1 ultrahigh-speed reserve fan)
AC POWER
AC power connector PowerCon or VEAM
Voltage selection Automatic, two ranges, each with high-low voltage tap (uninterrupted)
Safety agency rated
operating voltage
95 V AC - 125 V AC; 208 V AC - 235 V AC; 50/60 Hz
Turn on/turn off points 85 V AC - 134 V AC; 165 V AC - 264 V AC; 50/60 Hz
Current Draw
Idle current 0.640 A rms (115 V AC); 0.320 A rms (230 V AC); 0.850 A rms (100 V AC)
Max. long-term continuous
current (>10 sec)
8.8 A rms (115 V AC); 4.4 A rms (230 V AC); 10 A rms (100 V AC)
Burst Current (<1 sec) 19 A rms (115 V AC); 9.5 A rms (230 V AC); 22 A rms (100 V AC)
Ultimate short-term peak
current draw
39 A pk (115 V AC); 20 A pk (230 V AC); 45 A pk (100 V AC)
Inrush current 7 A pk (115 V AC); 7 A pk (230 V AC); 10 A pk (100 V AC)
RMS NETWORK
Equipped for two conductor twisted-pair network, reporting all operating parameters of
ampliers to system operator’s host computer.
PHYSICAL
Enclosure Multi-ply hardwood
Finish Black textured
Protective grille Powder-coated hex stamped steel
Rigging Patented QuickFly MRF-2D-Sub rigging frame with CamLinks and quick release pins
Dimensions 39.00" w x 24.00" h x 17.50" d (991 mm x 610 mm x 445 mm)

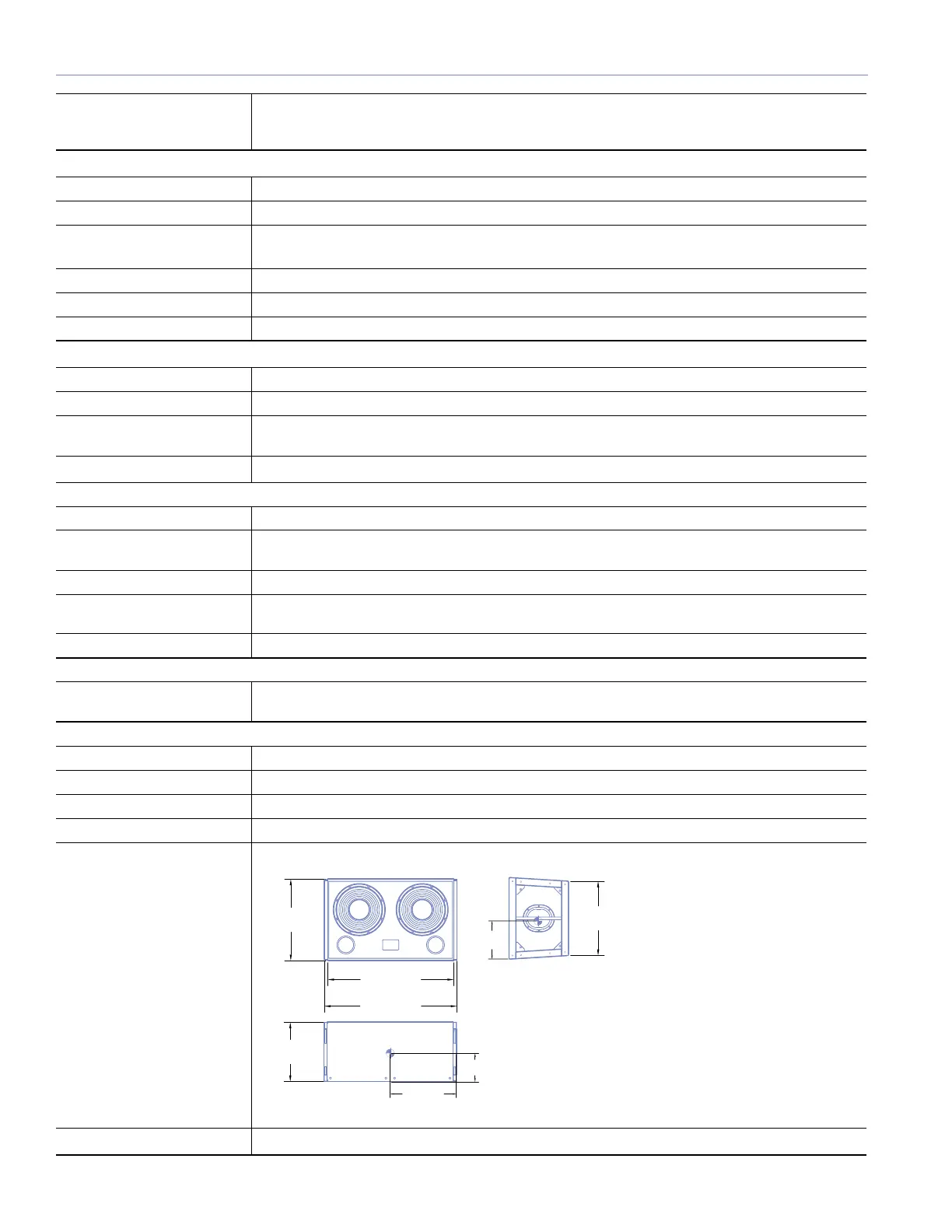

17.50
[445 mm]
21.86
[
555 mm]
39.00
[991 mm]
37.00
[940 mm]
24.00
[610 mm]
19.50
[495 mm]
8.50
[216 mm]
11.25
[286 mm]
Weight 173 lbs (78.47 kg); Shipping: 197 lbs (89.35 kg)
