15
APPENDIX A
The MJF-212A monitor requires a grounded outlet. It is very
important that the system be properly grounded in order to
operate safely and properly. Figure A.1 illustrates correct
wiring for the creation of power cables and distribution
systems for MJF-212A stage monitors shipped from the
factory with the VEAM multipin connector.
line (brown)
ground (green/yellow)
neutral (blue)

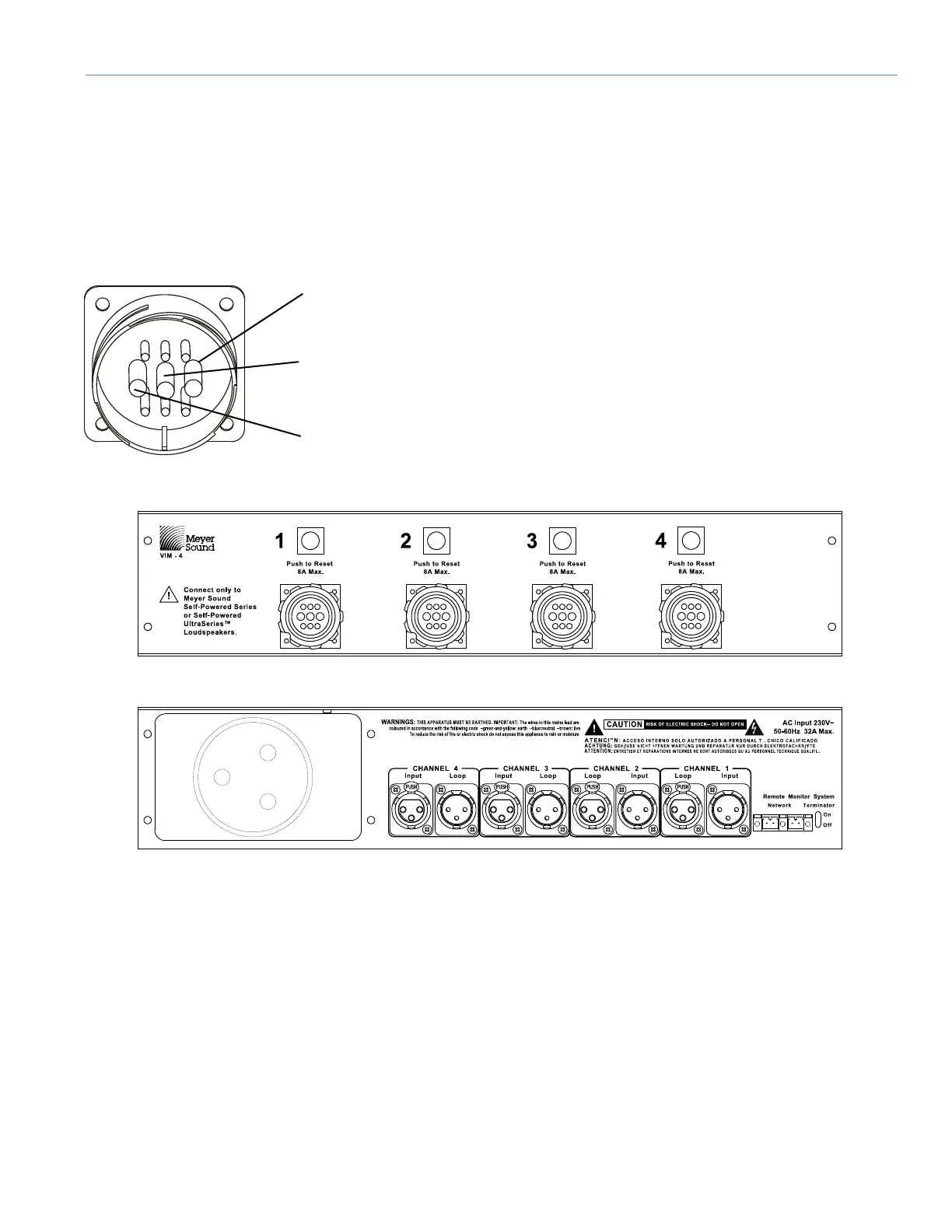

Figure A.1. VEAM multipin connector power pin-out
For complete wiring conventions and pin-outs for AC,
audio, and RMS connections, please refer to the Meyer
Sound document VEAM Cable Wiring Reference (PN
06.033.113.01).
In addition, Meyer Sound offers the VIM-4 (VEAM interface
module) with four VEAM connectors in the front and a
single-phase IEC 309 32-amp connector in the rear to
distribute power, audio, and RMS to MJF-212A monitoring
systems fitted with VEAM connectors.
APPENDIX A: OPTIONAL VEAM MULTIPIN CONNECTOR
Figure A.2. VIM-4 module, front (top) and rear (bottom)
