CHAPTER 4: MOUNTING ULTRA XP LOUDSPEAKERS
20
POLES AND POLE-MOUNT ADAPTERS
The following poles and pole-mount adapters are available for Ultra XP loudspeakers. The MSA-UPM pole-mount adapter
mounts a single UPM-1XP or UPM-2XP loudspeaker. The (third-party) Ultimate Support BMB-200K pole-mount adapter
mounts a single UPJ-1XP or UPJunior-XP loudspeaker; it can also mount two cabinets with a U-bracket and array adapter
kit (see Figure 2 on page 19). The MPS-UMS pole allows a single Ultra XP loudspeaker to be mounted above the UMS-1XP
subwoofer (Figure 3 on page 21).
CAUTION: When pole-mounting Ultra XP loudspeakers with third-party hardware, make sure the pole and
pole-mount adapter have been rated to support the total weight of the loudspeaker. Observe all safety precau-
tions specified by the manufacturer.
Ultra XP Pole and Pole Mount Adapters
Model Supported
Loudspeakers
Maximum Number
of Cabinets
Loudspeaker
Attachment
Mounting Options/Notes
Ultimate Support BMB-200K
Pole-Mount Adapter (Third Party)
UPJ-1P,
UPJunior,
UPJ-1XP,
UPJunior-XP
2 Bottom
Mounts on 1-1/2” (38 mm) diame-
ter poles (not provided)
Mounting two cabinets requires U-
bracket and array adapter
MSA-UPM Pole-Mount Adapter
(PN 40.086.013.01)
UPM-1P,
UPM-2P,
UPM-1XP,
UPM-2XP
1 Bottom
Mounts on 1-3/8” (35 mm) diame-
ter poles (not provided)
Includes both 3/8”-16 and M10
hardware
MPS-UMS Pole
(PN 40.086.014.02)
UMS-1P,
UMS-1XP
1Top
(pole-mount
receptacle)
48-inch (1,219 mm) pole
1-3/8” (35 mm) to 1-1/2” (38 mm)
adjustable diameter
MPK-UMS Pole-Mount Kit
(PN 40.086.014.01)
UPM-1P,
UPM-2P,
UPM-1XP,
UPM-2XP
UMS-1P,
UMS-1XP
1 –
Includes MPS-UMS pole and
MSA-UPM pole-mount adapter

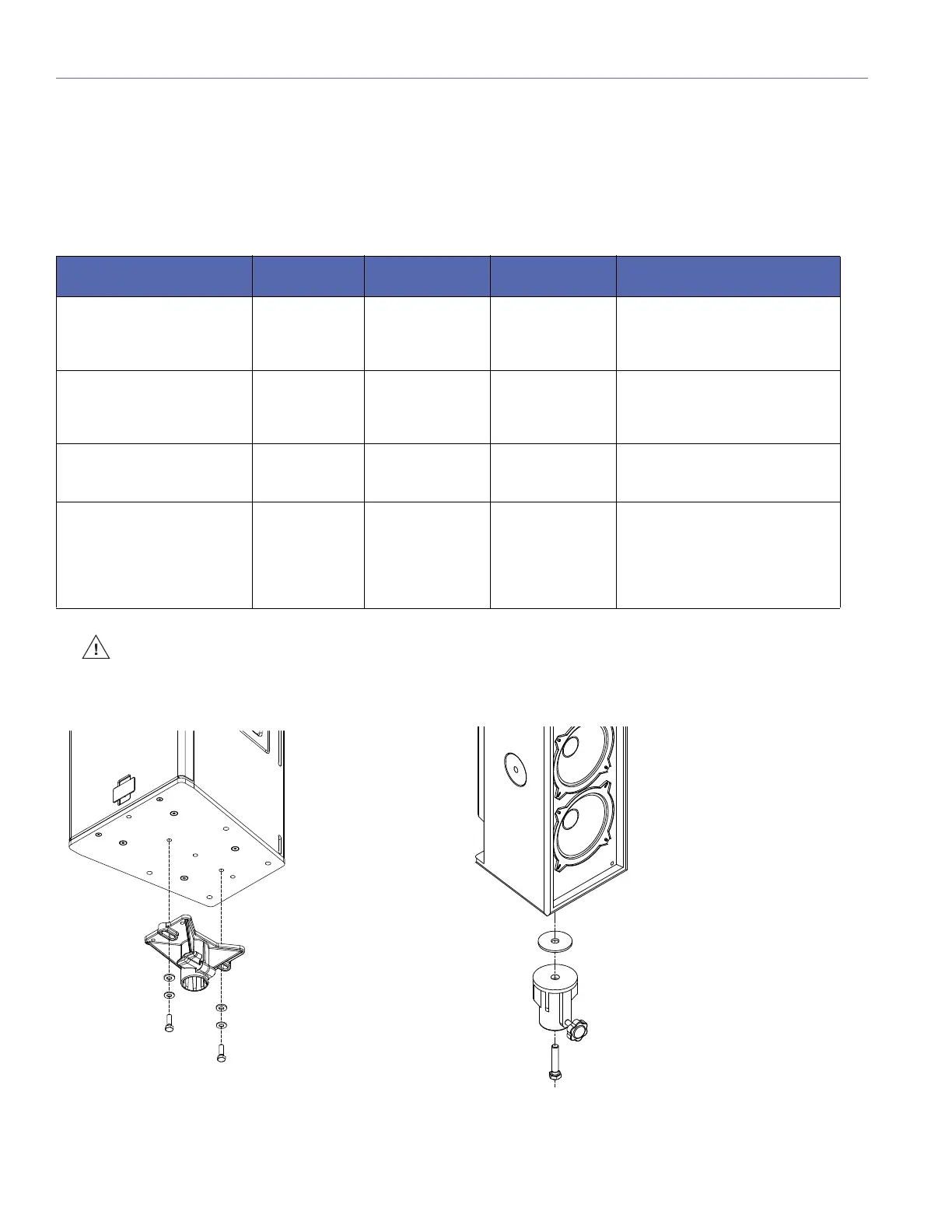

Ultimate Support BMB-200K Pole-Mount Adapter with UPJ-1XP (Left), MSA-UPM Pole-Mount Adapter with UPM-1XP (Right)
