ULTRA XP OPERATING INSTRUCTIONS
21
With the appropriate pole and pole-mount hardware, the
UPJ-1XP, UPJunior-XP, UPM-1XP, and UPM-2XP can be
mounted above the UMS-1XP subwoofer.
EYEBOLT RIGGING FOR UPJ-1XP AND
UPJUNIOR-XP
The UPJ-1XP and UPJunior-XP ship with two M8 threaded,
20 mm eyebolts. The eyebolts attach to the top or bottom
end plates and can be used to suspend the loudspeaker.
A single loudspeaker can be suspended with one eyebolt.
However, two eyebolts provide more safety and stability, as
well the capability of aiming and tilting the loudspeaker for
targeted coverage.
NOTE: Up to two UPJ-1XPs UPJunior-XPs,
oriented vertically, can be suspended with the
eyebolts supplied by Meyer Sound at a 7:1 safety
factor. For this configuration, the top loudspeaker
would have two eyebolts installed on its top plate and
two eyebolts installed on its bottom plate, for con-
necting to the second loudspeaker. Additional M8
eyebolts are available from Meyer Sound.

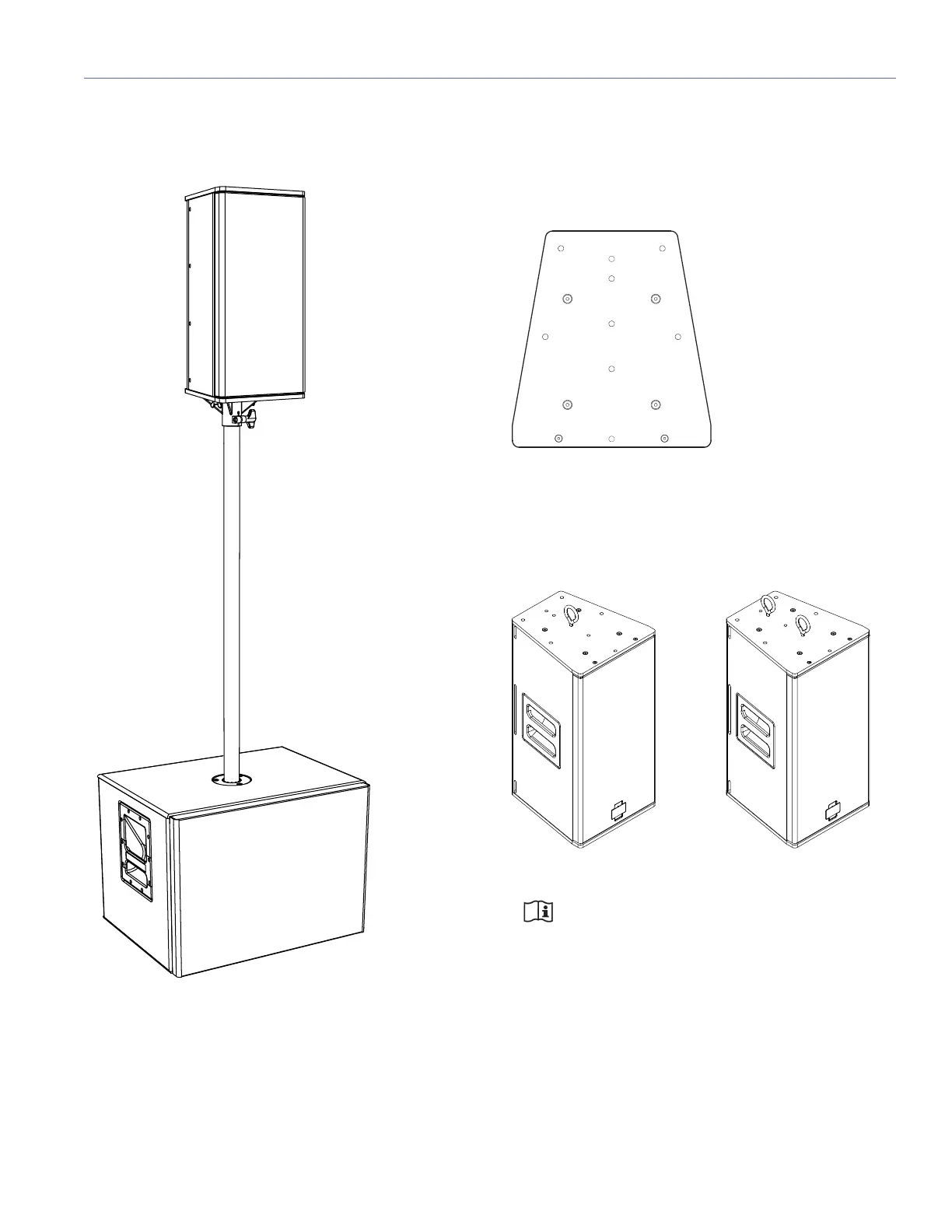

Figure 3: UMS-1XP with MPS-UMS Pole and UPJunior-XP
Ultra XP Top Plate with Threaded Holes for Eyebolts
Ultra XP with One Eyebolt (Left) and Two Eyebolts (Right)
