Meyer Sound ULTRA XP User Manual

CHAPTER 4: MOUNTING ULTRA XP LOUDSPEAKERS
22
ARRAY ADAPTERS FOR UPJ-1XP AND
UPJUNIOR-XP
Array adapter plates are available for the UPJ-1XP
(MAAM-UPJ) and UPJunior-XP (MAAM-UPJunior) to form
horizontal and vertical arrays of up to three loudspeakers.
The front adjustment slot is used to adjust the distance
between the loudspeakers to achieve splay angles from 20
to 80 degrees. The array adapter kits include two array
adapter plates, eight M8 screws and washers, and four M8
knobs (for floor monitor use only). A single kit can array two
UPJ-1XPs or two UPJunior-XPs; two kits are required for an
array of three loudspeakers.
CAUTION: The MAAM-UPJ array adapter sup-
ports a maximum of three UPJ-1XP loudspeak-
ers in an array.
CAUTION: The MAAM-UPJunior array adapter
supports a maximum of three UPJunior-XP
loudspeakers in an array.
Arrays are assembled by attaching the array adapter plates
to the top and bottom end plates of the loudspeakers and
securing them with the included M8 screws and washers.

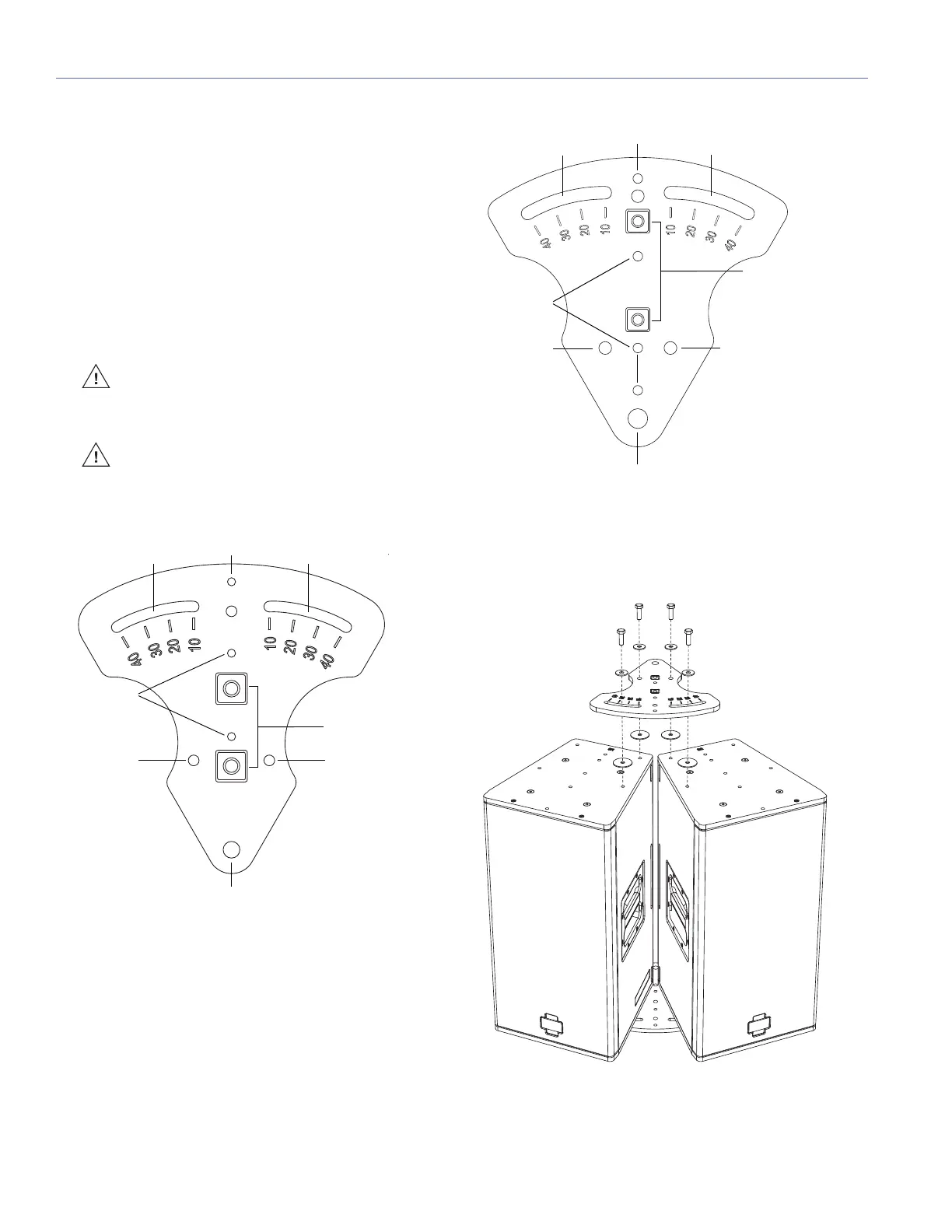

MAAM-UPJ Array Adapter Plate (for UPJ-1XP Loudspeakers)
Shackle
Eyebolts
Eyebolt
M8 screw to
loudspeaker
M8 screw to
loudspeaker
M8 screw to
loudspeaker
M8 knobs to
loudspeaker
for stowing
M8 screw to
loudspeaker
M8
MAAM-UPJunior Array Adapter Plate (for UPJunior-XP Loudspeakers)
MAAM-UPJ with UPJ-1XPs, Exploded View
Shackle
Eyebolts
Eyebolt
M8 screw to
loudspeaker
M8 screw to
loudspeaker
M8 screw to
loudspeaker
M8 knobs to
loudspeaker
for stowing
M8 screw to
loudspeaker
M8
