APPENDIX D: OPTIONAL RAIN HOODS AND WEATHER PROTECTION
38
WEATHER-PROTECTED UPM-1XP AND
UPM-2XP LOUDSPEAKERS
Weather-protected versions of the UPM-1XP and UPM-2XP
are available for fixed, outdoor installations. The weather-
protected cabinets differ from normal models in that the ori-
entation of the loudspeaker is flipped and the rear panel
connectors are located at the top instead of the bottom.
CAUTION: The weather-protected UPM-1XP
and UPM-2XP loudspeakers can be mounted
vertically or horizontally but must be mounted with a
0-degree tilt, or preferably with downtilt, to ensure the
loudspeaker’s electronics are shielded from the ele-
ments.
Reversed Rain Hood Kit
A special reversed rain hood kit is required for weather-pro-
tected UPM-1XP and UPM-2XP loudspeakers. The reversed
rain hood accommodates and protects the rear panel con-
nectors at the top of the cabinets.
230
PN 40.196.062.03
Item Part Number Quantity
Horizontal rain hood 66.196.062.03 1
Pan head screws 101.008 2

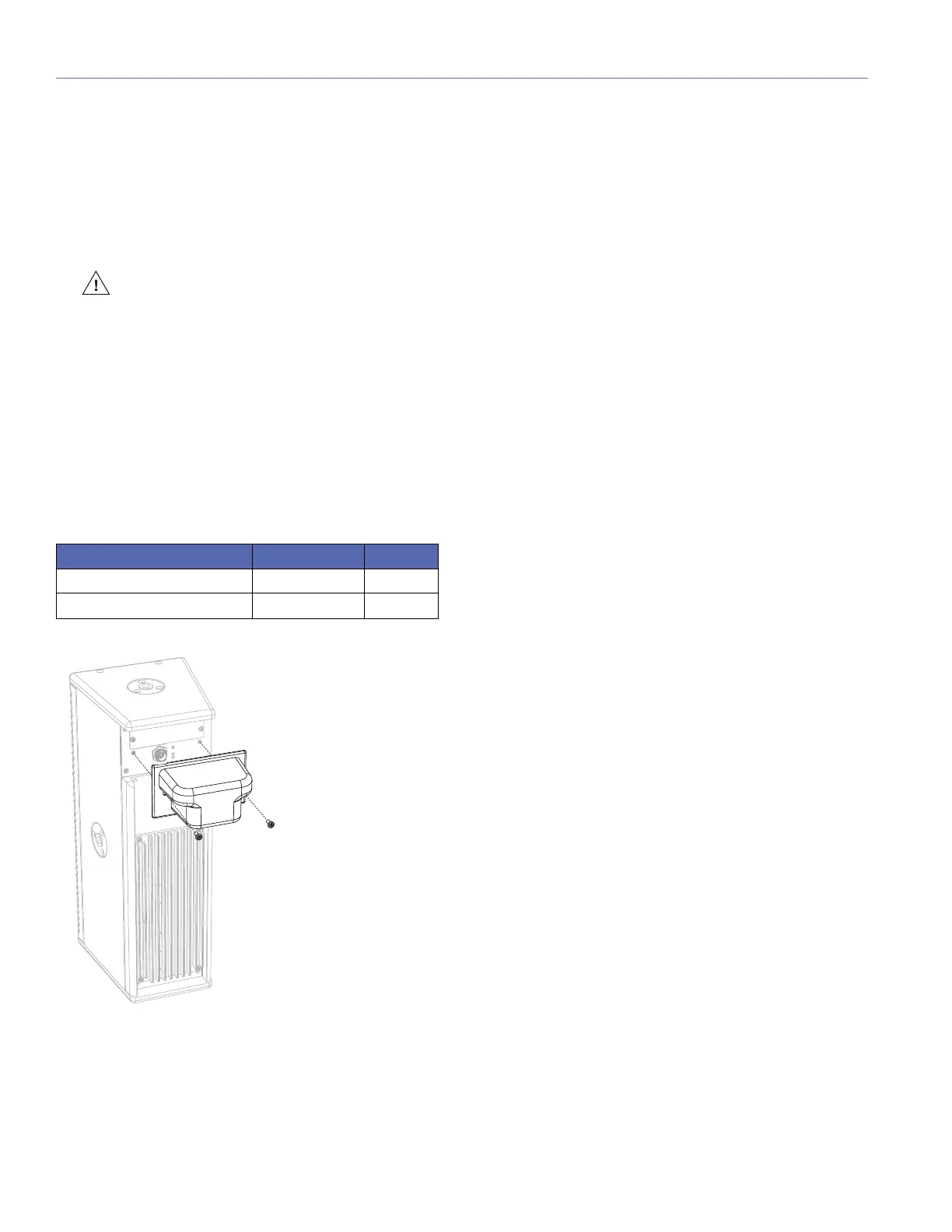

Weather-Protected UPM-1XP with Reversed Rain Hood
