CHAPTER 1: INTRODUCTION
6
UPJunior-XP UltraCompact VariO
Loudspeaker
The UPJunior-XP ultracompact VariO loudspeaker includes
one 8-inch cone driver with neodymium magnet, and one 2-
inch compression driver coupled to a rotatable, constant-
directivity 80-degree by 50-degree horn. The loudspeaker is
powered by a 2-channel, class-D amplifier. The cabinet is
constructed of premium birch plywood and includes heavy-
duty, corrosion-resistant 6061-T6 aluminum end plates with
threaded M8 attachment points for QuickFly rigging options,
basic eyebolt rigging, and third-party pole assemblies.
UPM-1XP UltraCompact Wide-Coverage
Loudspeaker
The UPM-1XP ultracompact wide-coverage loudspeaker
includes two 5-inch cone drivers, and one 1-inch metal dome
tweeter on a constant-directivity, 100-degree symmetrical
horn. The loudspeaker is powered by a 3-channel, class D
amplifier. The cabinet is constructed of premium birch ply-
wood and includes three 3/8”-16 or metric M10 nut plates.
UPM-2XP UltraCompact Narrow-Coverage
Loudspeaker
The UPM-2XP ultracompact narrow-coverage loudspeaker
includes two 5-inch cone drivers, and one 1-inch metal
dome tweeter on a constant-directivity, 45-degree symmet-
rical horn. The loudspeaker is powered by a 3-channel,
class D amplifier. The cabinet is constructed of premium
birch plywood and includes three 3/8”-16 or metric M10 nut
plates.
UMS-1XP UltraCompact Subwoofer
The UMS-1XP ultracompact subwoofer includes two 10-
inch cone drivers. The subwoofer is powered by a 2-chan-
nel, class D amplifier. The cabinet is constructed of premium
birch plywood and includes side handles and a pole-mount
receptacle for pole-mounting UPJ-1XP, UPJunior-XP,
UPM-1XP, and UPM-2XP loudspeakers. The cabinet is
optionally available (UMS-SM subwoofer) with factory-
installed threaded end plates for single-mount configura-
tions with the UMS-SM U-bracket.

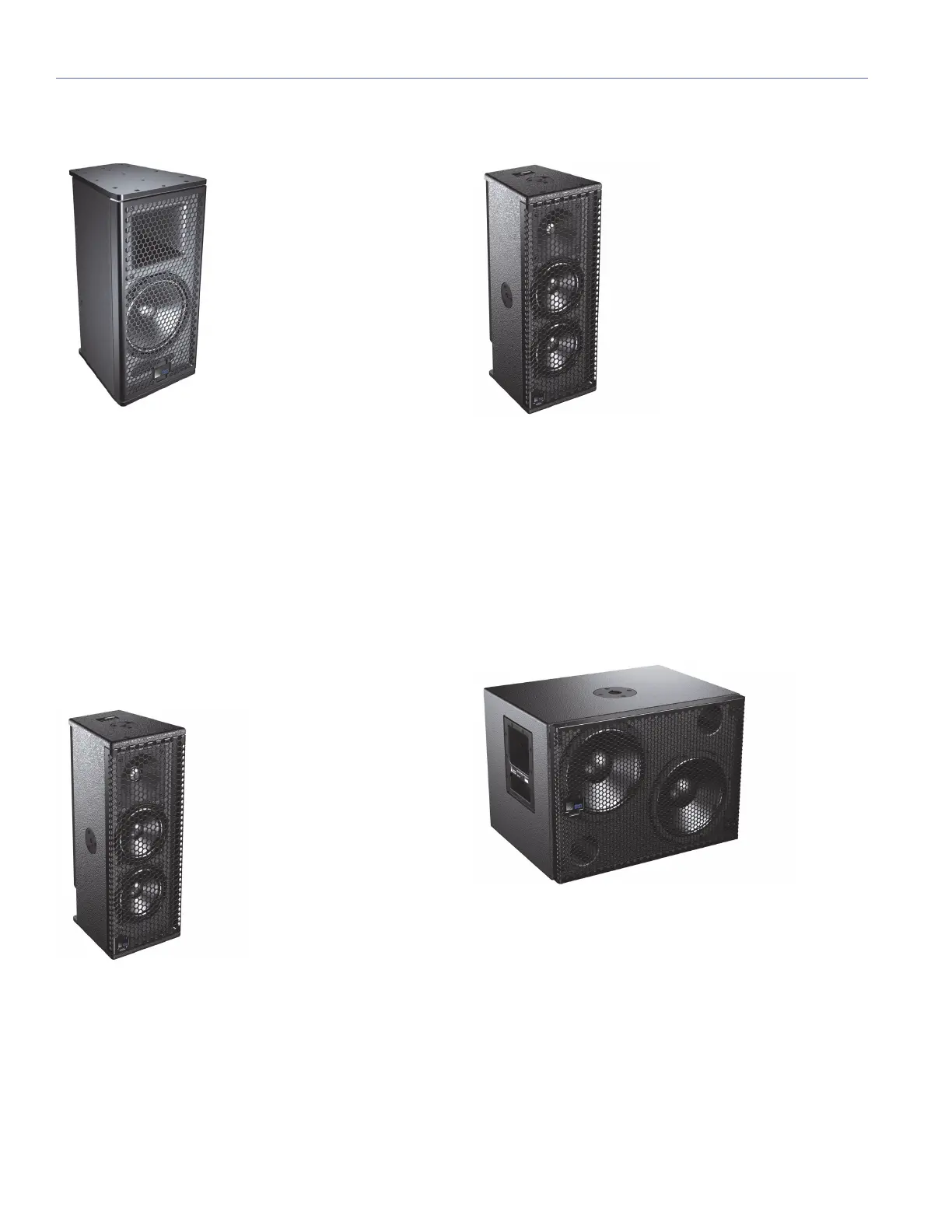

UPJunior-XP Loudspeaker
UPM-1XP Loudspeaker
UPM-2XP Loudspeaker
UMS-1XP Subwoofer
