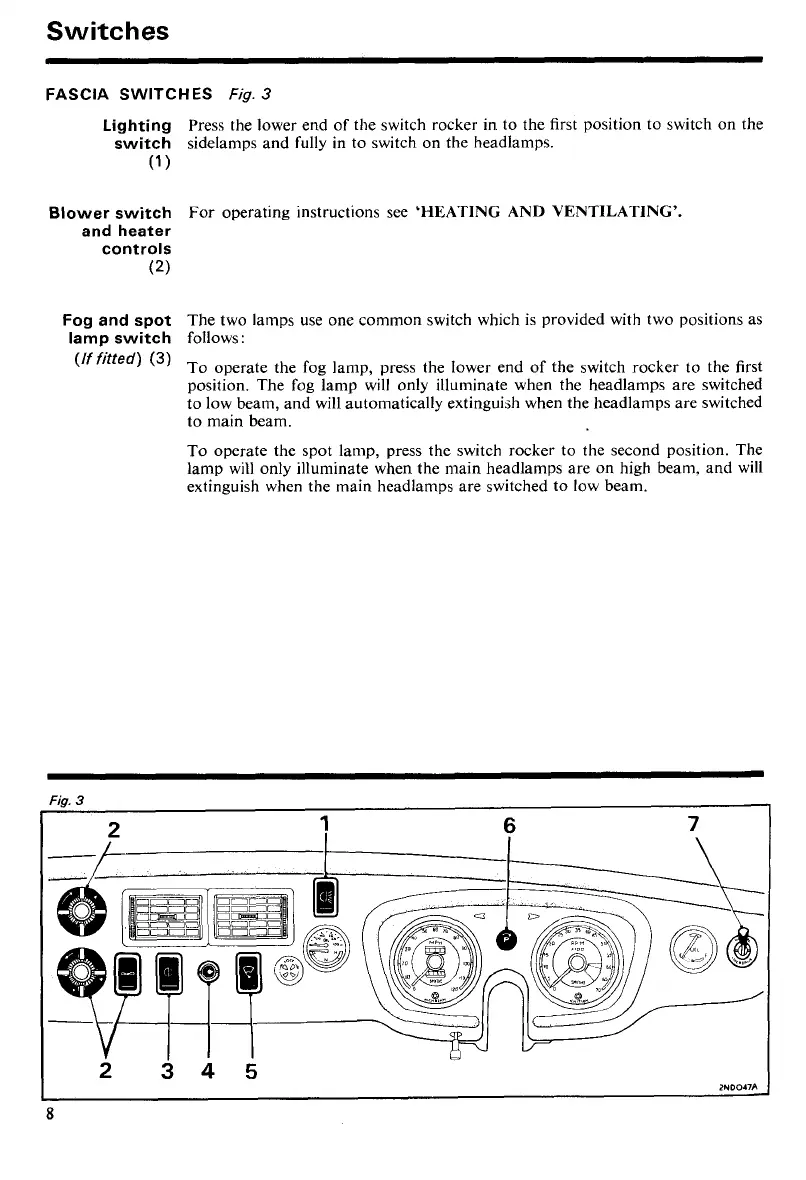

Switches
FASCIA
SWITCHES
Fig.
3
Lighting
switch
(1
)
Blower switch
and heater
controls
(2)
Fog and spot
lamp switch
(If
fitted)
(3)
Press the lower end of the switch rocker in to the first position to switch on the
sidelamps and fully in to switch on the headlamps.
For operating instructions see
'HEATING AND VENTILATING'.
The two lamps use one common switch which is provided with two positions as
follows:
To operate the fog lamp, press the lower end of the switch rocker to the first
position. The fog lamp will only illuminate when the headlamps are switched
to low beam, and will automatically extinguish when the headlamps are switched
to main beam.
To operate the spot lamp, press the switch rocker to the second position. The
lamp will only illuminate when the main headlamps are on high beam, and will
extinguish when the main headlamps are switched to low beam.
