INSTRUMENTS
INSTRUMENTS

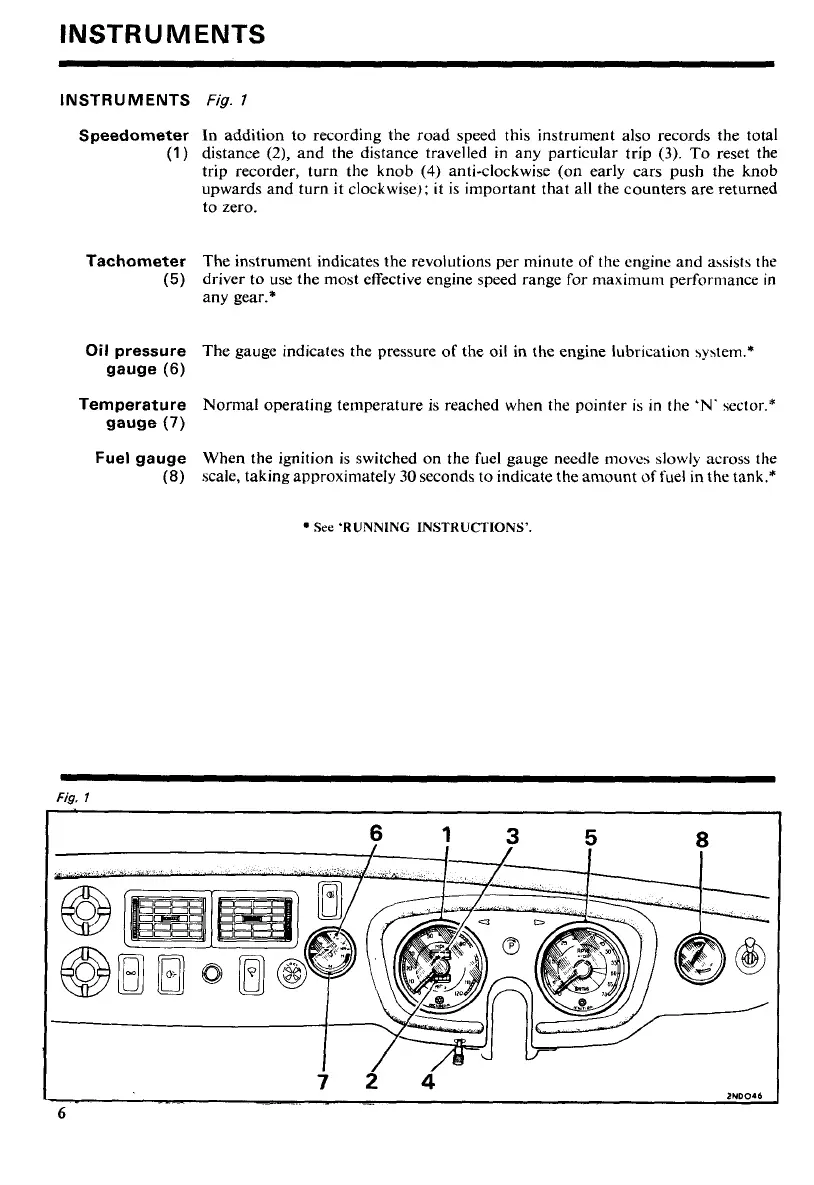

Fig.
l
Speedometer
In addition to recording the road speed this instrument also records the total
(1)
distance
(2),
and the distance travelled in any particular trip
(3).
To reset the
trip recorder, turn the knob
(4) anti-clockwise (on early cars push the knob
upwards and turn it clockwise); it is important that all the counters are returned
to zero.
Tachometer
The instrument indicates the revolutions per minute of the engine and assists the
(5)
driver to use the most effective engine speed range for maximum performance in
any gear.*
Oil
pressure
The gauge indicates the pressure of the oil in the engine lubrtcation \y\tem.*
gauge
(6)
Temperature
Nornlal operating temperature is reached when the pointer is in the
'N.
sector.*
gauge
(7)
Fuel gauge
When the ignition is switched on the fuel gauge needle moves slowly across the
(8)
scale, taking approximately
30
seconds to indicate the amount
of
fuel in the tank.*
See
'RUNNING INSTRUCTIONS'.
