MG TR-EVO - Interactive operating mode; Always on operating mode

Pressing the
≡
key again cfg is displayed on greater display line and 00 on lower display and
access the equipment configuration is enabled (for information on the configuration, refer to the
relevant chapter).
Press the
≡
key again to display the temperature read on the heating element again.
For test purposes, you can press the key to force activation of the heating cycle.

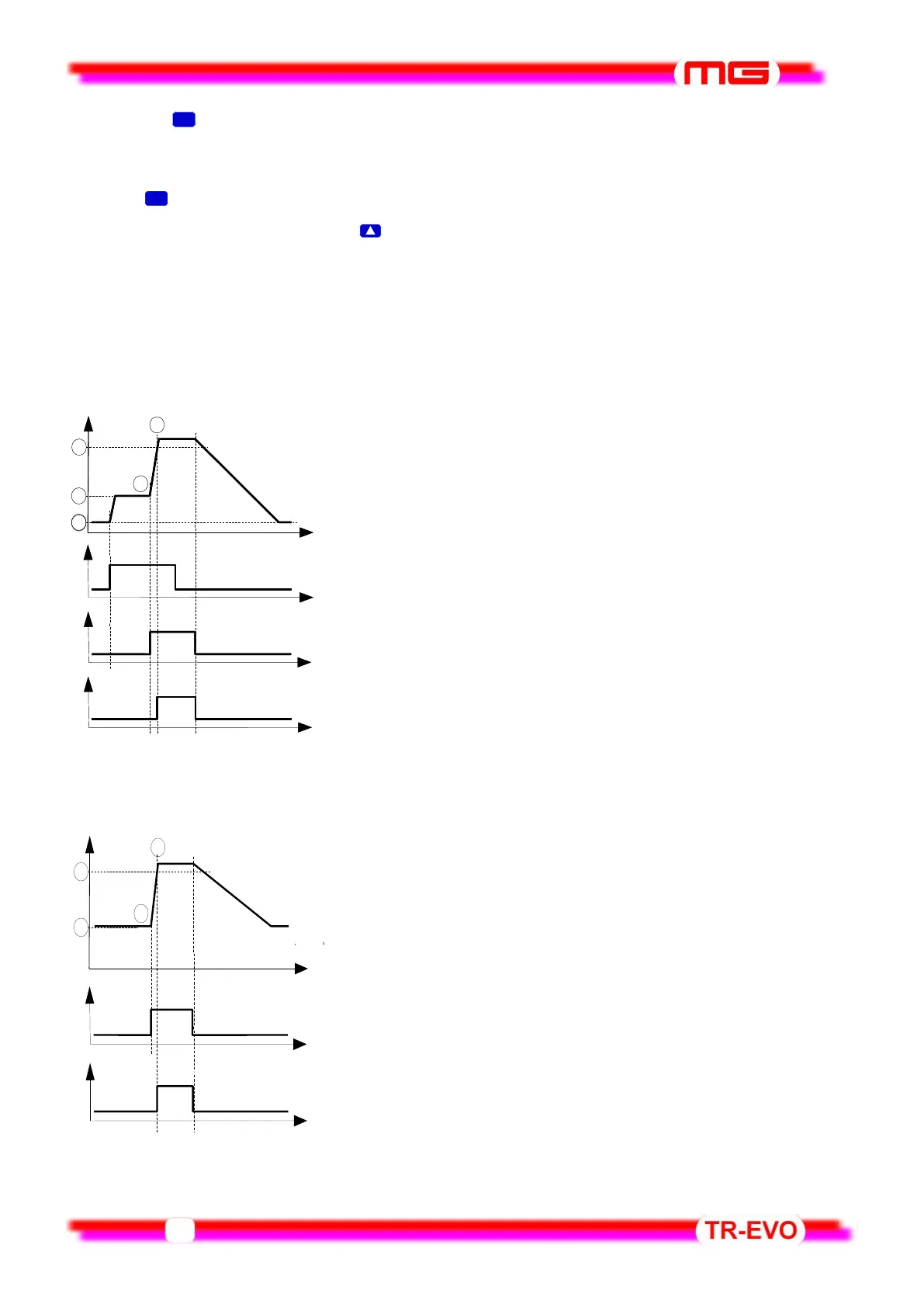

Operating modes
The temperature controller can be configured with various operating modes.
In brief, the available modes are:
interactive:
by doing so, the pre-heating input allows you to activate
temperature control at the pre-heating temperature (2) and the
start input allows you to activate the temperature control at the
heating temperature (4). The start input has priority over the
pre-heating input.
On reaching the working temperature (3), the active cycle
output activates.
On deactivating the heating input temperature goes low and
active cycle output deactivates.
Always on:
in this mode, temperature control is always on and
continuously adjusts the pre-heating temperature. Activating
the start input, the adjusted temperature changes to the heating
temperature.
On deactivating the heating input temperature goes low and
active cycle output deactivates.
12
PREHEATH
START
CICLE
temperature
1
2
4
5
time
1
3
temperature
1
2
4
5
time
1
3
START
temperature
time
2
3
4
5
CICLE
