MG TR-EVO - Technical characteristics; Control unit; Power unit

Technical characteristics
Device supply: 230 Vac (+15% / -15%) 4W max. used by controller. 115Vac option available
Power supply: 230Vac with maximum distorsion of 10%. 115Vac option available
Mains frequency: 47 Hz to 65 Hz whit automatic adaption to the mains frequency in this range
Peak output power: 3600 VA. Continuous output power 1200 VA. 1800VA with 115V supply
Load values: MAX 80Vac 100A. MIN 8Vac 12A
Device safety increased by the use of 2 breakers in series to power the load.
Command inputs: 24Vac/30Vdc +20 -60% opto-isolated.
Signaling output: max 30Vdc 50mA opto-isolated, free of voltage, NPN or PNP configurable.
Alarm output: max 30V 0,5A free voltage contact.
Temperature adjustment range: 30 to 500 degree with lockable limits.
Unit operational temperature: 0 to 50 degree
Adjustments and configuration through integrated keypad and numeric display, or through serial
bus EIA/TIA485, or through external voltage/potentiometer.

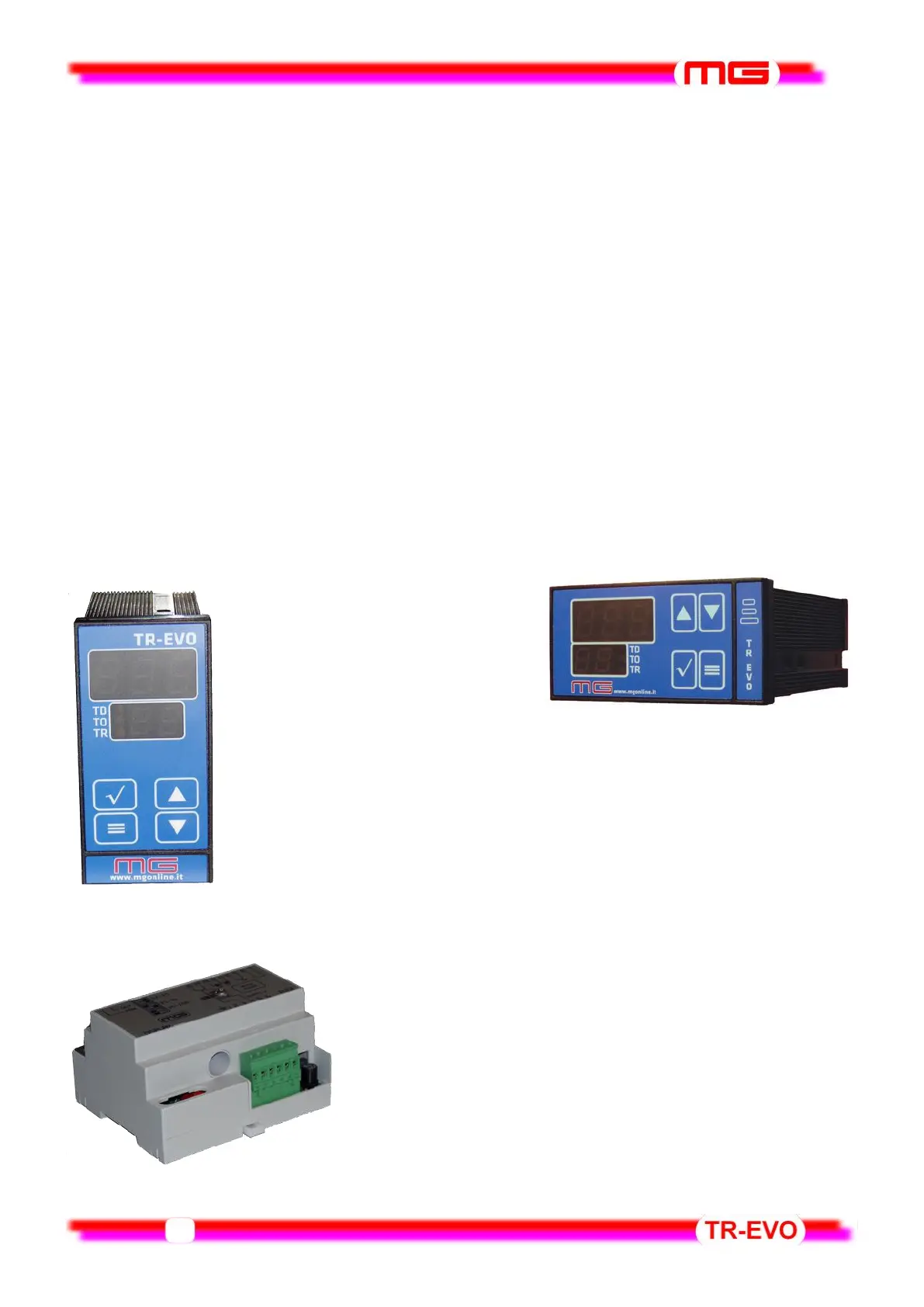

Description of parts
Control unit
Technical data:
-Dimensions mm. 96x48x118
-Weight gr. 200
-Fitted assembly on panel.
-Vertical or horizontal insertion.
-Self-extinguishing PVC material UL94 V-O
-Protection level IP42
-Numerical digits LED display.
-Powered by power unit.
-Maximun sensing voltage 80Vac.
-Maximum sensing current 100A.
Power unit
Technical data:
-Dimensions mm. 106x90x69
-weight gr. 500
-Assembly on bar DIN EN 50022- 50035
-Self-extinguishing PVC material UL94 V-O
-Protection level IP20
-Peak output power 3600VA for t < 1sec.
-Maximum continuos power 1200 for t > 1 min.
