MHSC 36CDVXTRN - Venting Components

28
CDVX Series Direct Vent Gas Fireplace
20012253

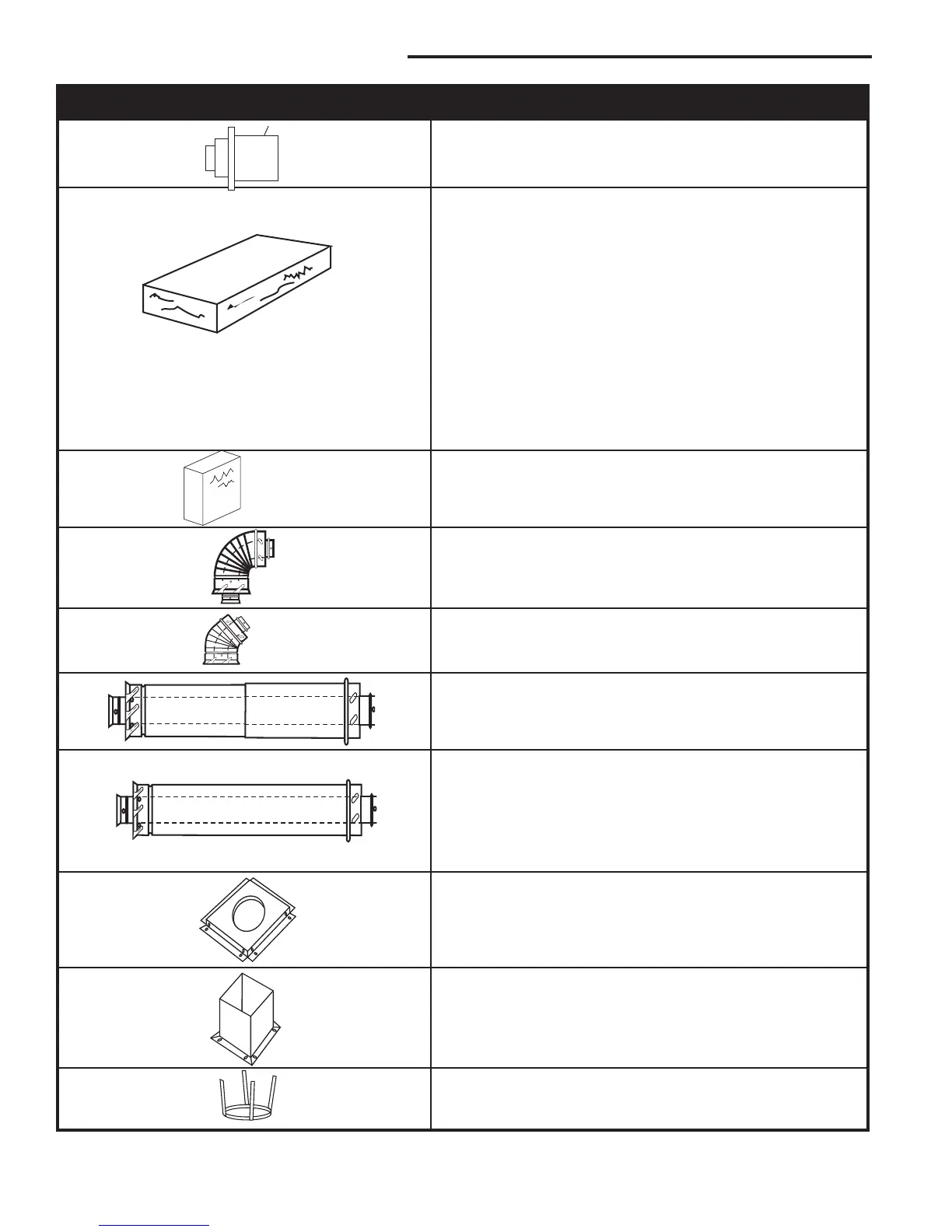

Venting Components
584G
Venting Components
Firestop spacer
2/25/99 djt
584H
Venting components
attic insulation shield
2/25/99 djt
584I
vent components
offset support
2/25/99 djt
584D
Vent Components
90 degree elbow
2/25/99 djt
10/20/99 twist lock
584A
venting components
rear vent term
4/6/99 djt
584E
Venting Components
Telescope vent
2/25/99 djt
10/20/99 twist lock
584F
Venting Components
Pipe sections
2/25/99 djt
10/20/99 twist lock
20010581 - Straight Out the Back Termination
10001953 - Through-the-Wall Termination
(for other than straight out the back on rear vent)
Starter Kit -
Model 7TCRVT 1320: Straight thru Rear Vent for 13”-20”
Vent Applications
Model 7TCRVT: Straight thru Rear Vent for 7” - 13” Vent
Application
Model 7TCD45KT: Vent Kit for 45° Installation or 13” - 32”
Rear Vent application
Starter Kit* - Model 7TDVSKV - Vertical Venting
for 7TDVSKV-A order 1/12 to 6/12 roof pitch
for 7TDVSKV-B order 7/12 to 12/12 roof pitch
for 7TDVSKV-F order flat roof
Starter Kit for Below Grade Installation
Model 7TDVSKS -Snorkel Kit (Twist Lock Pipe)
Model 7FDVSKS -Snorkel Kit (Flex Vent Pipe)
Starter Pipe
Model 7TDVP 20/8 - 24” Starter Pipe Bulk
90
o
Elbow
7TCDV90 - For Rear to Vertical
7TDV90 - For Extended Run
45° Elbow
7TDV45 for Rear Vent to Vertical Vent or
Vertical/Horizontal Offsets
Telescopic vent sections
7TDVP1117 -11” to 17” adjustable length
7TDVP3567 -35” to 67” adjustable length
Pipe sections for vertical or horizontal venting
Model 7TDVP8” - 4 per box
Model 7TDVP12” - 4 per box
Model 7TDVP24” - 4 per box
Model 7TDVP36”
Model 7TDVP48”
Firestop Spacer
Model 7DVFS
Attic Insulation Shield
Model 7DVAIS
Vertical/Horizontal Combination Offset Support
Model 7DVCS
584B
Vent components
Starter Kit
2/25/99 djt
*NOTE: Must order a 7TCDV90 elbow
for rear vent to vertical application only.
584C
Vent components
45 degree elbow
2/25/99 djt
10/20/99 twistlock
