MHSC SB38 - Page 20

SB38 / SB44 Series Woodburning Fireplace
0
87D0057

&P
CENTERPOINT

Centerline of
Chimney

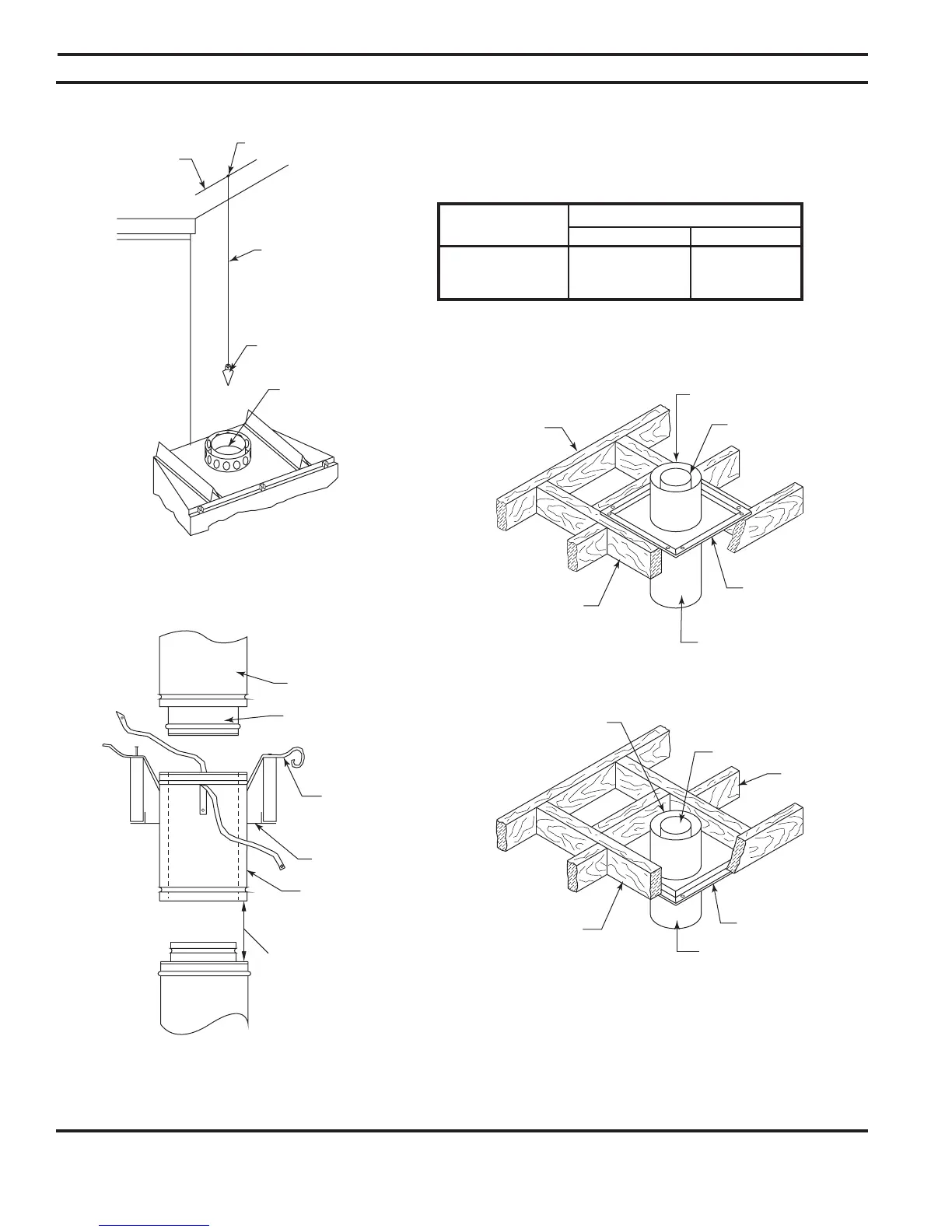

Figure 21
Actual Center Point
Plumb Line
Plumb Bob
Imaginary Center
Point
FP1891
FP1890
chimney install
8/08
Figure 22
Outer Pipe
Flue
Support Straps
Fasten Securely
Firestop
Chimney Support
Snap Lock Chimney
Support Securely to
Lower pipes Before
Fastening Support
Straps
FP1890
FP 548b
SHR
5/11/99 djt
Angle of Chimney at Ceiling
Size of Chimney
Vertical
30˚
11" CF 2-Wall
FS2A
1756O" x 1756O"
(445 x 445 mm)
FS6A
17(6" x 296"
(454 x 753 mm)
CHIMNEY HOLE SIZE
&0
FIRESTOPINSTALL

Figure 23

Inlet Air Pipe
Ceiling Joist
Flue Pipe
Firestop Spacer
Chimney Section
Header

Floor
Joist
Inlet Air Pipe
Flue Pipe
Firestop Spacer
Chimney Section
Header
FP189

