SB38 / SB44 Series Woodburning Fireplace
87D0057 9


This fireplace does not weigh more than large pieces of furniture and can normally be located near a
load bearing wall without requiring additional foundations or supports. If however, the fireplace is to
be trimmed with a heavy stone or brick facing and hearth extension, be sure the supporting structure
is adequate.

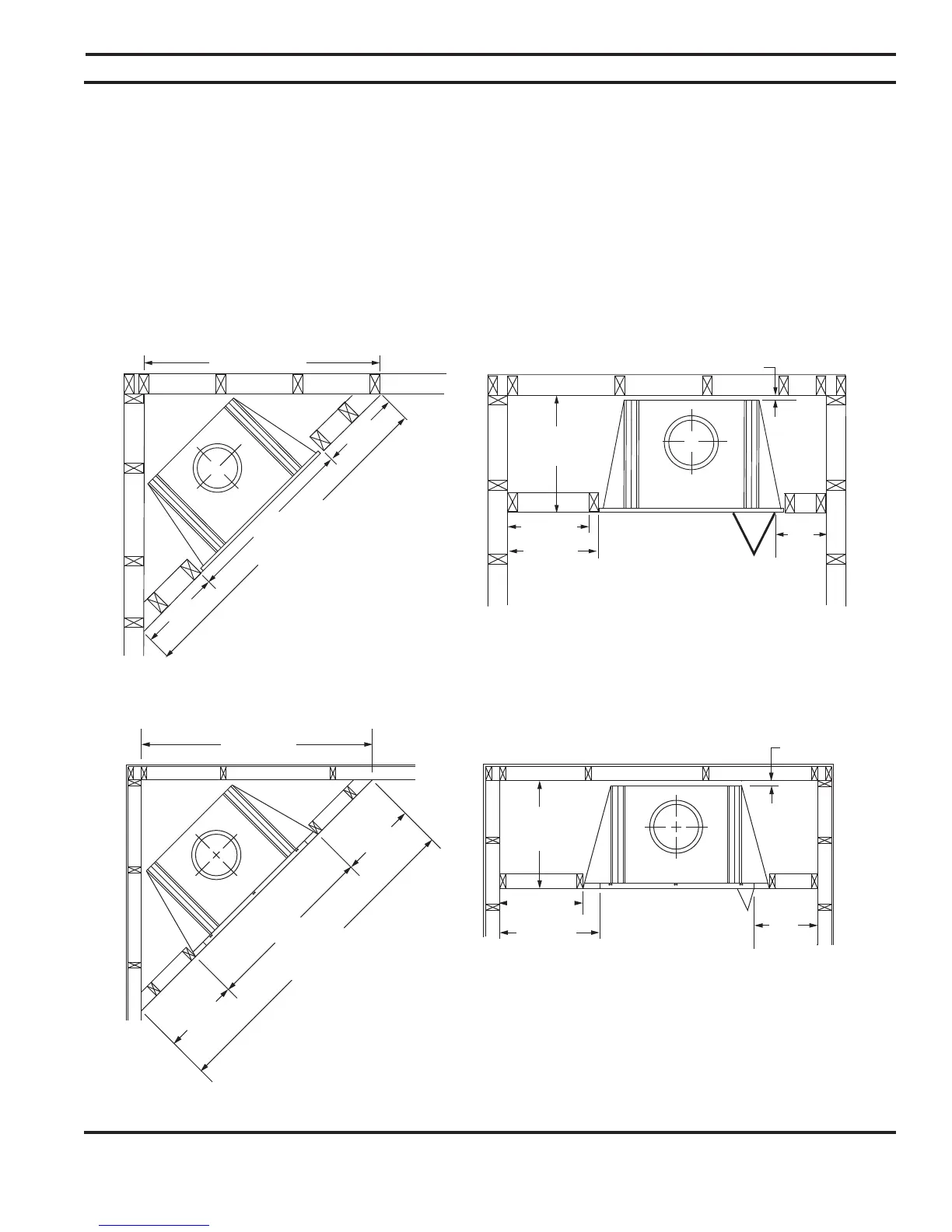

Figures 5, 6 and 7 provide dimensional details of the fireplace, required spacing to combustible walls,
and some suggested fireplace locations. When selecting a location, choose one that is away from
frequently opened doors, central heat outlets or returns, or other places where air movements may
disturb the airflow around the fireplace. Air turbulence near the fireplace may cause smoke to spill out
of the fireplace opening.
6456QE” Min.
536”
196”
Min.
926” Min.
19
6
”
Min.
**16"
Min.
156O”
Air Space
Clearance
27(6”
Min.
FP2237
SB65400 framing
2356O" Min.
*28” Min.
*Applies when Glass Doors are not installed
**Applies when Glass Doors are installed
Figure 6


606M” Minimum
19
6
”
Min.
476
”
85(6” Minimum
19
6”
Min.
27(6”
Minimum
2356O” Min.
*28” Min.
**16”
156O” Minimum Air Space Clearance
FP1879
opening dims
8/08
*Applies when Glass Doors are not installed
**Applies when Glass Doors are installed




Figure 5
FP37
FP1879
