Michi X3 - Page 4

4
Michi X3 Stereo Integrated Amplifier
1
2
3
6
5
0987 q- =
w
er
tyuiop [ ] \
4

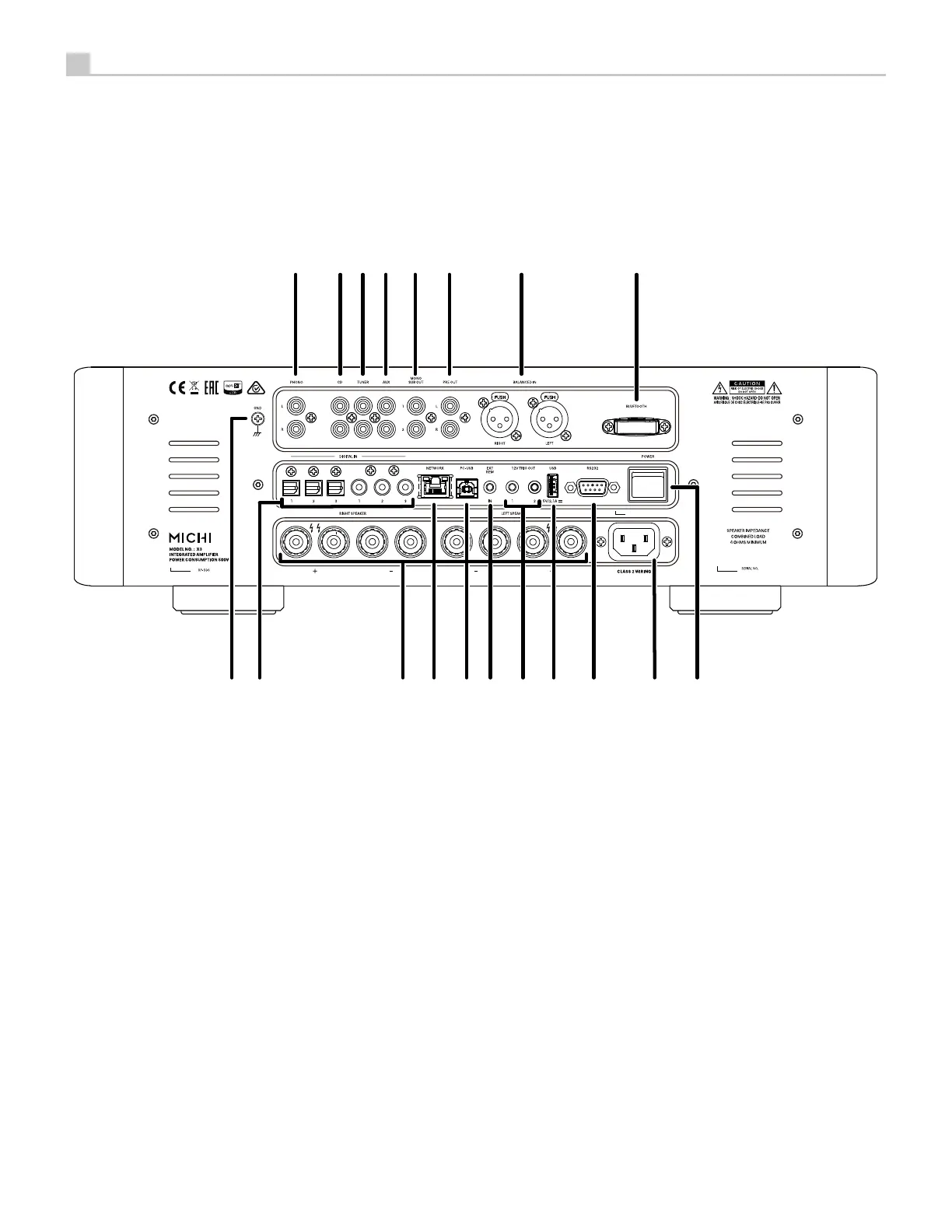

Figure 1_2: Controls and Connections
Commandes et Branchements
Bedienelemente und -Anschlüsse
Controles y Conexiones
Bedieningselementen en aansluitingen
Controlli e connessioni
Kontroller och anslutningar
Органы управления и разъемы
7
: Phono Input
Connect to a turntable.
8
: CD Input
9
: Tuner Input
0
: Aux Inputs
Analog “line level” inputs.
-
: Mono Sub Output
Connect to a subwoofer.
=
: Preamplifier Output
Connect to the integrated amplifier or power
amplifier.
q
: Balanced Input
w
: Bluetooth Antenna
Use for wireless streaming via Bluetooth.
e
: Ground Connector
Connect with a “ground” wire from the turntable.
r
: Digital Input
Connect to coaxial or optical PCM outputs of your
source component.
t
: Speaker Connectors
y
: Network Port
u
: PC-USB Input
i
: EXT REM Input Jack
Receive command codes from industry-standard
infrared receivers via hard-wired connections.
o
: 12V Trigger Output
Send a 12V trigger signal when powered on.
p
: USB Power Port
Use for software update and powering USB devices.
[
: RS232
Use for integration with automation systems.
]
: AC Power Inlet
\
: Master Power Switch
