System Connection
4
1.Connect one end of the translucent speaker cable to the audio input screw terminal on the back of
the sub speaker. the golden wire connect to red screw terminal. the silvery wire connect to black
screw terminal, the other end to the L-speaker audio output screw terminal on the back of the main
speaker.
2.Connect the RCA plug of the audio cable (one end with RCA plug, the other end with 3.5mm stereo
plug) to the audio input jacks of the main speaker, the 3.5mm stereo plug to the audio output jack
of PC or other audio equipment.
3. While connecting to such as CD player, MP3 or PC, etc., please connect the audio cable to PC
INPUT; while connecting to such as VCD or DVD player, etc., please connect the audio cable to
AUX INPUT.
4. Make sure all the cable are connected correctly, then connect the power cord to AC outlet.
Statement indicating that the socket-outlet shall be installed near the equipment and shall be
easily accessible.
The highest environmental temperature suitable for this product is 40℃.

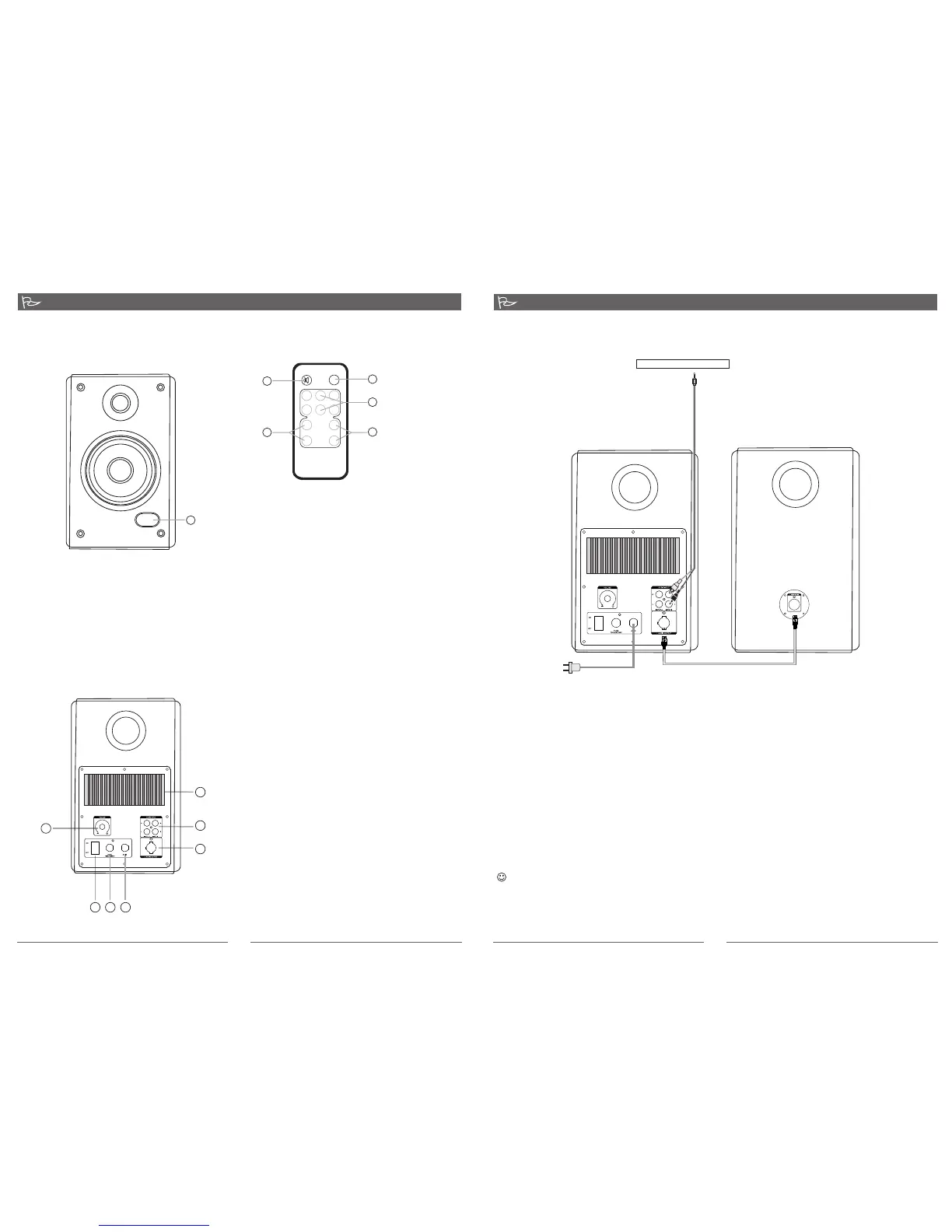

*Front View
*Back View
Function Instruction
1.
2.VOLUME CONTROL
Adjust the speaker system's volume to
your demanding level
3.AUDIO INUPUT
2.0 channel audio input jacks
4.OUTPUT
To L speaker
5.
6. FUSE.
7.POWER CORD
HEAT SINK
POWER
Press the switch ON or OFF
INPUTMUTE
TREBLE BASS
VOLUME
+
+
_
+
_
_
1
2
3
5
4
1. MUTE: press the key to make the system in
muting
2.
3. +/- key:
ress the key to
. BASS +/-key: a ress the
key to
. TREBLE+/-key: a treble ress
the key to
INPUT SELECT: press the key to select AUX or
PC audio input
VOLUME adjust the speaker system's
volume, p your demanding level
4 djust the bass volume, p
your demanding level
5 djust the volume, p
your demanding level
*Front View of Remote control
1.Remote Control Signal Receiving
Window and digital display
1
L
R
To sound card、CD、MP3,etc
*Please note the correct placement of speaker is shown in the above picture.
1
3
4
2
5
76
80- -97-0001-01 2008 11 19chuSOLO1C/2C
