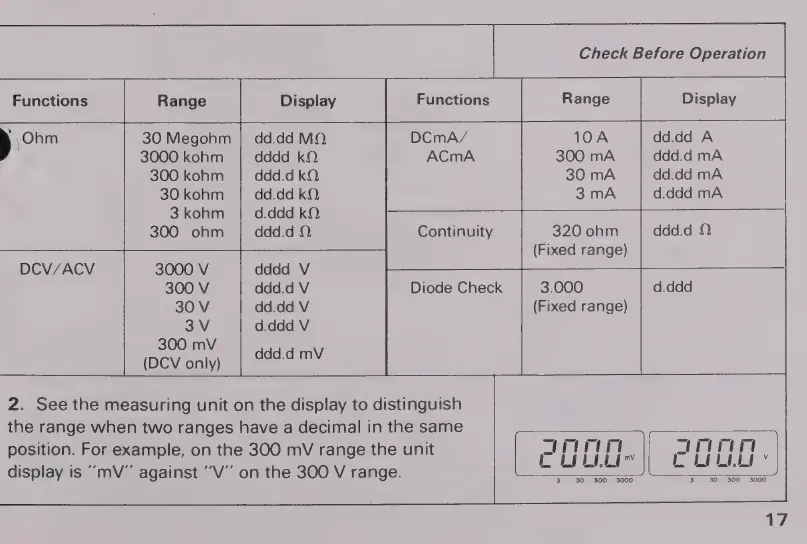

Micronta 22-185A - Page 17

Check Before Operation
Functions
Display
pcan
DCV/ACV
dddd V
300 V ddd.d V
30 V dd.dd V
3 V d.ddd V
300 mV
ddd.d MV
(DCV only)
dd.dd A
ddd.d mA
dd.dd mA
d.ddd mA
Range Display Functions Range
30 Megohm | dd.dd MQ, DCmA/ 10A
3000 kohm dddd kQ ACmA 300 mA
300 kohm ddd.d kQ 30 mA
30 kohm dd.dd kQ 3 MA
3 kohm d.ddd k
300 ohm ddd.d Q Continuity 320 ohm
(Fixed range)
ddd.d Q
2. See the measuring unit on the display to distinguish
the range when two ranges have a decimal in the same
position. For example, on the 300 mV range the unit
display is “mV” against “V” on the 300 V range.
Diode Check
3.000
(Fixed range)
d.ddd
ann
E ELLIN
3
30 300 3000
