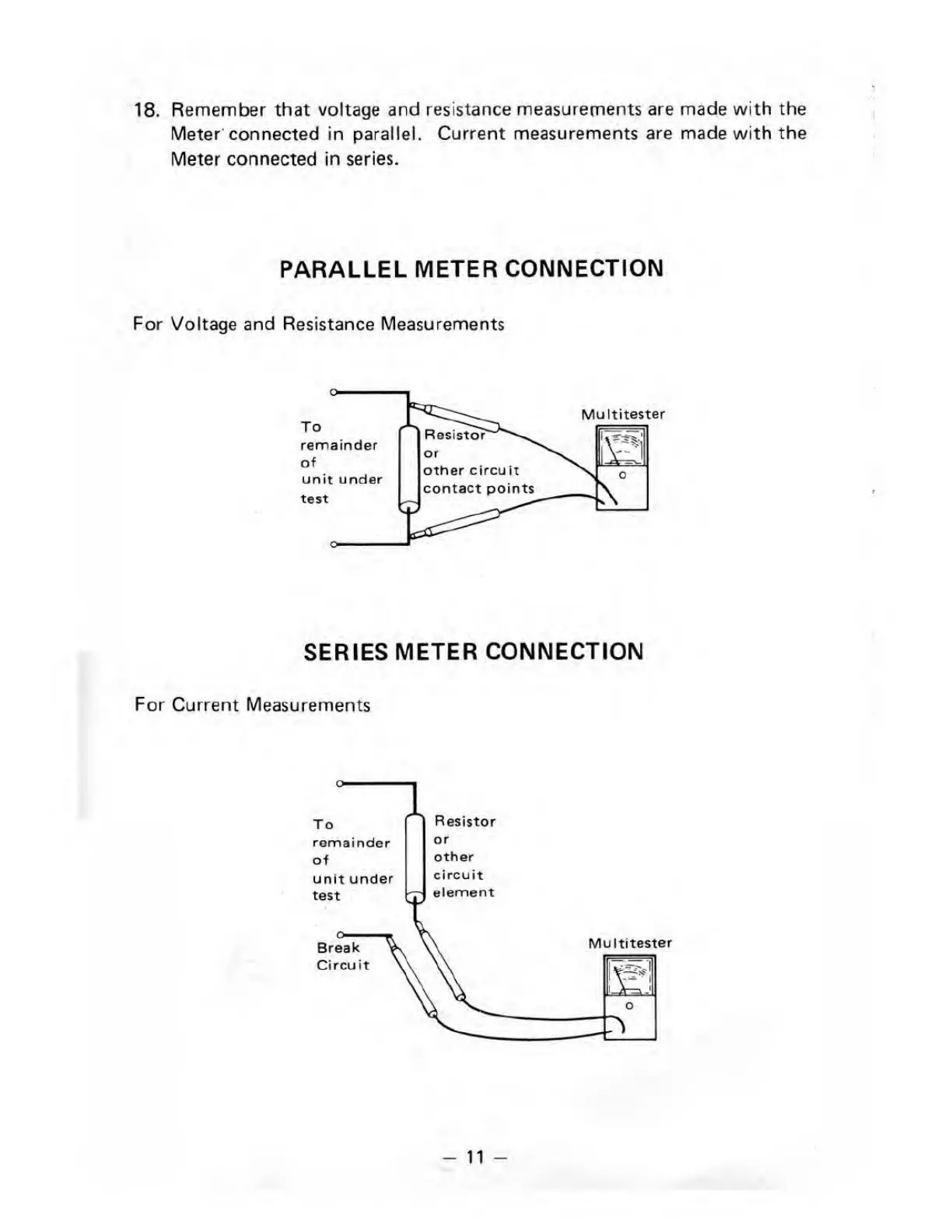

18.
Remember that voltage and resistance
measurements are made with the
Meter connected in parallel.
Current measurements are made with the
Meter connected in series.
PARALLEL
METER
CONNECTION
For
Voltage
and Resistance Measurements
To
remainder
of
unit under
test
SERIES
METER CONNECTION
For Current
Measurements
1
To
Resistor
remainder
or
of
other
unit under
circuit
test
element
Break
Circuit
