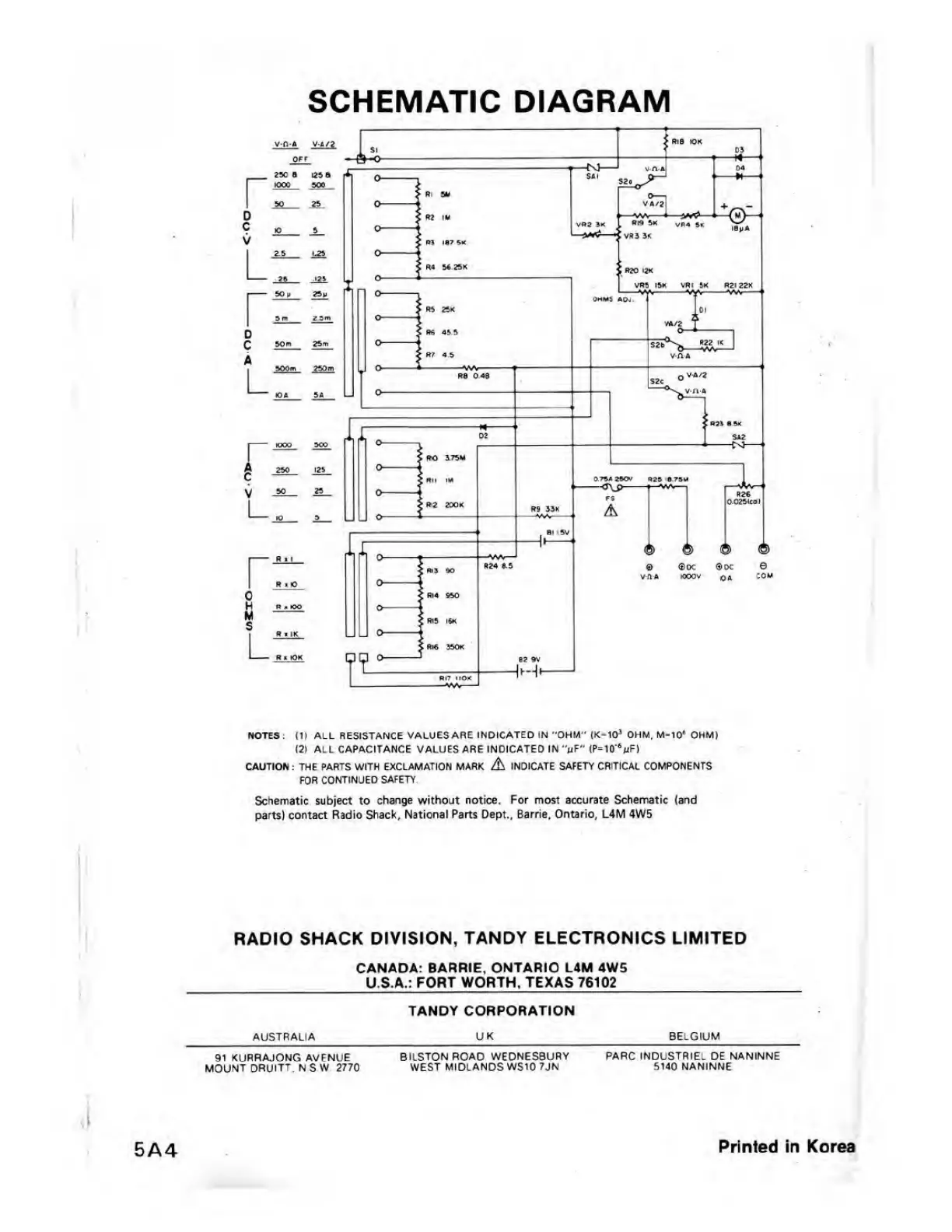

SCHEMATIC
DIAGRAM
NOTES: (1) ALL
RESISTANCE
VALUES ARE INDICATED
IN
"OHM" (K-10* OHM, M-10* OHM)
(2) ALL CAPACITANCE VALUES ARE INDICATED IN
"«F" (P=10'*jiF)
CAUTION
: THE
PARTS
WITH
EXCLAMATION MARK
A
INDICATE SAFETY
CRITICAL
COMPONENTS
FOR
CONTINUED SAFETY.
Schematic subject
to
change without
notice. For most accurate Schematic (and
parts) contact Radio Shack, National Parts Dept..
Barrie. Ontario, L4M 4W5
