MicroNX ELEC ENGINE SE-170C - Chapter 4. Installation; 4.1 Hanger Installation; 4.2 Motor Connection

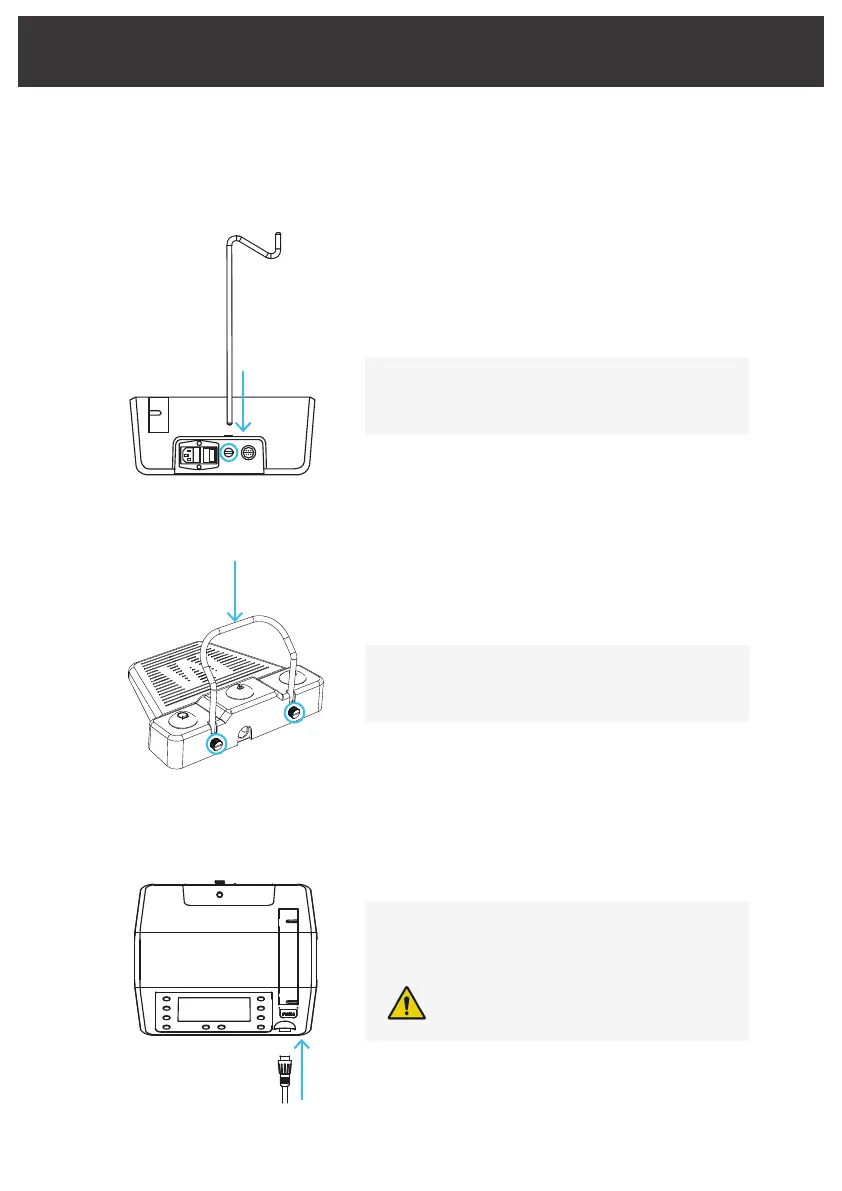

4.1 Installation of hanger and Foot switch hanger
4.2 Connection of Motor
① Insert Irrigation Hanger into Hanger hole.
② Fix by connecting Hanger bolt.
① Insert Foot switch hanger into Hanger hole.
② Fix by connecting Hanger bolt.
① Fit the motor connector into groove.
② Connect the motor connector CAP.
Be careful to fit into the connector
upon connection.
Chapter 4. Installation
4.1.1 Installation of hanger
4.1.2 Installation of Foot switch hanger
