PD-IM-7648 Evaluation System - User Guide
Copyright © 2013 Microsemi 6
Rev 1.0 / 25 Dec 13 Analog Mixed Signal Group
1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308

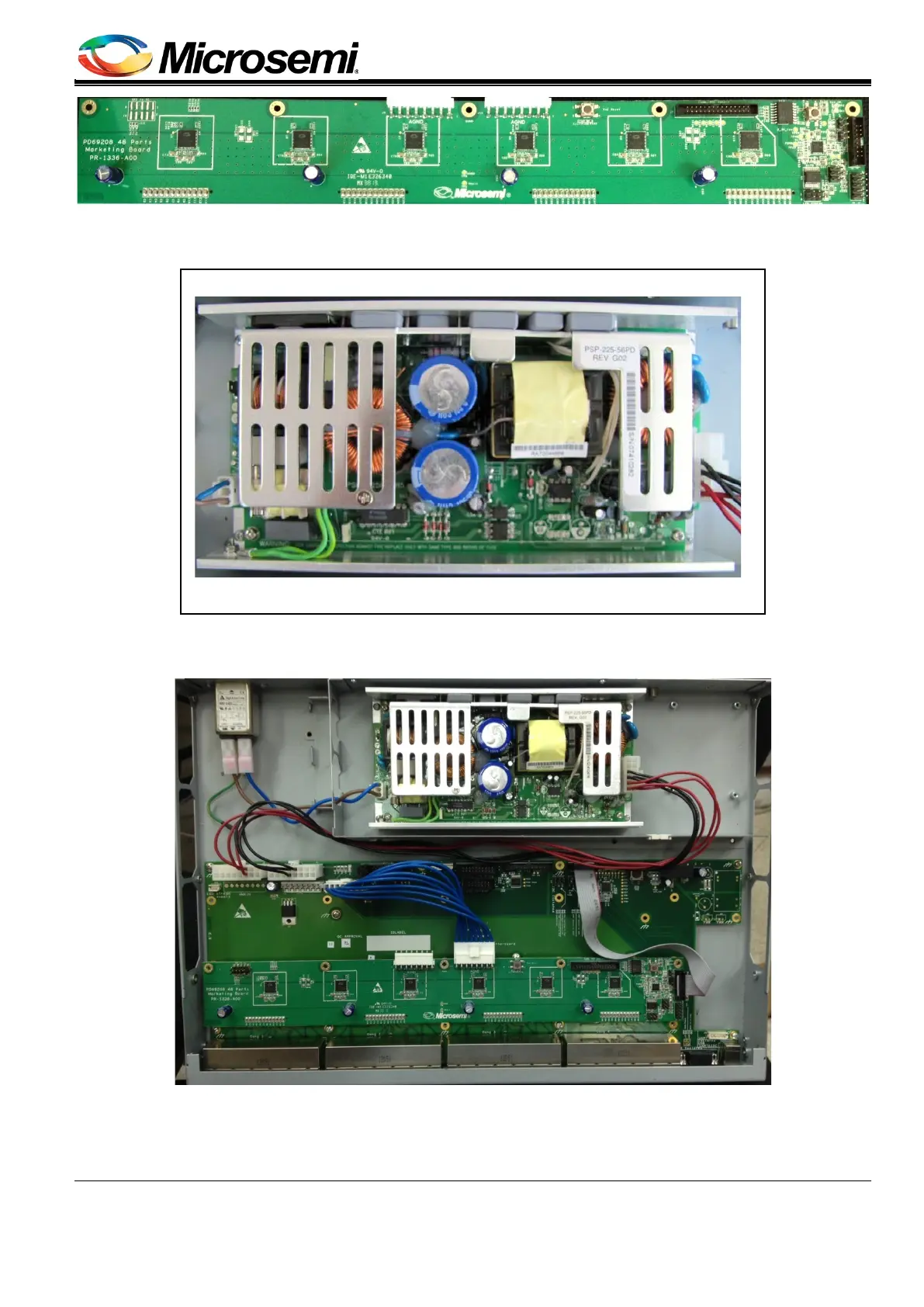

Figure 3: PD-DB-7648 (Daughterboard) Evaluation Board – General View
VMAIN power supply can output 225W. It supplies power via connector J6 (Vmain) and J7 (AGND).
Figure 4: Power Supply
The enclosure houses power supply, motherboard, and the daughterboard.
Figure 5: System in the Enclosure
