Microsoft Lumia 950 XL User Manual

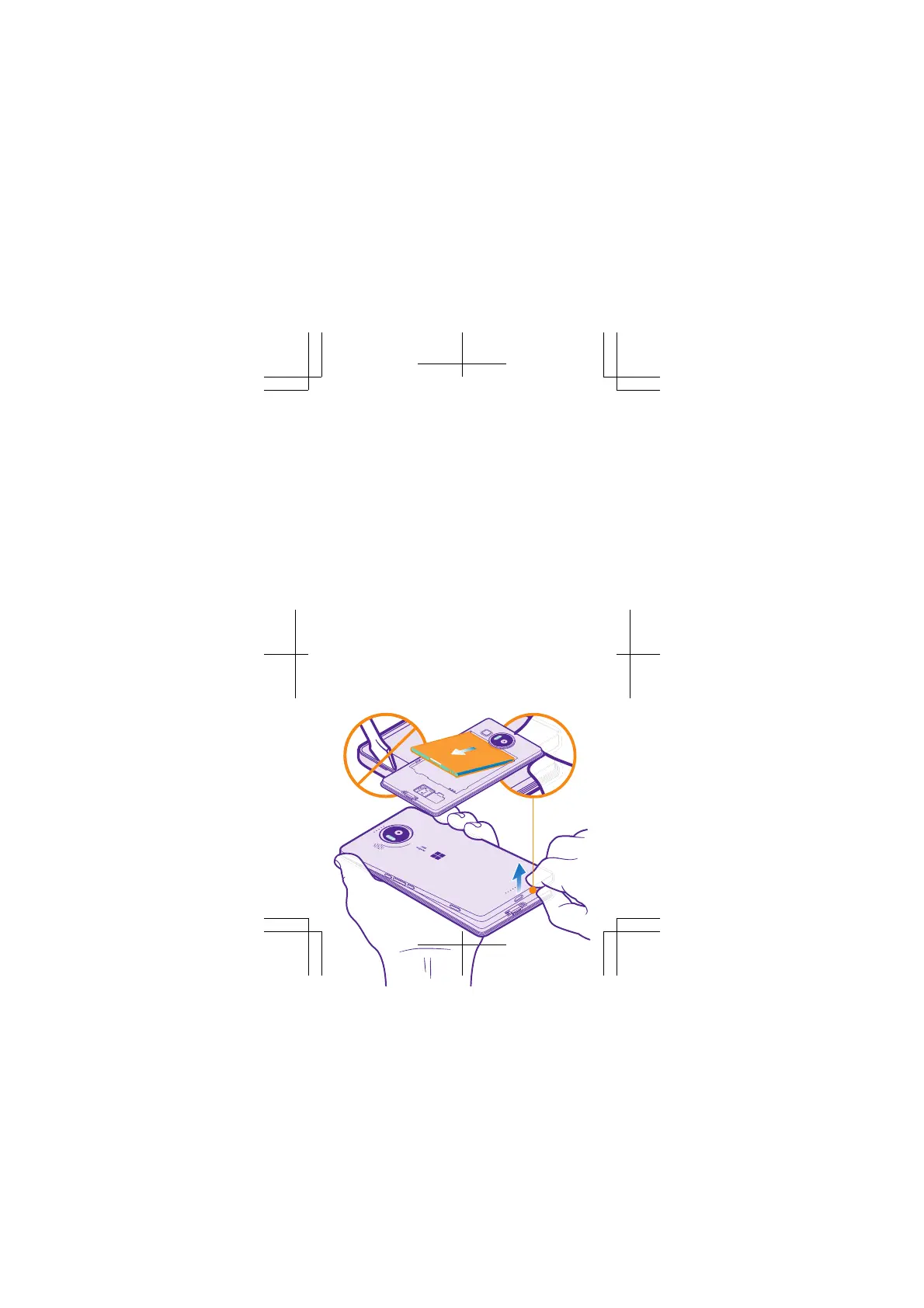

Remove the back cover and
battery
1. With the phone facing down, at the bottom right
corner of the phone, put your fingernail in the small
recess.
2. Press the middle of the back cover, bend the cover
open, and remove it.
3. If the battery is in, put your fingernail in the recess
on its bottom edge, and lift it out.

Microsoft Lumia 950 XL Specifications

General

RAM	3 GB
Internal Storage	32 GB
Expandable Storage	microSD, up to 200 GB
Battery	3340 mAh, removable
Operating System	Windows 10 Mobile
Dimensions	151.9 x 78.4 x 8.1 mm
Weight	165 g
SIM	Nano-SIM
Colors	Black, White
Network	GSM / HSPA / LTE
Display	5.7 inches, AMOLED, 1440 x 2560 pixels
Processor	Qualcomm Snapdragon 810
Rear Camera	20 MP, f/1.9, Carl Zeiss optics, OIS
Front Camera	5 MP, f/2.4
