Surface Hub 2S A/V Integration Guide
With Surface Hub 2S you can connect external devices such as a PC; mirror the display on
Surface Hub 2S to another device; and connect a wide variety of third-party peripherals
including video conference cameras, conference phones, and room system devices. This
document describes the ports, physical buttons, and configuration information essential for
connecting to Surface Hub 2S whether via wired, Wi-Fi, or Bluetooth methods. It also includes
best practice recommendations for key connectivity scenarios.
Ports and keypad overview
Figure 1 shows the location ports and physical buttons located on a keypad attached to the
underside of the device. Table 1 includes detailed descriptions of each element.

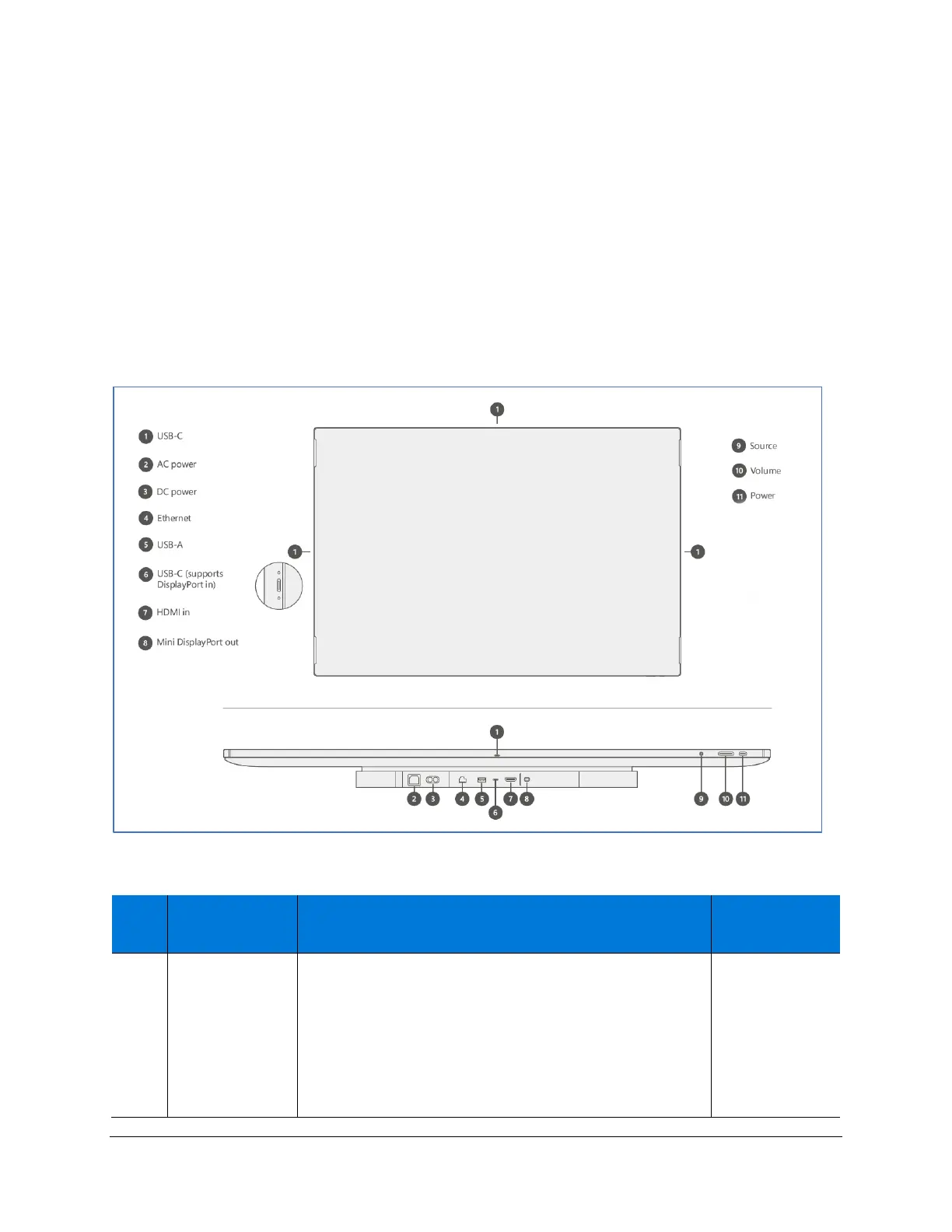

Figure 1. Front facing and underside view of I/O connections and physical buttons
Table 1. Surface Hub 2S port and keypad component reference
Key
Component
Description
Key
parameters
USB C
USB 3.0 Port
Use as a walk-up port for plugging in peripherals such as
thumb-drives. Guest ports are located on each side of the
device (4).
NOTE: This is the recommended port for connecting an
external camera. Additional camera mount features are
Type C
15 W Port
(5V/3A)
